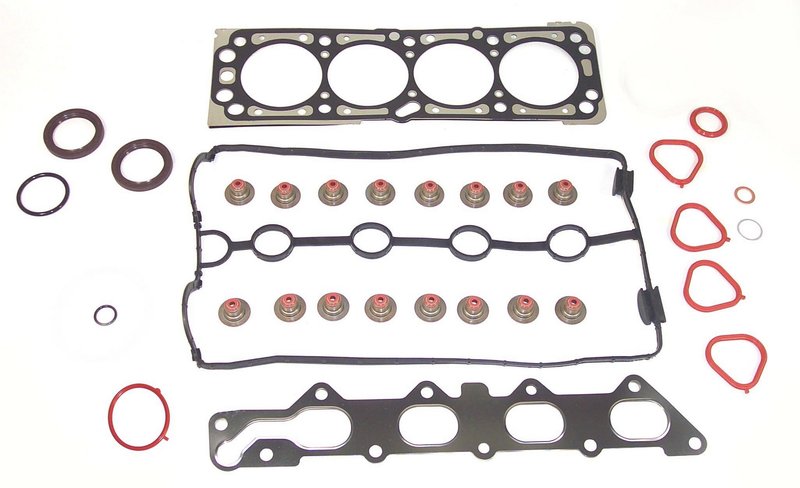

DJ Rock HGS325 Engine Cylinder Head Gasket Set

Engine Cylinder Head Gasket Set for Aveo

DJ Rock HGS325 is a premium engine cylinder head gasket set for 2004-2005 Chevrolet Aveo applications. It is built for top-end engine service and cylinder head replacement, with sealing components selected to maintain combustion pressure and control oil, coolant, and exhaust leaks.

For Chevrolet Aveo owners searching for a head gasket set for 2004-2005 Chevrolet Aveo, HGS325 provides the sealing parts needed for reassembly after cylinder head work. This premium set is designed around the 79 mm cylinder bore diameter and supports a proper seal at critical engine interfaces.

Key Features

• Premium-grade engine cylinder head gasket set
• Fits 2004-2005 Chevrolet Aveo, N/A
• 79 mm cylinder bore diameter
• Built for cylinder head replacement and top-end engine service
• Uses non-asbestos sealing materials
• Designed to meet or exceed OEM quality standards
• Cross-reference: MAHLE HS54700

Detailed Description

The DJ Rock HGS325 head gasket set is engineered for the sealing demands of the Chevrolet Aveo engine platform. It addresses the critical joint between the cylinder head and engine block, helping preserve compression while sealing oil and coolant passages during reassembly. The set is suited for 2004-2005 Chevrolet Aveo repairs where the cylinder head has been removed for service.

HGS325 is part of a professional-grade sealing solution line that uses modern gasket materials, including MLS, graphite, composite, rubber, silicone, EPDM, and Viton valve stem seal materials where applicable. This makes it a practical choice for technicians performing a head gasket replacement on a 2004-2005 Chevrolet Aveo, especially when a complete top-end reseal is required. Part number HGS325 is also a useful reference when sourcing a replacement engine cylinder head gasket set for this application.

Common Repair Uses

• Head gasket failure causing coolant loss or overheating
• Oil or coolant seepage at the cylinder head sealing surfaces
• Compression loss after engine overheating
• Top-end reseal during cylinder head removal
• Leak repair on a 2004-2005 Chevrolet Aveo engine

Installation Notes and Tips

Inspect the cylinder head and engine block for warpage, cracks, and surface damage before installation. Clean all mating surfaces thoroughly and follow the factory torque sequence and torque specifications during reassembly. If torque-to-yield head bolts are used on the engine, replace them rather than reuse them. Verify all sealing surfaces, coolant passages, and intake/exhaust interfaces are clean before final assembly.

Quality Assurance

DJ Rock HGS325 is manufactured with non-asbestos materials and is designed to meet or exceed OEM quality standards. The set is intended for professional engine repair work where consistent sealing performance is required.
