Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

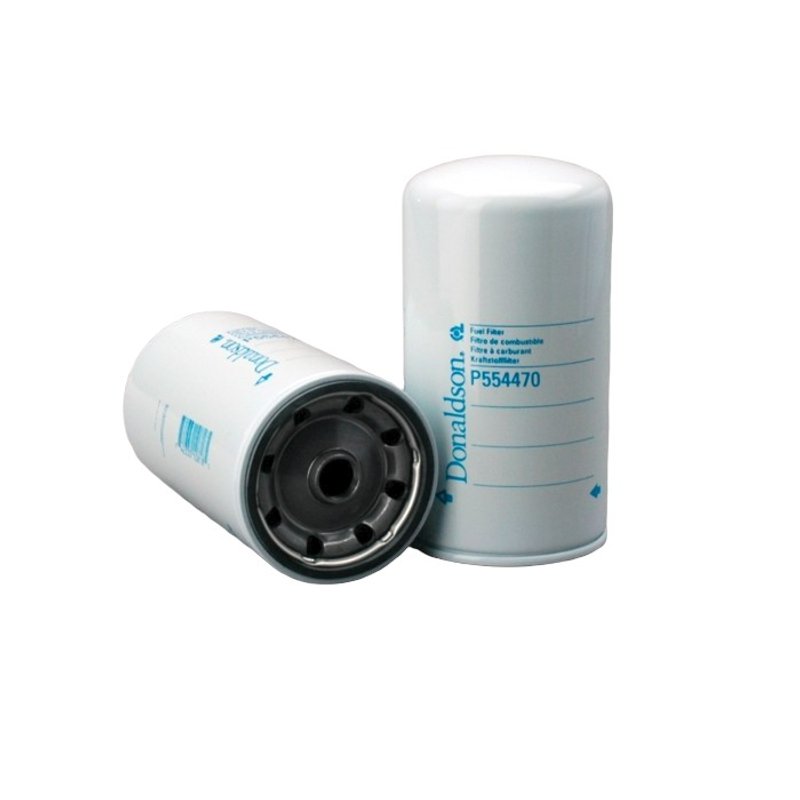

Donaldson P554470 Fuel Filter
| Brand | Donaldson P554470 |
|---|---|
| Collapse Burst | 100 |
| Efficiency 99% | 25 |
| Efficiency Test Std | Sae j1985 |
| Emulsified H2O Efficiency | 95.00 |
| Gasket ID | 3.56 |
| Gasket OD | 3.90 |
| Length | 202 |
| Media Type | Cellulose |
| Outer Diameter | 107.5 |
| Primary Application | Mack 483gb470m |
| Style | Spin-on |
| Thread Size | M22 x 1.5 |
| Type | Water separator |
| Fits | Mack · 15 vehicles |
Spin-on design. Simplifies routine fuel filter service and replacement.
Cellulose media. Provides fuel filtration in a water-separating filter design.
SAE J1985 tested. Built to published efficiency test standards for fuel filtration.
Cross-references Anchor 3588, Baldwin BF7656 and Focus Auto Parts 86588 for the same application. See all 19.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Filter Water Separator
Donaldson P554470 is a spin-on fuel filter water separator built for Mack diesel fuel systems. It uses cellulose media and a threaded spin-on design to support clean fuel delivery while separating water from the fuel stream.
Key Features
- Spin-on fuel filter water separator for service replacement
- Cellulose filter media for fuel filtration
- SAE J1985 efficiency test standard
- 100 collapse burst rating for structural strength
- Thread size M22 x 1.5 with 107.5 mm outer diameter
Detailed Description
This Donaldson fuel filter water separator is identified by part number P554470 and is specified for Mack applications including CL, CV, and CH models. The spin-on style simplifies routine filter service, while the cellulose media and water-separating design help maintain fuel quality in diesel systems. The P554470 also lists 95% emulsified water efficiency and 99% efficiency at 25 microns, making it a fitment-focused replacement for Mack fuel filtration service.
This part cross-references Baldwin BF7656 and Wagner Brake Z1011 for the same application.
What It Helps Address
- Water contamination in diesel fuel
- Restricted fuel flow from a loaded filter
- Reduced filtration performance from service wear
- Fuel system contamination concerns during maintenance
Installation Notes and Tips
Verify thread size, gasket dimensions, and overall filter dimensions before installation. Replace the filter during scheduled fuel system service and follow the vehicle service procedure for priming and leak checks after installation. Confirm the application against the Mack fuel filter water separator spin-on listing for the correct service match.
Quality Assurance
Donaldson publishes this filter to SAE J1985 efficiency test standards and specifies collapse burst and water-separation performance data for the P554470.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2003 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 2002 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 2001 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 2001 | Mack | CV | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 2000 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 1999 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 1998 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 1997 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 1996 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 1995 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 1994 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 1993 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 1992 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 1991 | Mack | CL | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
| 1989 | Mack | CH | 11.9L | -6 | DIESEL | Fuel filter, water separator spin-on |
