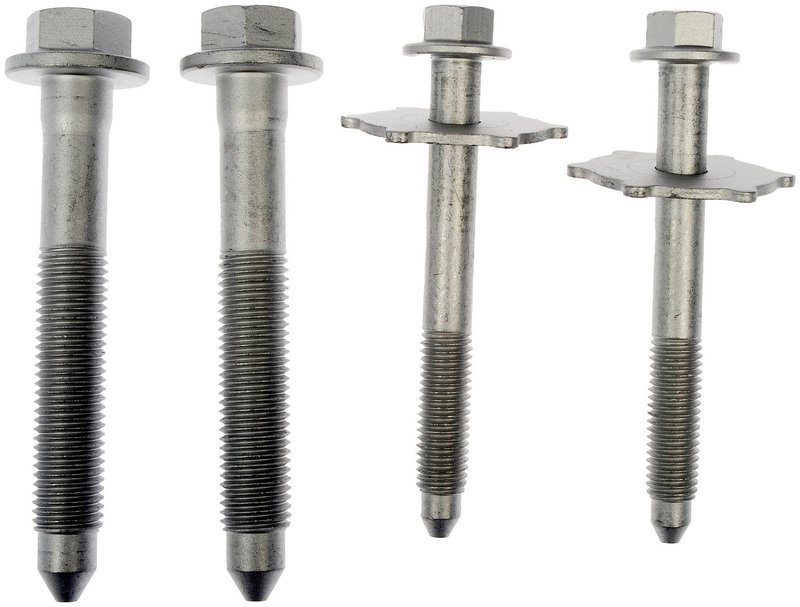

Dorman 13810 Engine Cradle Hardware Kit
| Brand | Dorman 13810 |
|---|---|
| Bolt Material | Acero |
| Bolt Material | Steel |
| Bolt Grade | 10.9 |
| Bolt Grade | 8.8 |
| Nut Included | No |
| Nut Included | Non |
| Mounting Position | Front subframe |
| Mounting Position | Subchasis delantero |
| Bolt Thread Type | Coarse |
| Bolt Thread Type | Grueso |
| Washer Thickness | 2.51 |
| Nut Thread Type | Coarse |
| Nut Thread Type | Grueso |
| Washer Outside Diameter | 41.92 |
| Washer Inside Diameter | 10.95 |
| Bolt Diameter | 11,82 mm |
| Bolt Diameter | 11.82 mm |
| Bolt Diameter | 15,96 mm |
| Bolt Diameter | 15.96 mm |
| Bolt Length | 116,5 mm |
| Bolt Length | 116.5 mm |
| Bolt Length | 130,31 mm |
| Bolt Length | 130.31 mm |
| Arandela incluida | Sí |
| Bolt Thread Dimension | M12x1.75 |
| Bolt Thread Dimension | M16x2.00 |
| Contenidos del paquete | 2 tornillos m12 x 1,75 con arandelas capturadas |
| Contenidos del paquete | 2 tornillos m16x2.00 |
| Dimensión de la rosca del perno | M12x1,75 |
| Dimensión de la rosca del perno | M16x2,00 |
| Fits | Ford and Lincoln · 15 vehicles |
OE-style replacement. Matches the fit of original hardware for a secure engine cradle mount.
Steel construction. Built with 10.9 and 8.8 grade bolts for dependable strength.
Captured washers included. Helps simplify installation and keeps hardware organized.
Cross-references 7N5Z00812A, 7N5Z812A and 8V4Z5D035A for the same application. See all 3.
Engine Cradle Hardware for Ford and Lincoln
Dorman 13810 is an engine cradle hardware kit built to replace missing or damaged original fasteners at the front subframe. It is engineered to match OE fit and secure the engine cradle on specified Ford and Lincoln vehicles, including the Ford Escape, Lincoln MKC, and Ford Focus.
- Direct replacement hardware for the front subframe
- Steel bolt construction
- High-strength bolt grades: 8.8 and 10.9
- Coarse thread design for specified applications
- Captured washers included on applicable bolts
- OE-style fit for collision or corrosion repair
Fitment Details
- Fits 2013-2019 Ford Escape, N/A
- Fits 2015-2019 Lincoln MKC, N/A
- Fits 2016-2018 Ford Focus, N/A
Product Description
Built for front subframe service, Dorman 13810 restores the hardware used to mount the engine cradle securely on the vehicle. The kit includes steel bolts with coarse threads and specified metric thread dimensions, including M12x1.75 and M16x2.00 applications, to match the original hardware layout on the listed Ford Escape, Lincoln MKC, and Ford Focus platforms. This part cross-references Ford OE numbers 7N5Z00812A and 8V4Z5D035A for the same application.
Common Repair Uses
- Replacing corroded cradle bolts during underbody repair
- Restoring missing front subframe fasteners after collision work
- Correcting stripped or damaged original mounting hardware
- Addressing looseness at the engine cradle mounting points
- Supporting proper reassembly after subframe removal
Installation Notes
Verify thread size, bolt length, and mounting position before installation. Clean the mounting surfaces and inspect the cradle and frame threads for damage or corrosion before tightening to the vehicle manufacturer’s torque specification. Use the correct fastener locations for the front subframe on the applicable Ford Escape, Lincoln MKC, or Ford Focus model year.
Quality Assurance
Dorman designs this hardware to match the fit of original components and to restore secure engine cradle mounting on the specified vehicles. Part number 13810 is built for OE-style replacement use in collision repair and corrosion-related service.
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2019 | Ford | Escape | — | — |
| 2019 | Lincoln | MKC | — | — |
| 2018 | Ford | Escape | — | — |
| 2018 | Ford | Focus | RS | — |
| 2018 | Lincoln | MKC | — | — |
| 2017 | Ford | Escape | — | — |
| 2017 | Ford | Focus | RS | — |
| 2017 | Lincoln | MKC | — | — |
| 2016 | Ford | Escape | — | — |
| 2016 | Ford | Focus | RS | — |
| 2016 | Lincoln | MKC | — | — |
| 2015 | Ford | Escape | — | — |
| 2015 | Lincoln | MKC | — | — |
| 2014 | Ford | Escape | — | — |
| 2013 | Ford | Escape | — | — |
