Home› Suspension > Hardware, Fasteners and Fittings› Dorman 13814 Suspension Control Arm Bolt Kit - Front Lower Inner
Dorman 13814 Suspension Control Arm Bolt Kit - Front Lower InnerOE Quality 60-Day Returns
Part #: 13814

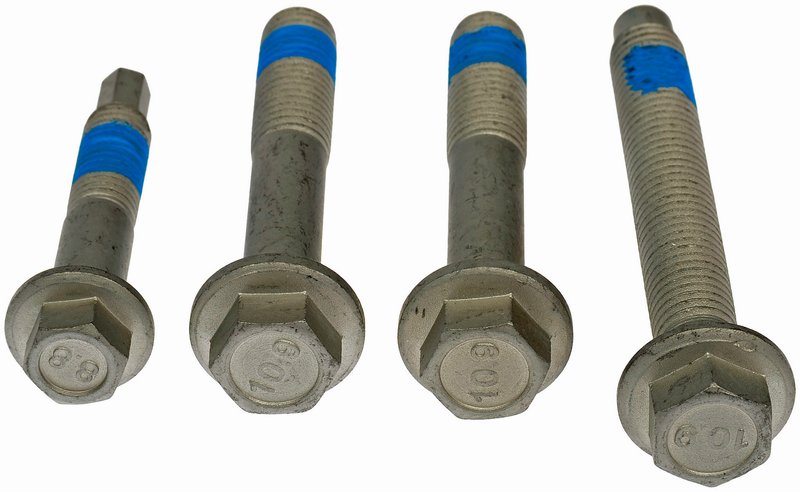

Dorman 13814 Suspension Control Arm Bolt Kit - Front Lower Inner

Front Lower Inner
42 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$26.65Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Ford and Lincoln, C-Max, Escape, Focus, Fusion, MKC, MKZ, and Transit Connect
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Suspension Control Arm Bolt Kit options

Dorman 13814 Suspension Control Arm Bolt Kit

The Dorman 13814 Suspension Control Arm Bolt Kit provides the hardware needed to secure the control arm to the chassis system. Built with high-quality materials and OE-style dimensions, it supports a proper front suspension repair on select Ford, Lincoln, and Transit Connect applications.

Key Features

  • Suspension control arm bolt kit for chassis-to-control-arm attachment
  • High-quality hardware for longer service life
  • Hex head drive for standard service tools
  • Coarse thread design for the listed applications
  • Bolt grades 10.9 and 8.8
  • Part number 13814 for easy identification

Detailed Product Overview

Dorman 13814 is a suspension hardware repair solution for front lower inner control arm mounting points. It is engineered around the listed thread sizes and lengths, including M12 and M14 fasteners, to match the service requirements of vehicles such as the Ford Escape, Ford Focus, Ford Fusion, Ford C-Max, Ford Transit Connect, Lincoln MKC, and Lincoln MKZ. If you are replacing worn or damaged suspension fasteners on a Ford Escape front lower inner control arm or servicing a Ford Focus front lower inner suspension mount, this kit gives you the correct hardware format for the job. This part cross-references Ford OE numbers W711107S442 and W715485S442 for the same application.

What It Helps Repair

  • Loose or damaged control arm mounting hardware
  • Corrosion-related fastener replacement during suspension service
  • Improper clamping at the front lower inner control arm point
  • Noise or movement caused by worn suspension bolts
  • Service delays when original hardware is no longer reusable

Installation Notes and Tips

  • Fits 2012-2020 Ford Transit Connect, front lower inner
  • Fits 2013-2019 Ford Escape, front lower inner
  • Fits 2015-2019 Lincoln MKC, front lower inner
  • Fits 2015-2018 Ford C-Max, front lower inner
  • Fits 2012-2018 Ford Focus, front lower inner
  • Fits 2014-2016 Ford Fusion, front lower inner
  • Fits 2012-2016 Lincoln MKZ, front lower inner
  • Fits 2013-2014 Ford C-Max, front lower inner
  • Verify thread size, bolt length, and mounting location before installation
  • Use the correct torque specification for the vehicle and suspension position

Quality Assurance

Dorman manufactures replacement hardware with application-specific dimensions and material selection for service durability. Part number 13814 is built to support a proper suspension repair on the listed Ford and Lincoln front lower inner control arm applications.

BrandDorman
Part Number13814
Bolt Grade10.9
Bolt Grade8.8
Thread Maximum Diameter14
Thread Minimum Diameter12
Bolt Maximum Length115
Bolt Minimum Length82
Thread TypeCoarse
Thread TypeGrueso
Nylon Insert IncludedNo
Nylon Insert IncludedNon
Head Drive TypeHex
Head Drive TypeHexagonal
Under Head Length102
Under Head Length70
Under Head Length84
Contenidos del paquete1 perno m12-1.75 x 70mm
Contenidos del paquete1 perno m14-2 x 115mm
Contenidos del paquete2 pernos m14-2 x 97mm
Package Contents1 m12-1.75 x 70mm bolt
Package Contents1 m14-2 x 115mm bolt
Package Contents2 m14-2 x 97mm bolts

This part fits 42 vehicles. Search below:

YearMakeModelPositionNotes
2020FordTransit ConnectFront Lower InnerM14 x 85MM
2019FordEscapeFront Lower InnerM14 x 85MM
2019FordTransit ConnectFront Lower InnerM14 x 85MM
2019LincolnMKCFront Lower InnerM12 x 55MM
2018FordC-MaxFront Lower InnerM14 x 95MM
2018FordEscapeFront Lower InnerM14 x 85MM
2018FordFocusFront Lower InnerM14 x 85MM
2018FordTransit ConnectFront Lower InnerM14 x 85MM
2018LincolnMKCFront Lower InnerM12 x 55MM
2017FordC-MaxFront Lower InnerM14 x 95MM
2017FordEscapeFront Lower InnerM14 x 85MM
2017FordFocusFront Lower InnerM14 x 85MM
2017FordTransit ConnectFront Lower InnerM14 x 85MM
2017LincolnMKCFront Lower InnerM12 x 55MM
2016FordC-MaxFront Lower InnerM14 x 95MM
2016FordEscapeFront Lower InnerM14 x 85MM
2016FordFocusFront Lower InnerM14 x 85MM
2016FordFusionFront Lower InnerM14 x 85MM
2016FordTransit ConnectFront Lower InnerM14 x 85MM
2016LincolnMKCFront Lower InnerM12 x 55MM
2016LincolnMKZFront Lower InnerM14 x 85MM
2015FordC-MaxFront Lower InnerM14 x 95MM
2015FordEscapeFront Lower InnerM14 x 85MM
2015FordFocusFront Lower InnerM14 x 85MM
2015FordFusionFront Lower InnerM14 x 85MM
2015FordTransit ConnectFront Lower InnerM14 x 85MM
2015LincolnMKCFront Lower InnerM12 x 55MM
2015LincolnMKZFront Lower InnerM14 x 85MM
2014FordC-MaxFront Lower InnerM14 x 85MM
2014FordEscapeFront Lower InnerM14 x 85MM
2014FordFocusFront Lower InnerM14 x 85MM
2014FordFusionFront Lower InnerM14 x 85MM
2014FordTransit ConnectFront Lower InnerM14 x 85MM
2014LincolnMKZFront Lower InnerM14 x 85MM
2013FordC-MaxFront Lower InnerM14 x 85MM
2013FordEscapeFront Lower InnerM14 x 85MM
2013FordFocusFront Lower InnerM14 x 85MM
2013FordTransit ConnectFront Lower InnerM14 x 85MM
2013LincolnMKZFront Lower InnerM14 x 85MM
2012FordFocusFront Lower InnerM14 x 85MM
2012FordTransit ConnectFront Lower InnerM14 x 85MM
2012LincolnMKZFront Lower InnerM14 x 85MM

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

W711107S442W715485S442W716075S442

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
