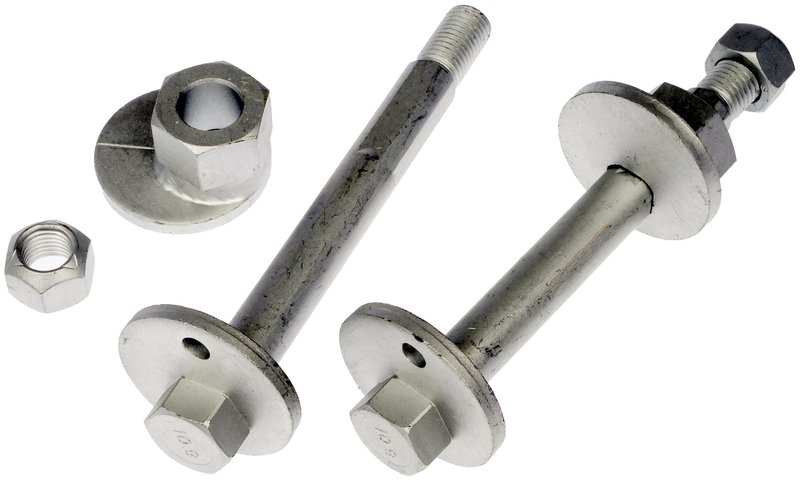

Dorman 13817 Alignment Caster / Camber Cam Bolt Kit - Front
| Brand | Dorman 13817 |
|---|---|
| Position | Front |
| Bolt Head Type | Hex |
| Bolt Head Type | Hexagonal |
| Bolt Material | Acero |
| Bolt Material | Steel |
| Integral Washer Outside Diameter | 54 |
| Bolt Grade | 10.9 |
| Bolt Thread Type | Media |
| Bolt Thread Type | Medium |
| Bolt Color | Plateado |
| Bolt Color | Silver |
| Universal Or Specific Fit | Específico |
| Universal Or Specific Fit | Specific |
| Bolt Thread Length | 25 |
| Washer Material | Acero |
| Washer Material | Steel |
| Integral Washer Inside Diameter | 19 |
| Bolt Length | 169 |
| Bolt Thread Diameter | 16 mm |
| Buje del brazo de control incluido | No |
| Camber Degrees | 2 |
| Contenidos del paquete | 2 tornillos |
| Contenidos del paquete | 2 tuercas |
| Contenidos del paquete | 2 tuercas excéntricas |
| Control Arm Bushing Included | No |
| Control Arm Bushing Included | Non |
| Diámetro de rosca del perno | 16mm |
| Package Contents | 2 bolts |
| Package Contents | 2 eccentric nuts |
| Package Contents | 2 nuts |
| Shims Included | No |
| Fits | Dodge and Ram · 40 vehicles |
OE-style replacement. Precision-engineered and rigorously tested for reliable replacement performance.
Hex bolt design. Steel construction with a 10.9 grade for secure fastening strength.
Camber adjustment kit. Includes eccentric nuts for alignment correction.
Cross-references Delphi TAL10024, Dorman - HELP 82420 and Mevotech Supreme MS250288 for the same application. See all 12.
Dorman 13817 Alignment Cam Bolt Kit
Dorman 13817 is an alignment caster and camber cam bolt kit for front suspension service on select Ram and Dodge Ram trucks. It is precision-engineered and tested as a direct replacement for the original equipment hardware used to set alignment angles on specific vehicles.
Key Features
- Alignment caster and camber cam bolt kit for front suspension adjustment
- Specific fit for select Ram 1500, Ram 1500 Classic, Ram 2500, Ram 3500, and Dodge Ram 1500/2500/3500 applications
- Hex and hexagonal bolt head design for serviceability
- 16 mm bolt thread diameter with 25 mm thread length
- Steel bolt and washer construction with silver finish
- Grade 10.9 hardware for OE-style replacement strength
- 2-degree camber specification
Detailed Description
This Dorman 13817 cam bolt kit is built for front alignment correction on Ram and Dodge Ram trucks where caster and camber adjustment is required. The hardware uses a 16 mm threaded steel bolt, integral steel washer, and eccentric nut design to help restore proper suspension geometry after wear, repairs, or alignment service. It is a specific-fit replacement for 2006-2024 Ram and Dodge Ram front applications listed below, including Ram 1500, Ram 1500 Classic, Ram 2500, and Ram 3500. This part cross-references MOOG Chassis Products K100390 for the same application.
Vehicle Fitment
- Fits 2011-2024 Ram 1500, front
- Fits 2019-2024 Ram 1500 Classic, front
- Fits 2011-2013 Ram 2500, front
- Fits 2011-2012 Ram 3500, front
- Fits 2006-2010 Dodge Ram 1500, front
- Fits 2006-2010 Dodge Ram 2500, front
- Fits 2006-2010 Dodge Ram 3500, front
Common Repair Uses
- Front-end alignment after suspension work
- Correction of caster or camber settings that are out of specification
- Replacement of worn, seized, or damaged cam hardware
- Restoration of proper steering feel after front suspension service
- Service on Ram and Dodge Ram trucks with alignment adjustment needs
Installation Notes and Tips
Install on the front suspension only for the listed Ram and Dodge Ram applications. Alignment should be checked and adjusted after installation to verify caster and camber settings. Because this is specific-fit hardware, confirm vehicle year, model, and front position before service. Dorman 13817 is commonly selected when OE cam bolts are worn, corroded, or no longer hold alignment settings securely.
Quality Assurance
Dorman engineers and tests this alignment caster and camber cam bolt kit as an OE-style replacement for the specified vehicles. The part is built to match the original hardware function for front alignment service on Ram and Dodge Ram trucks.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Ram | 1500 | Front | — |
| 2024 | Ram | 1500 Classic | Front | — |
| 2023 | Ram | 1500 | Front | — |
| 2023 | Ram | 1500 Classic | Front | — |
| 2022 | Ram | 1500 | Front | — |
| 2022 | Ram | 1500 Classic | Front | — |
| 2021 | Ram | 1500 | Front | — |
| 2021 | Ram | 1500 Classic | Front | — |
| 2020 | Ram | 1500 | Front | — |
| 2020 | Ram | 1500 Classic | Front | — |
| 2019 | Ram | 1500 | Front | — |
| 2019 | Ram | 1500 Classic | Front | — |
| 2018 | Ram | 1500 | Front | — |
| 2017 | Ram | 1500 | Front | — |
| 2016 | Ram | 1500 | Front | — |
| 2015 | Ram | 1500 | Front | — |
| 2014 | Ram | 1500 | Front | — |
| 2013 | Ram | 1500 | Front | — |
| 2013 | Ram | 2500 | Front | — |
| 2012 | Ram | 1500 | Front | — |
| 2012 | Ram | 2500 | Front | — |
| 2012 | Ram | 3500 | Front | — |
| 2011 | Ram | 1500 | Front | — |
| 2011 | Ram | 2500 | Front | — |
| 2011 | Ram | 3500 | Front | — |
| 2010 | Dodge | Ram 1500 | Front | — |
| 2010 | Dodge | Ram 2500 | Front | — |
| 2010 | Dodge | Ram 3500 | Front | — |
| 2009 | Dodge | Ram 1500 | Front | — |
| 2009 | Dodge | Ram 2500 | Front | — |
| 2009 | Dodge | Ram 3500 | Front | — |
| 2008 | Dodge | Ram 1500 | Front | — |
| 2008 | Dodge | Ram 2500 | Front | — |
| 2008 | Dodge | Ram 3500 | Front | — |
| 2007 | Dodge | Ram 1500 | Front | — |
| 2007 | Dodge | Ram 2500 | Front | — |
| 2007 | Dodge | Ram 3500 | Front | — |
| 2006 | Dodge | Ram 1500 | Front | — |
| 2006 | Dodge | Ram 2500 | Front | — |
| 2006 | Dodge | Ram 3500 | Front | — |
