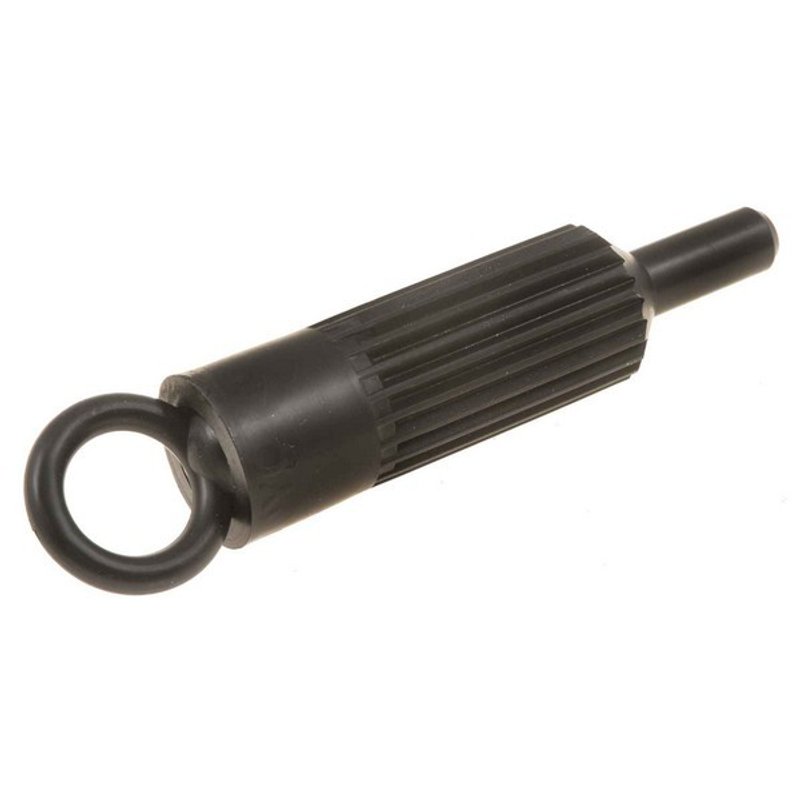

Dorman 14507 Clutch Alignment Tool

Overview of the Dorman 14507 Clutch Alignment Tool

The Dorman 14507 clutch alignment tool is designed specifically for select Toyota models, including the 4Runner, Celica, Corona, Cressida, Pickup, Previa, Supra, and Van. This tool ensures precise alignment of the clutch during installation, helping to facilitate a smooth and accurate fit.

• Material: Durable black plastic construction
• Spline Quantity: 21 splines for exact fitment
• Spline Diameter: 1.125 inches for compatibility with specific Toyota clutches
• Color: Black for easy identification
• Package Contents: Includes one clutch alignment tool

Detailed Product Description

The Dorman 14507 clutch alignment tool is engineered with a 21-spline design and a 1.125-inch spline diameter, tailored to match the clutch assemblies of various Toyota vehicles. Made from sturdy plastic, this tool provides the necessary rigidity and precision to align the clutch disc with the pressure plate and flywheel during installation. Its specific fitment ensures compatibility with Toyota models such as the 4Runner, Celica, Corona, Cressida, Pickup, Previa, Supra, and Van, making it a reliable choice for professional mechanics and experienced DIYers working on these vehicles.

Applications and Common Issues Addressed

• Ensures proper clutch disc alignment to prevent uneven wear
• Facilitates smooth clutch installation and reduces installation errors
• Helps avoid clutch chatter and engagement problems caused by misalignment
• Prevents damage to transmission input shaft during clutch assembly
• Supports accurate alignment for clutch replacement or repair on compatible Toyota models

Installation Notes and Tips

• Confirm vehicle compatibility with the Dorman 14507 before use
• Use the tool to center the clutch disc on the flywheel prior to tightening the pressure plate bolts
• Handle the tool carefully to avoid damage to the plastic splines
• Remove the alignment tool once the clutch assembly is securely fastened

Quality Assurance and Warranty

Dorman manufactures the 14507 clutch alignment tool to meet industry standards for durability and precision. While specific warranty details are not provided, Dorman products typically undergo quality control processes to ensure reliable performance. This tool is designed to provide consistent alignment accuracy for Toyota clutch installations, supporting professional repair and maintenance tasks.
