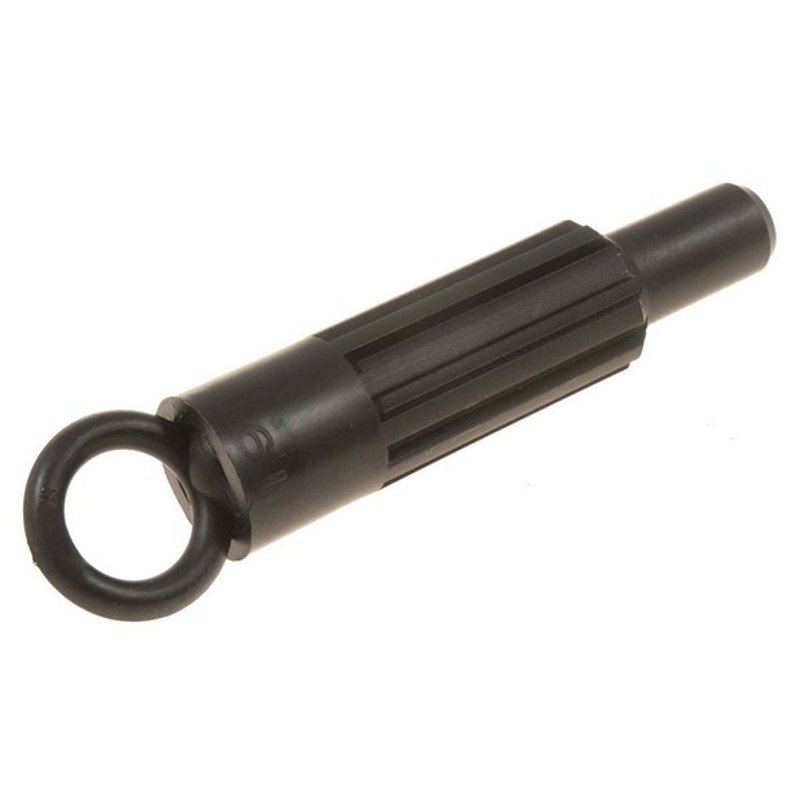

Dorman 14519 Clutch Alignment Tool

Overview of the Dorman 14519 Clutch Alignment Tool

The Dorman 14519 clutch alignment tool is designed specifically for Ford F-150, F-250, and F-350 models. Made from durable black plastic, this tool ensures precise clutch alignment during installation or repair, helping to streamline the clutch replacement process.

• Material: Durable black plastic construction
• Spline Quantity: 10 splines for accurate fit
• Spline Diameter: 1.063 inches for precise alignment
• Specific fit for Ford F-150, F-250, and F-350 models
• Includes one clutch alignment tool per package

Detailed Product Description

The Dorman 14519 clutch alignment tool is engineered to match the spline specifications of select Ford trucks, including the F-150, F-250, and F-350. Its 10-spline design with a 1.063-inch diameter ensures a secure and exact fit between the clutch disc and the pilot bearing. Constructed from sturdy black plastic, the tool provides reliable performance without damaging clutch components during installation. This specific-fit tool helps reduce installation errors and improves the overall efficiency of clutch replacement jobs on compatible Ford models.

Applications and Common Issues Addressed

• Aligning clutch discs during replacement on Ford F-150, F-250, and F-350 vehicles
• Preventing clutch misalignment that can cause premature wear or vibration
• Facilitating smooth transmission input shaft engagement
• Reducing installation time by providing a precise alignment guide
• Helping avoid damage to clutch components during assembly

Installation Notes and Tips

• Ensure the tool’s 10-spline end matches the clutch disc spline pattern before use
• Insert the tool through the clutch disc and into the pilot bearing to center the disc
• Use gentle pressure to avoid damaging the plastic tool or clutch components
• Remove the tool carefully once the clutch pressure plate is secured
• Verify clutch alignment visually and by feel before final assembly

Quality Assurance and Warranty

Dorman manufactures the 14519 clutch alignment tool to meet OEM specifications for fit and function on Ford F-150, F-250, and F-350 models. The plastic material is selected for durability and resistance to wear during installation. While specific warranty details are not provided, Dorman products typically come with a limited warranty covering defects in material and workmanship. This tool is designed to provide consistent performance for professional and DIY clutch service applications.
