Dorman 14522 Clutch Alignment ToolOE Quality 60-Day Returns
Part #: 14522

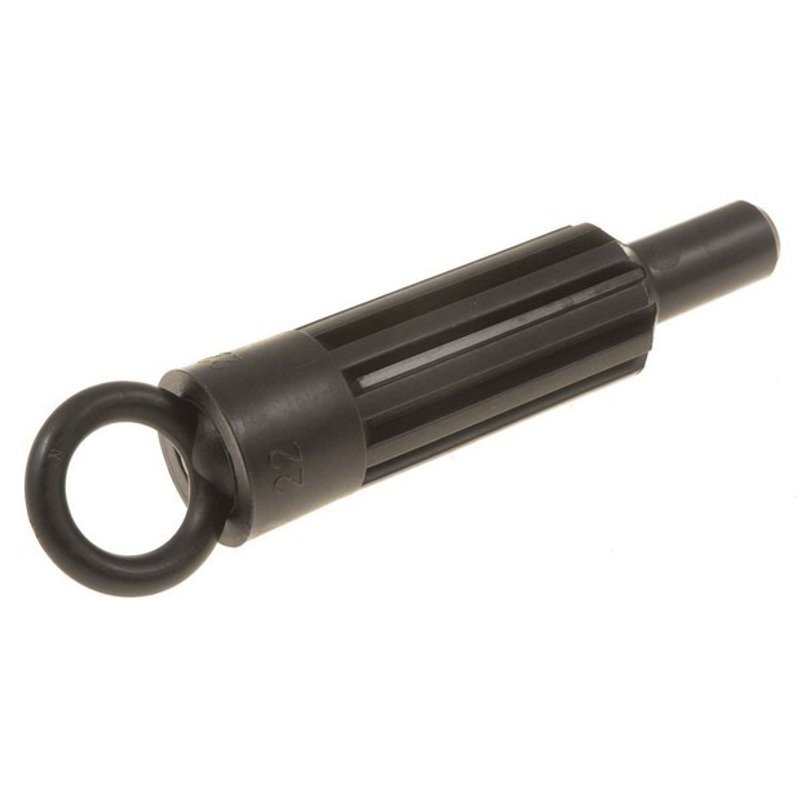

Dorman 14522 Clutch Alignment Tool

N/A
84 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$21.19Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Chevrolet and GMC, C2500, C3500, K2500, K3500, and Yukon
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Clutch Alignment Tool options

Dorman 14522 Clutch Alignment Tool

Dorman 14522 is a specific-fit clutch alignment tool for manual transmission service where accurate disc centering matters. It is built from black plastic and uses a 10-spline design with a 1.125 in. spline diameter for the listed applications, including 1994-2000 Chevrolet C2500, 1994-2000 Chevrolet C3500, 1994-2000 Chevrolet K2500, 1994-2000 Chevrolet K3500, and 2000 GMC Yukon.

Key Features

  • Specific-fit clutch alignment tool for targeted vehicle applications
  • 10-spline design with 1.125 in. spline diameter
  • Black plastic construction
  • Supports clutch disc centering during installation and service
  • Fits Chevrolet C2500, Chevrolet C3500, Chevrolet K2500, Chevrolet K3500, and GMC Yukon applications listed for 1994-2000 and 2000

Product Details

This Dorman clutch alignment tool helps position the clutch disc and pilot area during service so the transmission input shaft can be aligned during reassembly. Dorman 14522 is listed for specific applications and cross-references DENSO Auto Parts 5301 and Pioneer Automotive Industries TAT-5301 for the same application. It is a practical service tool for technicians working on Chevrolet C2500 and Chevrolet K3500 clutch jobs, as well as other listed GM truck and SUV applications.

Common Service Issues It Can Help Address

  • Clutch disc misalignment during installation
  • Difficulty aligning the transmission input shaft with the clutch assembly
  • Repeated removal and reinstallation caused by off-center clutch positioning
  • Slower clutch service on listed Chevrolet and GMC applications
  • Fitment uncertainty when servicing 10-spline clutch setups

Installation Notes and Tips

Verify spline count and spline diameter before use. Match the tool to the vehicle application and clutch setup listed for Dorman 14522, then center the clutch disc before tightening the pressure plate. Confirm the transmission and clutch components are clean and properly seated before final assembly.

Quality Assurance

Dorman manufactures this alignment tool from quality materials for long service life in shop and maintenance use. The specific-fit design and application-based cross references support accurate parts selection for the listed Chevrolet and GMC vehicles.

BrandDorman
Part Number14522
ColorBlack
MaterialPlastic
Package Contents1 Alignment Tool
Spline Diameter (In)1.125 In
Spline Quantity10
Universal Or Specific FitSpecific
