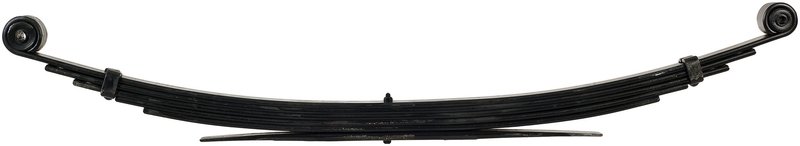

Dorman 22-1029HD Leaf Spring Assembly - Rear
| Brand | Dorman 22-1029HD |
|---|---|
| Position | Rear |
| Material | Acero |
| Material | Steel |
| Bushing Color | Black |
| Bushing Color | Negro |
| Bushing Color | Noir |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Load Rate | 2000 |
| Suspension Grade Type | Heavy duty |
| Suspension Grade Type | Para uso pesado |
| Leaf Quantity | 1 |
| Leaf Quantity | 1 ensamble de manguera del calentador |
| Leaf Width | 2.25 |
| Axle Orientation | Arrière |
| Axle Orientation | Trasero |
| Helper Spring | No |
| Helper Spring | Non |
| Axle Modification Needed | No |
| Axle Modification Needed | Non |
| Bushings Included | Oui |
| Bushings Included | Sí |
| Bushings Included | Yes |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Length Axis 1 | 26 |
| Length Axis 2 | 26 |
| Pack Thickness | 2.793 |
| Leaf Spring Arch Length | 4.5 |
| Fits | Chevrolet and GMC · 16 vehicles |
Heavy-duty design. Built for rear suspension service with a 2000 load rate and steel construction.
Direct replacement fit. Uses up-turned eye ends and included bushings for the specified spring setup.
No axle modification. Rear application is listed without axle changes for installation.
Cross-references 15685853 and 15705505 for the same application. See all 2.
Overview
This Dorman leaf spring assembly is built for rear suspension applications that need stable load support and consistent ride control. It is a heavy-duty steel replacement identified by part number 22-1029HD and cross-references GM 15685853 and 15705505 for the same application.
Key Features
- Steel construction for strength in load-bearing suspension use.
- Heavy-duty suspension grade for demanding rear spring applications.
- Up-turned eye ends for the specified leaf spring mounting style.
- Black bushings included for direct suspension interface support.
- Rear axle application with no axle modification needed.
Detailed Description
Part number 22-1029HD is a rear leaf spring assembly engineered for Chevrolet G10 and G20 vans and GMC G1500 and G2500 vans from 1992-1995. It is intended for vehicles that rely on leaf springs to carry payload and maintain suspension performance under load. The steel construction, 2.25-inch leaf width, and 2000 load rate make it a practical replacement for heavy-duty rear suspension service. The up-turned eye ends and included bushings support the specified mounting configuration, while the rear-only fitment keeps the application focused and direct. This Dorman leaf spring assembly is a fitment-based replacement for Chevrolet G10, Chevrolet G20, GMC G1500, and GMC G2500 rear suspension applications.
What It Helps Solve
- Sagging rear ride height from worn leaf springs.
- Reduced load-carrying stability in the rear suspension.
- Excessive rear suspension movement under payload.
- Noise or looseness related to worn spring bushings.
- Loss of consistent support in heavy-duty rear service.
Installation Notes
Verify the rear fitment, leaf width, arch length, and attachment style before installation. This assembly is listed with bushings included and no axle modification needed. Mounting hardware is not stated as included, so confirm the required hardware separately before beginning the job. Part number 22-1029HD should be matched to the vehicle’s original spring configuration for proper installation.
Quality Assurance
Dorman supplies replacement suspension components for service applications where correct fitment and load support matter. This leaf spring assembly is built to the specified heavy-duty configuration and is identified by part number 22-1029HD for accurate ordering and verification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Chevrolet | G10 | Rear | Heavy Duty Aftermarket Design |
| 1995 | Chevrolet | G20 | Rear | Heavy Duty Aftermarket Design |
| 1995 | GMC | G1500 | Rear | Heavy Duty Aftermarket Design |
| 1995 | GMC | G2500 | Rear | Heavy Duty Aftermarket Design |
| 1994 | Chevrolet | G10 | Rear | Heavy Duty Aftermarket Design |
| 1994 | Chevrolet | G20 | Rear | Heavy Duty Aftermarket Design |
| 1994 | GMC | G1500 | Rear | Heavy Duty Aftermarket Design |
| 1994 | GMC | G2500 | Rear | Heavy Duty Aftermarket Design |
| 1993 | Chevrolet | G10 | Rear | Heavy Duty Aftermarket Design |
| 1993 | Chevrolet | G20 | Rear | Heavy Duty Aftermarket Design |
| 1993 | GMC | G1500 | Rear | Heavy Duty Aftermarket Design |
| 1993 | GMC | G2500 | Rear | Heavy Duty Aftermarket Design |
| 1992 | Chevrolet | G10 | Rear | Heavy Duty Aftermarket Design |
| 1992 | Chevrolet | G20 | Rear | Heavy Duty Aftermarket Design |
| 1992 | GMC | G1500 | Rear | Heavy Duty Aftermarket Design |
| 1992 | GMC | G2500 | Rear | Heavy Duty Aftermarket Design |
| No rows match your filter. | ||||
