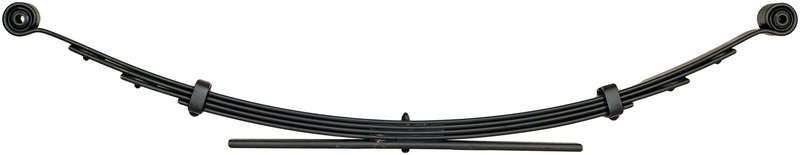

Dorman 22-1151 Leaf Spring Assembly - Rear
| Brand | Dorman 22-1151 |
|---|---|
| Position | Rear |
| Material | Acero |
| Material | Steel |
| Bushing Color | Black |
| Bushing Color | Negro |
| Bushing Color | Noir |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Load Rate | 1650 |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Leaf Quantity | 5 |
| Leaf Width | 2.5 |
| Axle Orientation | Arrière |
| Axle Orientation | Trasero |
| Helper Spring | No |
| Helper Spring | Non |
| Axle Modification Needed | No |
| Axle Modification Needed | Non |
| Bushings Included | Oui |
| Bushings Included | Sí |
| Bushings Included | Yes |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Length Axis 1 | 27 |
| Length Axis 2 | 27 |
| Pack Thickness | 2.148 |
| Leaf Spring Arch Length | 6.5 |
| Spring Research Institute Number | 22-1151 |
| Fits | Cadillac, Chevrolet, and GMC · 14 vehicles |
Steel construction. Provides a durable leaf spring assembly for suspension support.
Standard replacement. A direct-fit leaf spring assembly with no axle modification needed.
Bushings included. Comes ready with bushings for a more complete installation.
Cross-references 022-1151-00R, 22-1151DAY and 22-1151HUS for the same application. See all 6.
Dorman 22-1151 Rear Leaf Spring Assembly
Dorman 22-1151 is a rear leaf spring assembly for select Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon applications. It restores suspension support for vehicles that rely on leaf springs to carry payload and maintain ride control.
Key Features
- Steel leaf spring construction for rear suspension service
- Standard replacement suspension grade
- 5-leaf design with 2.5 in. leaf width
- Black bushings included
- Rear axle orientation
- Leaf spring arch length: 6.5 in.
- Load rate: 1650
- End 1 and End 2 use Berlin eye attachment type
Product Details
This Dorman leaf spring assembly is built for rear suspension replacement on 1995-2000 Chevrolet Tahoe, 1995-2000 GMC Yukon, and 1999-2000 Cadillac Escalade models. It uses a steel spring pack with a standard replacement design, black finish, and included bushings for direct suspension service. Part number 22-1151 is listed with a 27 in. length, 2.148 in. pack thickness, and rear-only fitment for the applications shown.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Addresses
- Sagging rear ride height
- Reduced load-carrying support
- Rear suspension noise from worn spring components
- Uneven stance at the back of the vehicle
- Loss of ride control under cargo or towing load
Installation Notes and Tips
Verify rear fitment against the vehicle listing before installation. Confirm spring dimensions, axle orientation, and attachment style match the original setup on your Tahoe, Yukon, or Escalade. Inspect related suspension components and mounting points for wear before replacing the spring assembly.
Quality Assurance
Dorman supplies replacement suspension components for direct-fit service, and this leaf spring assembly is built to match the listed application requirements for rear suspension use.
Compatible Vehicles
- Fits 1999-2000 Cadillac Escalade, Rear — 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity
- Fits 1995-2000 Chevrolet Tahoe, Rear — 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity
- Fits 1995-2000 GMC Yukon, Rear — 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity
| Year | Make | Model | # Doors | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2000 | Cadillac | Escalade | — | 4WD | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 2000 | Chevrolet | Tahoe | — | 4WD | 5.7L | V8 | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 2000 | GMC | Yukon | — | 4WD | 5.7L | V8 | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 1999 | Cadillac | Escalade | — | — | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 1999 | Chevrolet | Tahoe | 4 Door | 4WD | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 1999 | GMC | Yukon | — | 4WD | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 1998 | Chevrolet | Tahoe | 4 Door | 4WD | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 1998 | GMC | Yukon | — | 4WD | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 1997 | Chevrolet | Tahoe | 4 Door | 4WD | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 1997 | GMC | Yukon | 4 Door | 4WD | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 1996 | Chevrolet | Tahoe | 4 Door | 4WD | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 1996 | GMC | Yukon | 4 Door | 4WD | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 1995 | Chevrolet | Tahoe | 4 Door | 4WD | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
| 1995 | GMC | Yukon | 4 Door | 4WD | — | — | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.125 In. Pack Thickness; 1,650 Lb. Average Capacity |
