DormanPart #: 22-1567HD

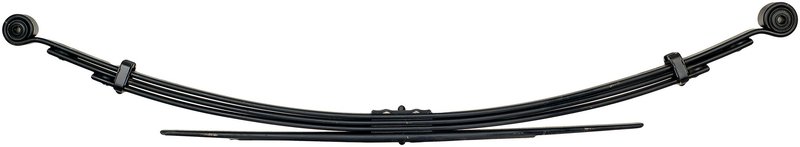

Dorman 22-1567HD Leaf Spring Assembly - Rear
⚙️ 56 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$386.14Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Chevrolet and GMC, Sierra 1500, Sierra 1500 Classic, Sierra 1500 HD, Sierra 1500 HD Classic, Sierra 1500 Limited, Silverado 1500, Silverado 1500 Classic, Silverado 1500 HD, Silverado 1500 HD Classic, and Silverado 1500 LD
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Leaf Spring Assembly options
Dorman 22-1567HD Rear Leaf Spring Assembly
The Dorman 22-1567HD leaf spring assembly is a heavy-duty rear suspension component built for Chevrolet Silverado 1500 and GMC Sierra 1500 applications. It helps restore rear ride height, load support, and suspension control when the original spring pack is worn or sagging.
With a steel construction, 4-leaf design, black bushings, and a 2.5-inch leaf width, this rear leaf spring assembly is specified for truck applications that need dependable payload support and stable suspension performance.
Key Features
- Heavy-duty rear leaf spring assembly for truck suspension service
- Steel construction for strength and load support
- 4-leaf design with a 2,235 load rate
- Black bushings included
- Rear axle application with Berlin eye attachment at both ends
- 2.5-inch leaf width and 32-inch length B
- Compatible With Chevrolet Silverado 1500 and GMC Sierra 1500 rear suspension applications
Detailed Description
Dorman 22-1567HD is a rear leaf spring assembly engineered for a range of Chevrolet Silverado 1500 and GMC Sierra 1500 trucks, including 1999-2019 model years listed in the fitment data. It is also listed for Silverado 1500 HD, Sierra 1500 HD, Silverado 1500 Classic, Sierra 1500 Classic, Silverado 1500 LD, and Sierra 1500 Limited rear applications where the notes match the vehicle configuration. The spring pack uses a steel build and heavy-duty suspension grade to support rear-end weight and help maintain consistent suspension geometry under load.
This part number, 22-1567HD, is a direct-fit style rear leaf spring assembly for vehicles specified with a 4-leaf pack, 2.3125-inch pack thickness, and U-bolt plate requirements noted in the fitment table. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Sagging rear suspension on Silverado 1500 and Sierra 1500 trucks
- Reduced payload support from worn leaf spring packs
- Rear ride-height loss after spring fatigue
- Excessive rear-end bounce or instability over uneven roads
- Suspension noise or looseness related to aging spring components
Installation Notes and Tips
Verify rear axle orientation, leaf count, pack thickness, and attachment style before ordering. This assembly is listed for rear use and includes bushings, while mounting hardware is not listed as included. Confirm the vehicle’s U-bolt plate setup and any application notes such as heavy-duty upgrade option, 4-wheel steering exclusion, or HD Classic/LD model designation before installation.
Quality Assurance
Dorman supplies this leaf spring assembly as a heavy-duty suspension replacement for listed Chevrolet Silverado 1500 and GMC Sierra 1500 rear applications. The part number 22-1567HD is cataloged to match the specified fitment and suspension requirements shown in the vehicle data.
| Brand | Dorman |
| Part Number | 22-1567HD |
| Material | Acero |
| Material | Steel |
| Bushing Color | Black |
| Bushing Color | Negro |
| Bushing Color | Noir |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Load Rate | 2235 |
| Suspension Grade Type | Heavy duty |
| Suspension Grade Type | Para uso pesado |
| Leaf Quantity | 4 |
| Leaf Width | 2.5 |
| Axle Orientation | Arrière |
| Axle Orientation | Rear |
| Axle Orientation | Trasero |
| Helper Spring | No |
| Helper Spring | Non |
| Axle Modification Needed | No |
| Axle Modification Needed | Non |
| Bushings Included | Oui |
| Bushings Included | Sí |
| Bushings Included | Yes |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Length Axis 1 | 32 |
| Length Axis 2 | 32 |
| Pack Thickness | 2.301 |
| Leaf Spring Arch Length | 7 |
| Spring Research Institute Number | 22-1567hd |
This part fits 56 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Chevrolet | Silverado 1500 LD | Rear | w/U-Bolt Plate |
| 2019 | GMC | Sierra 1500 Limited | Rear | w/U-Bolt Plate |
| 2018 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; w/U-Bolt Plate; Heavy Duty Upgrade Option |
| 2018 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; w/U-Bolt Plate; Heavy Duty Upgrade Option |
| 2017 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; w/U-Bolt Plate; Heavy Duty Upgrade Option |
| 2017 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; w/U-Bolt Plate; Heavy Duty Upgrade Option |
| 2016 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; w/U-Bolt Plate; Heavy Duty Upgrade Option |
| 2016 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; w/U-Bolt Plate; Heavy Duty Upgrade Option |
| 2015 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; w/U-Bolt Plate; Heavy Duty Upgrade Option |
| 2015 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; w/U-Bolt Plate; Heavy Duty Upgrade Option |
| 2014 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; w/U-Bolt Plate; Heavy Duty Upgrade Option |
| 2014 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; w/U-Bolt Plate; Heavy Duty Upgrade Option |
| 2013 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2013 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2012 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2012 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2011 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2011 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2010 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2010 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2009 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2009 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2008 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2008 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2007 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2007 | Chevrolet | Silverado 1500 Classic | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2007 | Chevrolet | Silverado 1500 HD Classic | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2007 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2007 | GMC | Sierra 1500 Classic | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2007 | GMC | Sierra 1500 HD Classic | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2006 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2006 | Chevrolet | Silverado 1500 HD | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2006 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2006 | GMC | Sierra 1500 HD | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2005 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2005 | Chevrolet | Silverado 1500 HD | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2005 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2005 | GMC | Sierra 1500 HD | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2004 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2004 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2003 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2003 | Chevrolet | Silverado 1500 HD | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2003 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2003 | GMC | Sierra 1500 HD | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2002 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2002 | Chevrolet | Silverado 1500 HD | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2002 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2002 | GMC | Sierra 1500 HD | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; wo/4 Wheel Steering; Heavy Duty Aftermarket Design |
| 2001 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2001 | Chevrolet | Silverado 1500 HD | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2001 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2001 | GMC | Sierra 1500 HD | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2000 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 2000 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 1999 | Chevrolet | Silverado 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
| 1999 | GMC | Sierra 1500 | Rear | 4 Leaf; 2.3125 In. Pack Thickness; 2,235 Lb. Average Capacity; 3/8 In. Diameter Center Bolt; Heavy Duty Aftermarket Design |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
022-1567-00HD22-1221HD22-1489HD22-1567HDHUS
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
