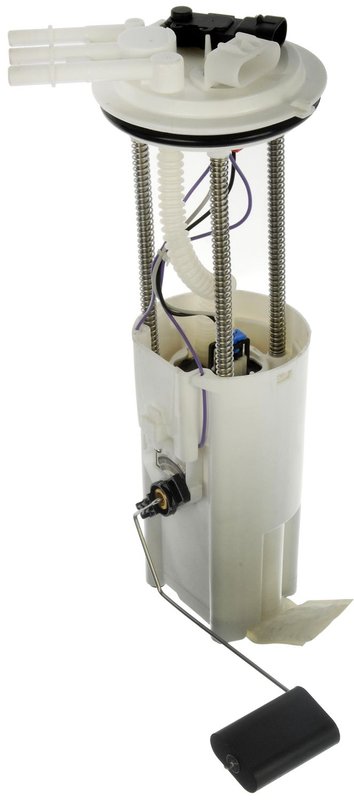

Dorman 2630302 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet Blazer and GMC Jimmy

The Dorman 2630302 Fuel Pump Module Assembly is engineered specifically for Chevrolet Blazer and GMC Jimmy models, ensuring precise fit and dependable fuel delivery. Designed to meet exact OEM specifications, this fuel pump module supports optimal engine performance and fuel efficiency.

Key Features of the Dorman 2630302 Fuel Pump Module

• Inlet outside diameter: 7.89 mm for secure fuel line connection
• Overall length: 19.5 cm with a housing length of 174 mm
• Housing width: 94 mm and height: 243 mm, constructed from durable plastic
• Wire gauge measurement: 1.5 with 4 wires and 4 spade terminals for reliable electrical connectivity
• Connector color: white with a flat plug shape and female gender
• Maximum pressure rating of 116.03 psi and maximum flow rating of 25.63 L/h
• Includes gasket or seal for leak prevention
• Top mount diameter: 6.35 cm with male inlet and outlet types
• Terminal gender: male and female for compatibility with vehicle wiring

Detailed Description of the Fuel Pump Module Assembly

This Dorman fuel pump module assembly (part number 2630302) is designed as a specific fit for Chevrolet Blazer and GMC Jimmy vehicles, providing a direct replacement for the original equipment. The plastic housing ensures durability while maintaining a lightweight design. The module features a white flat plug connector with four wires and spade terminals, facilitating straightforward electrical connections. Its maximum pressure and flow ratings support consistent fuel delivery under various driving conditions. The included gasket or seal helps maintain a secure, leak-free installation. The male inlet and outlet fittings are sized precisely to match factory fuel lines, ensuring proper fuel flow and system integrity.

Common Applications and Issues Addressed

• Restores proper fuel pressure and flow in Chevrolet Blazer and GMC Jimmy models
• Replaces failing or noisy fuel pumps causing engine hesitation or stalling
• Eliminates fuel leaks by providing a secure seal with included gasket
• Resolves electrical connection problems with reliable spade terminals and connector design
• Addresses fuel delivery inconsistencies that affect vehicle performance

Installation Notes and Tips

• Ensure vehicle compatibility with Chevrolet Blazer and GMC Jimmy before installation
• Disconnect the battery and relieve fuel system pressure prior to removal
• Handle the fuel pump module carefully to avoid damage to the plastic housing and connectors
• Use the included gasket or seal to prevent fuel leaks during installation
• Verify all electrical connections are secure and terminals are properly seated

Quality Assurance and Warranty Information

Dorman manufactures this fuel pump module assembly to meet or exceed OEM standards for fit, form, and function. The part number 2630302 undergoes rigorous quality control to ensure reliable operation in Chevrolet Blazer and GMC Jimmy vehicles. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship to provide confidence in product durability and performance.
