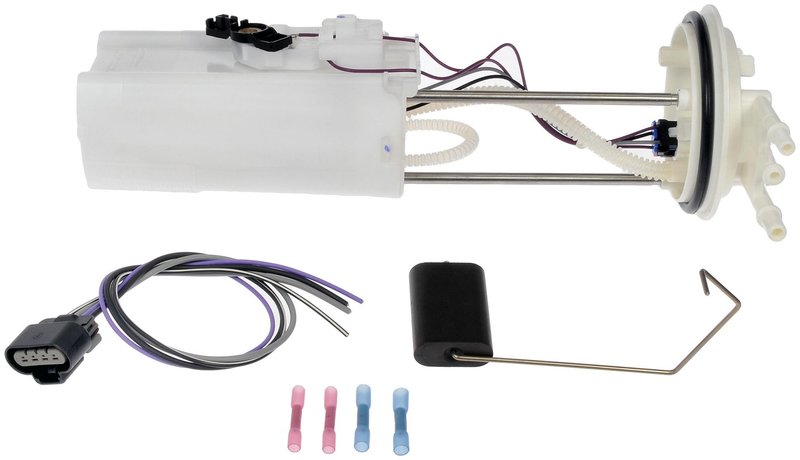

Dorman 2630332 Fuel Pump Module Assembly

Name: Dorman 2630332 Fuel Pump Module Assembly
Brand: Dorman
SKU: BKKY-2630332
Price: 178.69 USD
Availability: InStock

N/A

⚙️ 72 vehicles fit this part

🔍

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

$178.69Free Shipping

🚚Free ShippingNo Cost to Continental U.S.

🔄Free Returns*Wrong fit? No cost

🛡️60-Day ReturnsMoney back guarantee

*Free return shipping only qualifies if our fitment verification tool is used.

🔥

✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.

✅OE Direct Replacement — Bolt-on fit, no modifications needed

🚗Fitment: Chevrolet and GMC, Express 1500, Express 2500, Express 3500, Savana 1500, Savana 2500, and Savana 3500

🔄Easy Returns — Return within 60 days for a full refund

🚚Fast Shipping — Most orders ship same business day before 1pm CST

Not what you need? Click here for all Fuel Pump Module Assembly options

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Vans

The Dorman 2630332 Fuel Pump Module Assembly is designed specifically for Chevrolet Express and GMC Savana vans, including 1500, 2500, and 3500 models. Engineered to meet exact fitment requirements, this fuel pump module ensures consistent fuel delivery and optimal engine performance.

Compatible with Chevrolet Express 1500, 2500, 3500 and GMC Savana 1500, 2500, 3500
Specific fit design for direct replacement
Maximum pressure rating of 110 psi for reliable fuel flow
Includes gasket or seal for secure installation
Four-wire configuration with 15 and 17 gauge wires
Oval white female connector with four male spade terminals
Plastic housing measuring 170mm length, 154mm width, and 345mm height
Top mount diameter of 112.5mm with jet inlet and dual male quick connect outlets
Maximum flow rating of 47.56 liters per hour

Detailed Fuel Pump Module Features and Specifications

This Dorman fuel pump module assembly (part number 2630332) is constructed with a durable plastic housing designed to fit precisely within the fuel tank of Chevrolet Express and GMC Savana vans. The module features a four-wire setup with 15 and 17 gauge wires, ensuring proper electrical connectivity through a white oval-shaped female connector with four male spade terminals. The unit supports a maximum pressure of 110 psi and a flow rate of 47.56 liters per hour, suitable for maintaining consistent fuel delivery under various driving conditions.

The module includes a jet-type inlet and two male quick connect outlets with diameters of 3/8 inch and 5/16 inch, facilitating efficient fuel flow. A gasket or seal is included to prevent leaks during installation. The top mount diameter measures 112.5mm, and the overall housing dimensions are optimized for a specific fit, eliminating compatibility issues common with universal parts.

Common Applications and Problem Resolution

Replaces failing or noisy fuel pump modules in Chevrolet Express and GMC Savana vans
Resolves fuel delivery interruptions causing engine hesitation or stalling
Addresses low fuel pressure issues affecting engine performance
Eliminates fuel leaks by providing a secure seal with included gasket
Restores proper electrical connections with correct wire gauge and terminal types

Installation Notes and Tips

Installation of the Dorman 2630332 fuel pump module assembly requires removal of the fuel tank or access through the service panel, depending on the vehicle model. Ensure the fuel system is depressurized before beginning work. Verify the connector color and terminal type match the vehicle’s wiring harness to avoid electrical issues. Use the included gasket or seal to prevent fuel leaks and tighten mounting components to manufacturer torque specifications. It is recommended to inspect related fuel system components during installation for optimal performance.

Quality Assurance and Warranty Information

Dorman fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. The 2630332 part number undergoes rigorous quality control to ensure durability and reliable operation in Chevrolet Express and GMC Savana vans. This product includes a limited warranty covering defects in materials and workmanship, providing confidence in its long-term performance.

Brand	Dorman
Part Number	2630332
Connector Color	White
Connector Gender	Female
Connector Shape	Oval
Gasket Or Seal Included	Yes
Height	345
Housing Length	168
Housing Material	Plastic
Housing Width	92
Inlet Type	Jet
Length	170
Lock Ring Included	No
Maximum Flow Rating	47.56
Maximum Pressure	110
Outlet Diameter	3/8 in; 5/16 in
Outlet Quantity	2
Outlet Type	Male Quick Connect
Package Contents	1 Fuel Pump Module Assembly
Terminal Gender	Male
Terminal Quantity	4
Terminal Type	Spade
Top Mount Diameter	112.5
Universal Or Specific Fit	Specific
Width	154
Wire Gauge Measurement	15
Wire Gauge Measurement	17
Wire Quantity	4

This part fits 72 vehicles. Search below:

Year	Make	Model	Body Type	Fuel Type	Position	Notes
2002	Chevrolet	Express 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2002	Chevrolet	Express 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2002	Chevrolet	Express 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2002	Chevrolet	Express 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2002	Chevrolet	Express 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2002	Chevrolet	Express 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2002	GMC	Savana 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2002	GMC	Savana 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2002	GMC	Savana 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2002	GMC	Savana 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2002	GMC	Savana 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2002	GMC	Savana 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	Chevrolet	Express 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	Chevrolet	Express 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	Chevrolet	Express 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	Chevrolet	Express 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	Chevrolet	Express 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	Chevrolet	Express 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	GMC	Savana 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	GMC	Savana 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	GMC	Savana 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	GMC	Savana 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	GMC	Savana 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2001	GMC	Savana 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	Chevrolet	Express 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	Chevrolet	Express 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	Chevrolet	Express 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	Chevrolet	Express 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	Chevrolet	Express 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	Chevrolet	Express 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	GMC	Savana 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	GMC	Savana 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	GMC	Savana 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	GMC	Savana 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	GMC	Savana 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
2000	GMC	Savana 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	Chevrolet	Express 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	Chevrolet	Express 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	Chevrolet	Express 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	Chevrolet	Express 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	Chevrolet	Express 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	Chevrolet	Express 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	GMC	Savana 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	GMC	Savana 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	GMC	Savana 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	GMC	Savana 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	GMC	Savana 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1999	GMC	Savana 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	Chevrolet	Express 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	Chevrolet	Express 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	Chevrolet	Express 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	Chevrolet	Express 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	Chevrolet	Express 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	Chevrolet	Express 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	GMC	Savana 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	GMC	Savana 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	GMC	Savana 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	GMC	Savana 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	GMC	Savana 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1998	GMC	Savana 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	Chevrolet	Express 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	Chevrolet	Express 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	Chevrolet	Express 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	Chevrolet	Express 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	Chevrolet	Express 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	Chevrolet	Express 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	GMC	Savana 1500			N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	GMC	Savana 2500		GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	GMC	Savana 3500	Standard Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	GMC	Savana 3500	Standard Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	GMC	Savana 3500	Extended Cargo Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions
1997	GMC	Savana 3500	Extended Passenger Van	GAS	N/A	Over 8,600 Lb. GVW; Sender and Pump Assembly; wo/California Emissions

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

1500152531435267438E3966MFG0098MU1749P74778MSP3371M

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
