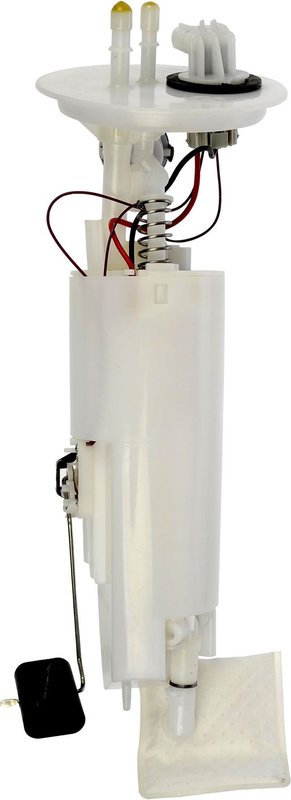

Dorman 2630346 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler, Dodge, and Plymouth

The Dorman 2630346 Fuel Pump Module Assembly is designed specifically for Chrysler Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager models. Engineered to meet exact fitment requirements, this fuel pump module ensures consistent fuel delivery and optimal engine performance.

• Inlet outside diameter: 7.9 mm
• Housing dimensions: 84 mm width, 189 mm length, 305 mm height
• Wire gauge measurement: 1.5 mm with 4 wires
• Connector color: Gray with flat plug shape
• Maximum pressure rating: 50.76 psi
• Maximum flow rating: 25.1 liters per hour
• Terminal type and gender: Female spade terminals, 4 terminals total
• Includes gasket or seal for secure installation
• Housing material: Durable plastic
• Specific fit for Chrysler, Dodge, and Plymouth minivans

Detailed Product Description

The Dorman 2630346 Fuel Pump Module Assembly is a vehicle-specific component designed to replace the original fuel pump module in select Chrysler, Dodge, and Plymouth minivans. Its plastic housing provides durability while maintaining a lightweight design. The module features a male inlet and SAE outlet with a 9.5 mm outlet diameter, ensuring compatibility with factory fuel lines. The gray flat plug connector with female spade terminals supports a secure electrical connection with a 1.5 mm wire gauge and four wires, facilitating reliable power delivery to the pump. The included gasket or seal helps prevent fuel leaks and maintains system integrity. This fuel pump module is engineered to handle a maximum pressure of 50.76 psi and a flow rating of 25.1 liters per hour, supporting efficient fuel delivery for smooth engine operation.

Common Applications and Issues Resolved

• Restores proper fuel pressure in Chrysler Caravan and Grand Caravan models
• Eliminates fuel delivery interruptions in Dodge Grand Voyager and Town & Country vehicles
• Resolves engine stalling or hesitation caused by faulty fuel pump modules
• Prevents fuel leaks with included gasket or seal
• Addresses electrical connection failures with secure female spade terminals

Installation Notes and Tips

• Ensure vehicle compatibility with Chrysler, Dodge, or Plymouth minivan models before installation
• Disconnect the battery prior to removal of the old fuel pump module to avoid electrical hazards
• Carefully remove the old module and clean the fuel tank opening before installing the new assembly
• Verify the gray flat plug connector is fully seated and terminals are secure
• Replace the gasket or seal to prevent fuel leaks and ensure a tight fit

Quality Assurance and Warranty

Dorman manufactures the 2630346 Fuel Pump Module Assembly to meet or exceed OEM specifications for fit, form, and function. The product undergoes rigorous quality control testing to ensure durability and reliable performance. This fuel pump module comes with a limited warranty covering defects in materials and workmanship, providing confidence in your replacement part.
