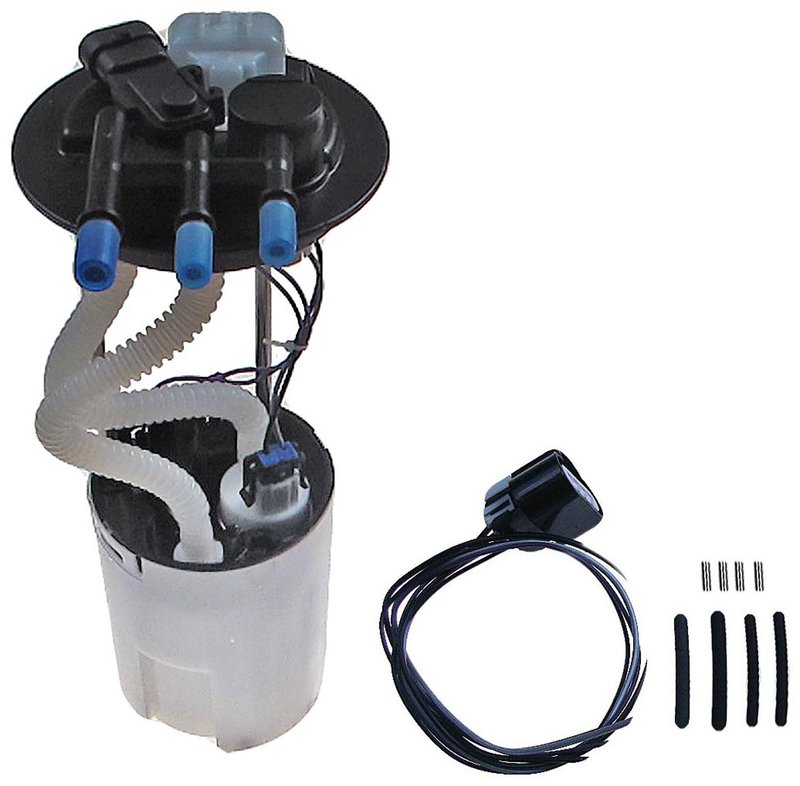

Dorman 2630378 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Dorman 2630378 Fuel Pump Module Assembly is engineered specifically for Chevrolet Canyon and GMC Colorado models. Designed to meet exact fitment requirements, this fuel pump module ensures consistent fuel delivery and optimal engine performance.

• Inlet outside diameter: 7.89 mm
• Length: 19.5 cm
• Housing width: 94 mm
• Wire gauge measurement: 1.5
• Connector color: White with flat plug shape
• Maximum pressure rating: 116.03 psi
• Terminal type: Spade, female gender, 4 terminals
• Maximum flow rating: 21.4 liters per hour
• Includes gasket or seal for secure installation
• Housing material: Durable plastic
• Specific fit for Chevrolet Canyon and GMC Colorado

Technical Overview of the Dorman 2630378 Fuel Pump Module

This fuel pump module assembly features a plastic housing measuring 120 mm in length and 94 mm in width, with a height of 200 mm. It includes a male inlet and outlet, with the outlet diameter measuring 9.49 mm. The module is equipped with a white flat plug connector and four 1.5 gauge wires, ensuring reliable electrical connections. The spade-type terminals are female, providing secure attachment points. Designed for top-mount installation, the module has a top mount diameter of 6.35 mm and a width of 6.35 mm. The included gasket or seal helps prevent fuel leaks and maintains system integrity.

Compatible Vehicles and Applications

This Dorman fuel pump module assembly is compatible with specific Chevrolet and GMC models, including the Chevrolet Canyon and GMC Colorado. It is designed to replace the original fuel pump module, restoring proper fuel pressure and flow for efficient engine operation.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure problems affecting performance
• Replaces faulty or worn-out fuel pump modules
• Eliminates fuel leaks with included gasket or seal
• Improves fuel system reliability in Chevrolet Canyon and GMC Colorado trucks

Installation Notes and Tips

Installation of the Dorman 2630378 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is parked on a level surface and the battery is disconnected before beginning. Use appropriate tools to disconnect the electrical connectors and fuel lines carefully. Verify the orientation of the male inlet and outlet fittings during installation. Replace the gasket or seal included with the module to prevent leaks. After installation, check for proper fuel pressure and system operation before completing the job.

Quality Assurance and Warranty Information

Dorman manufactures this fuel pump module assembly to meet or exceed OEM specifications for fit, form, and function. The plastic housing and electrical components are designed for durability and long service life. This part is backed by Dorman's limited warranty, providing coverage against defects in materials and workmanship under normal use conditions.
