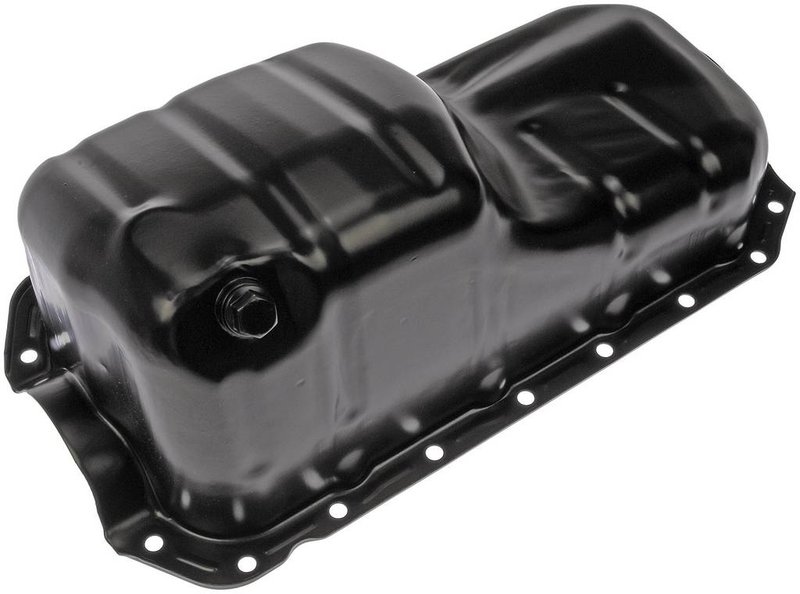

Dorman 264-020 Engine Oil Pan

Overview of Dorman Engine Oil Pan 264-020

The Dorman 264-020 engine oil pan is designed specifically for Mazda 323, MX-3, and Protege models. Constructed from durable steel and finished in black, this oil pan offers reliable performance and protection for your engine's lower end.

• Material: Steel construction for strength and durability
• Length: 17.25 inches
• Maximum Width: 9 inches
• Maximum Depth: 6.75 inches
• Baffled design to reduce oil sloshing
• Drain plug included for easy oil changes
• Sump location: Rear, wet sump type
• 18 mounting holes for secure installation
• Drain thread size: 14

Detailed Product Description

The Dorman 264-020 engine oil pan is engineered to meet the specifications of Mazda 323, MX-3, and Protege vehicles. Its steel construction ensures resistance to impact and corrosion, while the black finish provides additional protection against environmental factors. The oil pan features a baffled design that helps maintain oil control during engine operation, minimizing oil movement and ensuring consistent lubrication. With a rear sump location and wet sump type, this oil pan is compatible with the original engine setup of the specified Mazda models.

Included with the oil pan is a drain plug, allowing for straightforward oil changes without the need for additional parts. The 18 mounting holes provide a secure fit to the engine block, ensuring proper sealing and preventing leaks. Note that this oil pan does not include a crankshaft wiper, dipstick port, pickup, windage tray, or gasket and seal, so these components must be sourced separately if needed.

Common Applications and Problem Resolution

• Replacement for damaged or leaking oil pans on Mazda 323, MX-3, and Protege
• Fixes oil leaks caused by corrosion or impact damage
• Resolves oil pan deformation affecting oil containment
• Restores proper oil drainage with included drain plug
• Addresses oil sloshing issues with baffled design

Installation Notes and Tips

Ensure the engine is cool before beginning installation. Clean the mounting surface thoroughly to remove old gasket material and debris. Since the oil pan does not include a gasket or seal, use a compatible gasket designed for your specific Mazda model. Tighten the 18 mounting bolts evenly in a crisscross pattern to the manufacturer’s torque specifications to prevent leaks. Verify the drain plug is properly sealed to avoid oil seepage.

Quality Assurance and Warranty

Dorman engine oil pans are manufactured to meet or exceed OEM standards for fit, form, and function. The 264-020 part number undergoes quality inspections to ensure durability and performance. While specific warranty details are not provided here, Dorman typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
