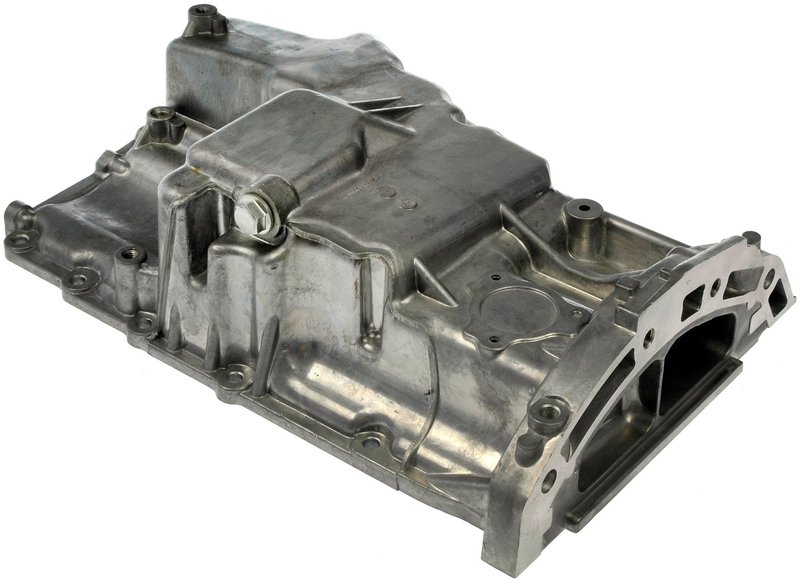

Dorman 264-099 Engine Oil Pan

Dorman 264-099 Engine Oil Pan for Mazda 3 and Mazda 5

Replace a leaking oil pan with a direct-fit aluminum unit engineered to match the original equipment design on select Mazda applications. Dorman 264-099 is built for the 2006-2009 Mazda 3 and 2008-2010 Mazda 5, with OE-style dimensions and mounting points for a reliable service replacement.

Key Features

• Aluminum construction with a natural finish
• Front sump, wet-sump design
• Drain plug included with 14 mm drain thread size
• 13 bolt holes for OE-style attachment
• Approximate capacity: 4.5
• Dimensions: 17.12 in length, 11.5 in maximum width, 5 in maximum depth
• Designed without oil level sensor port, dipstick port, or gasket/seal included

Detailed Description

Dorman 264-099 is an engine oil pan replacement for select Mazda 3 and Mazda 5 models. It is precision-engineered to match the original equipment pan, helping restore proper oil containment after corrosion, impact damage, or seal failure. The aluminum construction and OE-style front sump layout support a clean fit on the specified Mazda 3 and Mazda 5 applications, while the included drain plug simplifies routine oil service.

This part cross-references Spectra Premium (e.g., MZP14A) for the same application.

What It Helps Solve

• Oil leaks from a cracked or corroded pan
• Damage from road debris or impact
• Stripped or worn drain plug threads
• Improper sealing from a warped original pan
• Oil loss caused by a compromised sump housing

Installation Notes and Tips

Compatible With 2006-2009 Mazda 3 and 2008-2010 Mazda 5. Confirm engine configuration and pan style before installation, and transfer any required components not supplied with the pan. Because no gasket or seal is included, use the correct sealing components for the vehicle application and verify drain plug torque during service. Part number 264-099 should be matched to the vehicle’s OE-style front sump layout before installation.

Quality Assurance

Dorman manufactures this oil pan as an OE-style replacement for specific vehicle years, makes, and models. Part number 264-099 is engineered to match original equipment fit and function for the listed Mazda applications.
