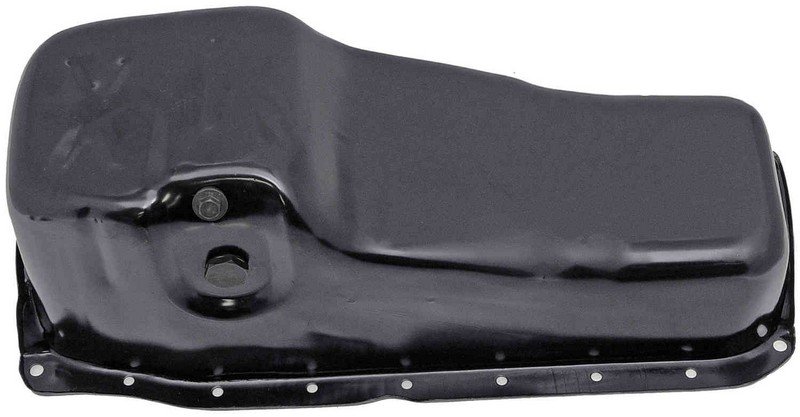

Dorman 264-107 Engine Oil Pan

OE-Style Engine Oil Pan Replacement

This Dorman engine oil pan is precision-engineered to match the original equipment pan on specific applications, including Chevrolet Camaro, Pontiac Firebird, Buick Roadmaster, and related GM vehicles. If you are replacing a leaking oil pan, part number 264-107 provides a direct-fit solution for the listed vehicles with oil level sensor applications.

• Steel construction for durable engine oil containment
• Black finish
• Baffled design helps control oil movement in the sump
• Rear sump, wet sump configuration
• Drain plug included
• 18 mounting holes for OE-style attachment points
• Compatible with applications that use an oil level sensor
• Cross-references ATP 103049 and Spectra Premium GMP02B for the same application

Detailed Product Overview

Dorman 264-107 is a steel engine oil pan built to match the original equipment shape and mounting layout for select GM rear-sump applications. It measures 22 inches long, 10.25 inches wide, and 7.75 inches deep, with a baffled wet-sump design that supports stable oil control during normal engine operation. The pan includes a drain plug and uses a 12-thread drain opening, while the gasket or seal is not included.

This oil pan is a practical replacement for vehicles such as the 1993-1997 Chevrolet Camaro, 1993-1997 Pontiac Firebird, 1991-1996 Buick Roadmaster, 1991-1996 Chevrolet Caprice, and 1994-1996 Chevrolet Impala. It also applies to select Cadillac Commercial Chassis and Fleetwood models, along with Oldsmobile Custom Cruiser applications listed below.

Common Problems This Part Can Address

• Oil pan leaks from corrosion, impact damage, or worn sealing surfaces
• Oil seepage around the drain area
• Damaged or warped original pan flanges
• Replacement needs after pan removal during engine service
• Fitment issues on vehicles requiring an OE-style rear-sump pan

Installation Notes and Tips

Verify engine configuration, oil level sensor requirements, and mounting-hole alignment before installation. Clean the sealing surface thoroughly and replace the gasket or seal separately, since it is not included. Confirm drain plug thread size and inspect the oil pickup, windage tray, and related components during service if wear or contamination is present.

• Fits 1993-1997 Chevrolet Camaro, N/A, w/Oil Level Sensor
• Fits 1993-1997 Pontiac Firebird, N/A, w/Oil Level Sensor
• Fits 1991-1996 Buick Roadmaster, N/A, w/Oil Level Sensor
• Fits 1993-1996 Cadillac Commercial Chassis, N/A, w/Oil Level Sensor; 4 Quart Capacity
• Fits 1993-1996 Cadillac Fleetwood, N/A, w/Oil Level Sensor
• Fits 1991-1996 Chevrolet Caprice, N/A, w/Oil Level Sensor
• Fits 1994-1996 Chevrolet Impala, N/A, w/Oil Level Sensor
• Fits 1991-1994 Chevrolet Commercial Chassis, N/A, w/Oil Level Sensor
• Fits 1991-1992 Oldsmobile Custom Cruiser, N/A, w/Oil Level Sensor
• Fits 1979 Oldsmobile Custom Cruiser, N/A, w/Oil Level Sensor
• Fits 1980 Oldsmobile Custom Cruiser, N/A

Quality Assurance

Dorman designs replacement components to match original equipment fit and function for specific vehicle applications. Part number 264-107 is built for the listed GM fitments and follows OE-style dimensions and mounting points for service replacement use.
