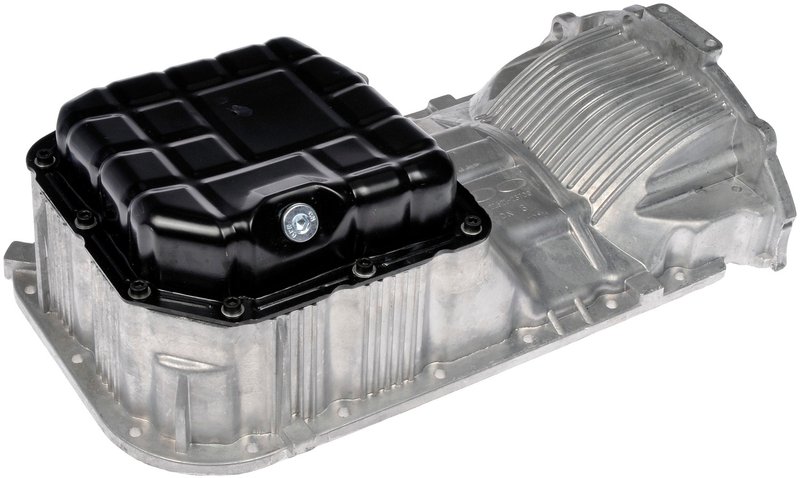

Dorman 264-116 Engine Oil Pan - Upper and Lower

OE-Style Oil Pan Replacement

This Dorman engine oil pan is precision-engineered to match the original equipment pan on specific Hyundai and Kia applications. It is built for a reliable replacement when the factory pan is leaking, damaged, or no longer sealing properly.

Compatible With 2001-2006 Hyundai Santa Fe, 2002-2003 Hyundai Sonata, and 2001-2005 Kia Magentis and Kia Optima applications, this oil pan is designed around the original fit and function. Part number 264-116 is a direct-fit service solution for the listed upper and lower engine applications.

Key Features

• Steel and aluminum construction for OE-style durability
• Black finish
• Baffled design to help manage oil movement
• Center sump, wet sump configuration
• Drain plug included
• 17 bolt holes for proper mounting alignment
• 4.2 capacity
• 14 drain thread size

Detailed Description

Dorman 264-116 is an engine oil pan replacement made to match the original equipment pan on select Hyundai Santa Fe, Hyundai Sonata, Kia Magentis, and Kia Optima vehicles. The steel and aluminum construction supports dependable service, while the baffled design helps maintain oil control during operation. With the center sump layout, wet sump design, and OE-style dimensions, this pan is built for a straightforward replacement on the listed applications.

This part cross-references Spectra Premium HYP14A for the same application. The Dorman 264-116 oil pan is a practical choice when you need a replacement for a leaking or damaged pan on these Hyundai and Kia models.

Common Problems This Part Can Address

• Engine oil leaks from a cracked or corroded oil pan
• Damaged drain plug threads or a worn drain sealing surface
• Oil loss caused by impact damage to the pan
• Poor oil control from a bent or distorted original pan
• Replacement needs after service-related pan damage

Installation Notes and Tips

Verify vehicle fitment by year, make, model, and engine application before installation. This oil pan does not include a gasket or seal, so the sealing components should be selected separately as required for the repair. Clean the mating surfaces thoroughly and inspect the drain plug area and bolt holes before assembly.

Fits 2005-2006 Hyundai Santa Fe, upper and lower. Fits 2002 Hyundai Santa Fe, upper and lower. Fits 2001-2005 Kia Magentis, upper and lower. Fits 2001-2005 Kia Optima, upper and lower. Fits 2003 Hyundai Santa Fe, upper and lower, to 12/06/02. Fits 2003 Hyundai Sonata, upper and lower, to 12/06/02. Fits 2002 Hyundai Sonata, upper and lower.

Quality Assurance

Dorman manufactures this oil pan as a precision-engineered replacement for the original equipment part on the listed Hyundai and Kia applications. Part number 264-116 is built to match the intended fit and function for service replacement use.
