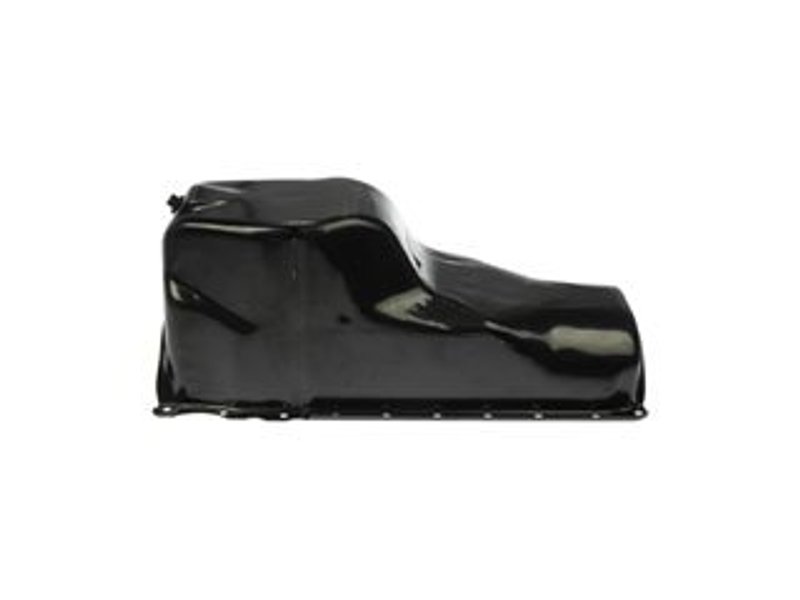

Dorman 264-138 Engine Oil Pan

Engine Oil Pan Replacement for GM V8 Applications

Dorman 264-138 is a steel engine oil pan built to match the original equipment pan on specific Chevrolet and GMC vehicles. It is engineered for a direct replacement on select 1991-2000 Chevrolet C2500, C3500, K2500, K3500, Express 3500, and GMC C2500, C3500, K2500, K3500, Savana 3500 applications, along with additional GM truck and van fitments.

This oil pan uses a rear sump wet-sump design with a baffled internal layout, a dipstick port, and a drain plug included. The black steel construction is made for the engine bay environment and follows OE-style dimensions for a reliable service replacement.

Key Features

• Steel construction with a black finish
• Rear sump, wet-sump design
• Baffled pan for improved oil control
• Dipstick port included
• Drain plug included
• OE-style replacement for select Chevrolet and GMC trucks, vans, and Suburban models
• Dorman 264-138 for direct-fit engine oil pan service

Detailed Description

Dorman 264-138 is a replacement engine oil pan for GM applications that require a rear sump steel pan with OE-matched dimensions. It measures 23.3 inches long, 10.22 inches wide, and 9.42 inches deep, with 20 mounting holes and a 14 mm drain thread size. The pan is baffled to help manage oil movement inside the sump, and it includes a dipstick port and drain plug for service convenience. This part cross-references Spectra Premium G M P41A for the same application.

Compatible With select Chevrolet C2500, C3500, K2500, K3500, Express 3500, C2500 Suburban, K2500 Suburban, P30, G30, R2500 Suburban, R3500, and V3500 models, plus GMC C2500, C3500, K2500, K3500, Savana 3500, C2500 Suburban, K2500 Suburban, P3500, G3500, R2500 Suburban, R3500, and V3500 models. The Dorman 264-138 is also listed for 1991-2000 Chevrolet and GMC truck and van platforms where the OE pan configuration matches these specifications.

What It Helps Fix

• Oil leaks from a cracked, rusted, or damaged oil pan
• Oil seepage around the drain area or mounting flange
• Poor oil retention caused by a warped or dented pan
• Service issues when the original pan no longer seals correctly
• Replacement needs after impact damage to the underside of the engine

Installation Notes and Tips

Verify the rear sump layout, mounting hole count, and dipstick port location before installation. This oil pan does not include a gasket or seal, pickup, windage tray, crank shaft wiper, or installation hardware, so those components must be sourced separately as needed. Clean the sealing surface thoroughly and inspect the drain plug threads before filling with oil.

Quality Assurance

Dorman designs this oil pan as an OE-style replacement for specific vehicle years, makes, and models, with dimensions and features matched to the original pan configuration for dependable service fitment.
