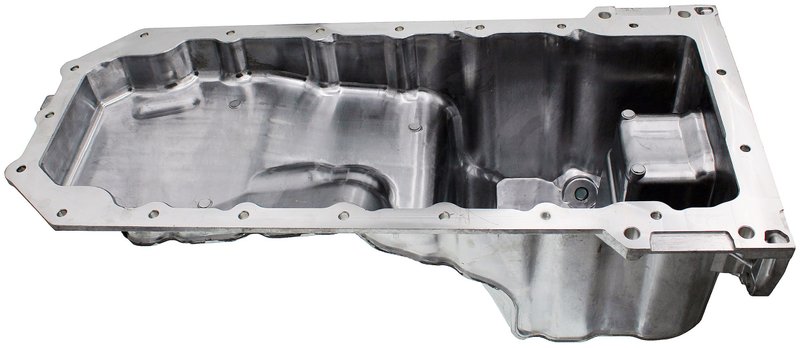

Dorman 264-169 Engine Oil Pan
| Brand | Dorman 264-169 |
|---|---|
| Material | Aluminum |
| Capacity | 7.38 |
| Maximum Width | 11.562 |
| Color | Natural |
| Oil Level Sensor Port | No |
| Baffled | No |
| Crank Shaft Wiper Included | No |
| Maximum Depth | 8.125 |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Minimum Depth | 7.375 |
| Kick Out Type Pan | No |
| Pickup Included | No |
| Sump Location | Front |
| Sump Type | Wet |
| Windage Tray Included | No |
| Gasket Or Seal Included | No |
| Drain Thread Size | 14 |
| Pump Type | Hydraulic |
| Bolt Hole Quantity | 21 |
| Installation Hardware Included | No |
| Length | 24.562 in |
| Package Contents | 1 oil pan |
| Fits | Jeep · 11 vehicles |
OE direct replacement. Precision-engineered to match the original equipment pan.
Aluminum construction. Lightweight material helps resist corrosion and wear.
Drain plug included. Ready for service with a built-in drain plug.
Cross-references Spectra Premium CRP64A and 53021860AC for the same application. See all 2.
Dorman 264-169 Engine Oil Pan for Jeep
This Dorman engine oil pan is precision-engineered as a direct replacement for specific Jeep applications with a leaking or damaged pan. Built from aluminum with a natural finish, it matches the original equipment style for the 2005-2010 Jeep Grand Cherokee and 2006-2010 Jeep Commander.
- Direct replacement engine oil pan for select Jeep Grand Cherokee and Jeep Commander models
- Aluminum construction with a natural finish
- Front sump, wet sump design
- Drain plug included for service convenience
- 21 bolt holes for OE-style mounting
- Part number 264-169 for application matching and catalog lookup
OE-Style Fitment and Construction
Dorman 264-169 is built to match the original equipment pan on the listed Jeep applications, helping restore proper oil containment after corrosion, impact damage, or gasket-related leakage. The pan measures 24.562 inches long, with a maximum width of 11.562 inches and a depth range from 7.375 to 8.125 inches. It uses a front sump layout, includes a drain plug, and does not include a gasket, seal, pickup, or installation hardware. This part cross-references Spectra Premium CRP64A for the same application.
Vehicle Fitment
- Fits 2006-2010 Jeep Commander, N/A
- Fits 2005-2010 Jeep Grand Cherokee, N/A
Common Problems This Part Can Address
- Engine oil leaking from a cracked or corroded oil pan
- Oil loss caused by impact damage to the pan
- Damaged drain threads or a worn drain plug sealing surface
- Improper oil containment from a warped or mismatched replacement pan
- Service issues on Jeep Grand Cherokee and Jeep Commander applications with a front sump layout
Installation Notes and Tips
Confirm engine configuration and pan shape before installation, since fitment is specific to the listed Jeep models and years. Replace the gasket or seal separately, clean the mating surfaces thoroughly, and inspect the drain plug threads before filling with oil. Verify clearance around the front sump area and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
Dorman designs this oil pan as an OE-style replacement for the specified Jeep applications, with dimensions and mounting points intended to align with the original pan. Part number 264-169 is built for direct-fit service on the listed vehicles.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2010 | Jeep | Commander | 5.7L | V8 | — |
| 2010 | Jeep | Grand Cherokee | 5.7L | V8 | — |
| 2009 | Jeep | Commander | 5.7L | V8 | — |
| 2009 | Jeep | Grand Cherokee | 5.7L | V8 | — |
| 2008 | Jeep | Commander | 5.7L | V8 | — |
| 2008 | Jeep | Grand Cherokee | 5.7L | V8 | — |
| 2007 | Jeep | Commander | 5.7L | V8 | — |
| 2007 | Jeep | Grand Cherokee | 5.7L | V8 | — |
| 2006 | Jeep | Commander | 5.7L | V8 | — |
| 2006 | Jeep | Grand Cherokee | 5.7L | V8 | — |
| 2005 | Jeep | Grand Cherokee | 5.7L | V8 | — |
