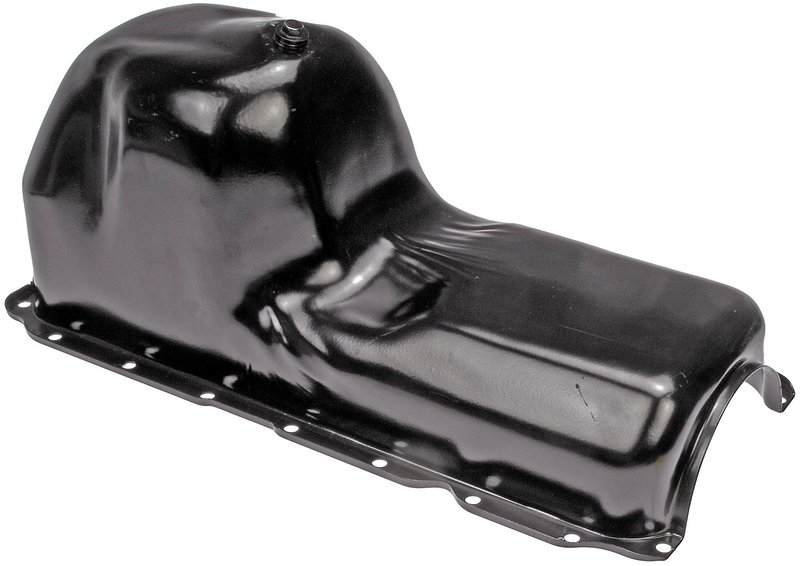

Dorman 264-226 Engine Oil Pan

Dorman 264-226 Engine Oil Pan for Jeep

Replace a leaking oil pan with a direct-fit steel pan engineered to match the original equipment design on select Jeep applications. Dorman 264-226 is built for specific Jeep Cherokee, Wrangler, Comanche, Wagoneer, and CJ7 models, with OE-style dimensions and drain plug provision for a straightforward repair.

Key Features

• Steel construction with a black finish
• Rear sump, wet sump design
• Drain plug included with M12 x 1.25 thread size
• 23 bolt holes for OE-style mounting
• Maximum width: 11.75 in; length: 20.5 in
• Capacity: 4
• Direct replacement for select Jeep Cherokee, Wrangler, Comanche, Wagoneer, and CJ7 applications

Detailed Description

This Dorman engine oil pan is precision-engineered to match the original equipment pan on specific vehicle years, makes, and models. It is a steel replacement oil pan with a rear sump layout, wet sump configuration, and no provisions for an oil level sensor port, dipstick port, or oil cooler return fitting. The pan includes a drain plug and uses an M12 x 1.25 drain thread size. This part cross-references Pioneer Automotive Industries 501019 and Spectra Premium CRP12A for the same application.

Compatible With 1986-1995 Jeep Cherokee, 1987-1995 Jeep Wrangler, 1986-1992 Jeep Comanche, 1986-1987 Jeep Wagoneer, and 1986 Jeep CJ7. Dorman 264-226 is a practical replacement for Jeep Cherokee oil pan leak repair, Jeep Wrangler engine oil pan replacement, and other listed Jeep applications where the original pan has been damaged or corroded.

Common Repair Uses

• Oil pan leaks at the gasket sealing surface
• Rust, corrosion, or impact damage to the original pan
• Damaged drain plug threads or stripped drain opening
• Oil seepage from a cracked or warped pan
• Replacement during engine service on listed Jeep models

Installation Notes and Tips

Verify fitment by year, make, and model before installation. Transfer any required components from the original setup if your vehicle uses them, since gasket or seal, pickup, and installation hardware are not included. Clean the mating surface thoroughly and inspect the oil pan rail, drain plug threads, and sealing area before reassembly.

Quality Assurance

Dorman manufactures this oil pan as an OE-style replacement for the listed Jeep applications, with dimensions and mounting points matched to the original design for reliable service.
