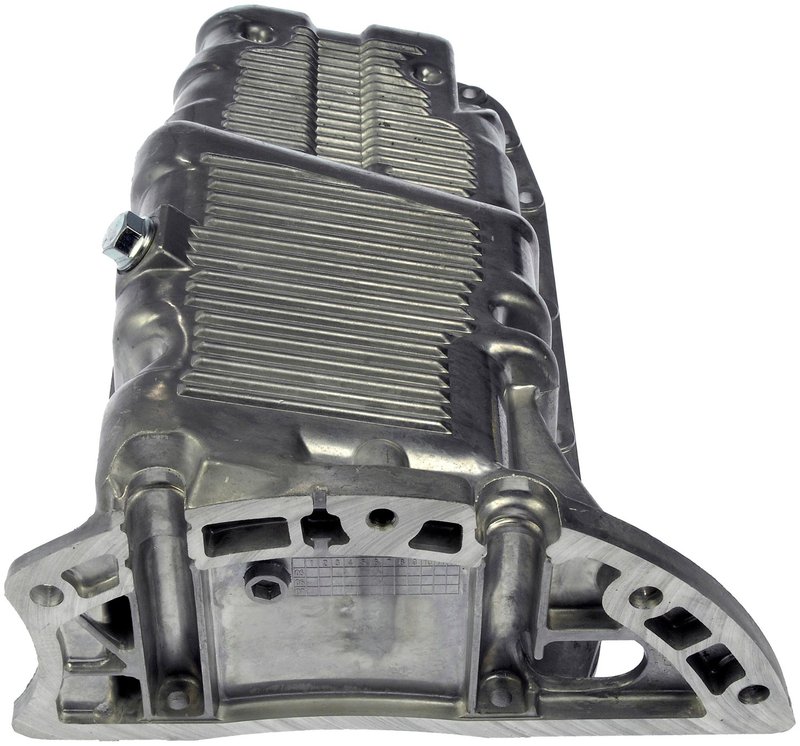

Dorman 264-264 Engine Oil Pan

Engine Oil Pan Replacement for CTS and Camaro

This Dorman engine oil pan is a direct replacement for select Cadillac CTS and Chevrolet Camaro applications. Built from aluminum and shaped to match the original equipment pan, it supports reliable oil containment on 2010-2013 Cadillac CTS and 2010-2012 Chevrolet Camaro models.

Key Features

• Direct replacement engine oil pan for specific GM applications
• Aluminum construction with a natural finish
• Baffled design helps manage oil movement inside the pan
• Rear sump, wet sump configuration
• Includes drain plug, pickup, and windage tray
• 6-quart capacity with 18 bolt holes
• Part number 264-264

Product Details

Dorman 264-264 is precision-engineered to match the original equipment oil pan on select Cadillac CTS and Chevrolet Camaro vehicles. The pan measures 16.62 inches long, 11.812 inches wide, and 6.937 inches at maximum depth, with a 12 mm drain thread size and hydraulic pump type application details. It does not include a gasket or seal, oil level sensor port, or dipstick port, and it is not a kick-out style pan. This part cross-references Spectra Premium GMP74B for the same application.

Common Problems This Part Can Address

• Oil leaking from a damaged or corroded pan
• Cracked or dented pan from road impact
• Improper oil retention caused by a worn original pan
• Oil control concerns related to a missing or damaged baffle
• Replacement needs after drain plug or mounting damage

Installation Notes and Tips

Verify engine and vehicle fitment before installation. Because the gasket or seal is not included, transfer or replace the sealing components as required during service. Clean the mounting surface thoroughly, inspect the pickup area, and confirm proper drain plug thread engagement before refilling with oil. Fits 2010-2013 Cadillac CTS and Fits 2010-2012 Chevrolet Camaro, matching the listed applications for this Dorman 264-264 oil pan.

Quality Assurance

Dorman manufactures this oil pan as an OE-style replacement for the listed vehicles, with fit and construction intended to align with original equipment specifications for the application.
