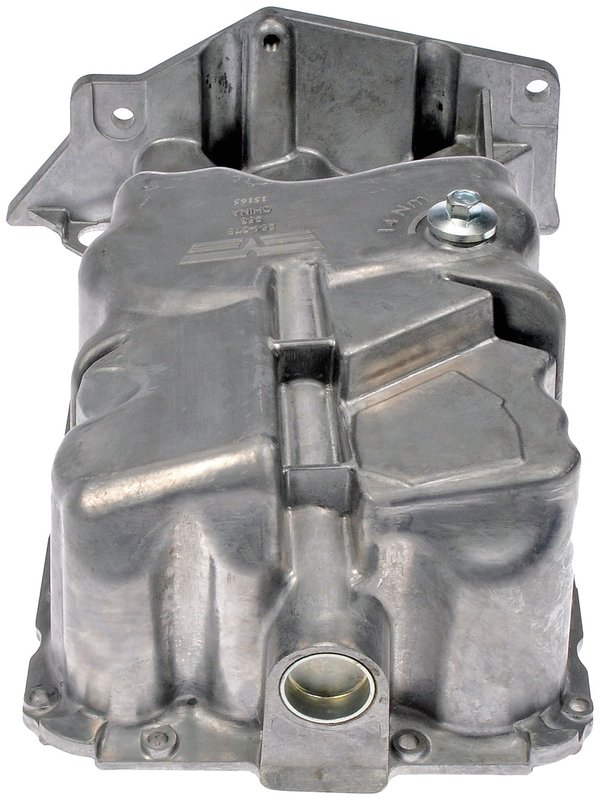

Dorman 264-268 Engine Oil Pan
| Brand | Dorman 264-268 |
|---|---|
| Material | Aluminum |
| Capacity | 3.7 |
| Maximum Width | 11.312 |
| Color | Natural |
| Oil Level Sensor Port | No |
| Baffled | No |
| Crank Shaft Wiper Included | No |
| Maximum Depth | 5.875 |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Minimum Depth | 5.37 |
| Kick Out Type Pan | No |
| Pickup Included | No |
| Sump Location | Front |
| Sump Type | Wet |
| Windage Tray Included | No |
| Gasket Or Seal Included | No |
| Drain Thread Size | M14 x 1.5 |
| Pump Type | Hydraulic |
| Bolt Hole Quantity | 16 |
| Installation Hardware Included | No |
| Length | 16.812 in |
| Package Contents | 1 oil pan |
| Fits | Cadillac and Chevrolet · 8 vehicles |
OE-style replacement. Precision-engineered to match the original equipment pan.
Aluminum construction. Lightweight material with a natural finish.
Drain plug included. Ready for service with a built-in drain plug.
Cross-references 55568940 and GMP126A for the same application. See all 2.
Dorman 264-268 Engine Oil Pan
Replace a leaking oil pan with a direct-fit engine oil pan engineered to match the original equipment design on select Cadillac and Chevrolet applications. Dorman 264-268 is built from aluminum with a natural finish and includes a drain plug for a straightforward replacement on the correct vehicle years and models.
Key Features
- Precision-engineered replacement for the original equipment oil pan
- Aluminum construction with a natural finish
- Front sump, wet sump design
- Drain plug included with M14 x 1.5 drain thread size
- 16 bolt holes for OE-style mounting
- No oil level sensor port, dipstick port, or gasket/seal included
- Part number 264-268 for easy identification
Detailed Description
This Dorman engine oil pan is made for specific 2011-2015 Chevrolet Volt and 2014-2016 Cadillac ELR applications. It is shaped to match the original pan dimensions and mounting layout, helping restore proper oil containment on vehicles that need an OE-style replacement. The aluminum construction, 3.7 capacity, front sump layout, and hydraulic pump type configuration align with the listed fitment requirements. This part cross-references GM 55568940 and GMP126A for the same application. Use Dorman 264-268 when you need a replacement oil pan for a Chevrolet Volt or Cadillac ELR with the correct engine configuration.
What It Is Used For
- Replacing a cracked or leaking engine oil pan
- Restoring proper engine oil containment
- Addressing damaged drain threads or a worn drain plug area
- Correcting oil loss caused by impact or corrosion
- Returning a Chevrolet Volt or Cadillac ELR to OE-style fitment
Installation Notes and Tips
Verify engine code, pan shape, and mounting pattern before installation. Clean the sealing surface thoroughly and replace the gasket or seal separately, since it is not included. Confirm the drain plug thread size is M14 x 1.5 and inspect the mating components for damage before assembly. For fitment, this part fits 2011-2015 Chevrolet Volt and 2014-2016 Cadillac ELR.
Quality Assurance
Dorman designs this oil pan as a precision-engineered replacement for the original equipment part on the listed vehicles. The part number 264-268 is built to match the OE pan dimensions and mounting points for the specified applications.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2016 | Cadillac | ELR | 1.4L | L4 | — |
| 2015 | Cadillac | ELR | 1.4L | L4 | — |
| 2015 | Chevrolet | Volt | 1.4L | L4 | — |
| 2014 | Cadillac | ELR | 1.4L | L4 | — |
| 2014 | Chevrolet | Volt | 1.4L | L4 | — |
| 2013 | Chevrolet | Volt | 1.4L | L4 | — |
| 2012 | Chevrolet | Volt | 1.4L | L4 | — |
| 2011 | Chevrolet | Volt | 1.4L | L4 | — |
