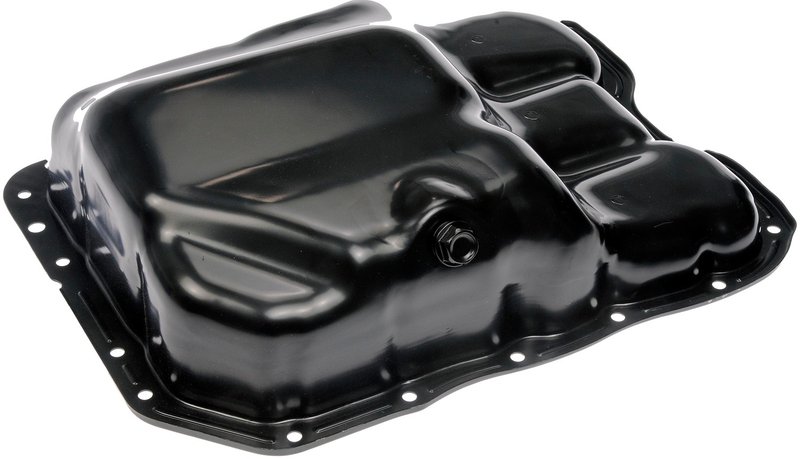

Dorman 264-276 Engine Oil Pan

Engine Oil Pan for Hyundai and Kia Applications

This Dorman engine oil pan is precision-engineered to match the original equipment pan on specific Hyundai and Kia vehicles. Built from steel with a black finish, Dorman 264-276 provides a direct replacement for a leaking or damaged oil pan on select 2015-2020 models.

• Steel construction for OE-style fit and durability
• Black finish
• 4-quart capacity
• Baffled design
• Drain plug included
• Center sump, wet sump configuration
• 17 bolt holes for application-specific mounting
• M14 x 1.5 drain thread size

Detailed Product Overview

Dorman 264-276 is an engine oil pan designed for direct replacement on select Hyundai Elantra, Elantra GT, Kona, Tucson, Veloster, Sonata, ix35, and Kia Forte, Forte5, Forte Koup, Optima, Rondo, Soul, and related applications. The steel pan measures 17.12 inches long, with a maximum width of 9.5 inches and a depth range from 4.312 to 4.437 inches. Its baffled construction helps maintain oil control in the pan, while the center sump layout matches the original configuration on the listed vehicles. This part cross-references Hyundai/Kia OE number 215102E023 and Spectra Premium HYP32A for the same application.

Vehicle Fitment

• Fits 2015-2020 Hyundai Elantra, N/A
• Fits 2015-2020 Hyundai Elantra GT, N/A
• Fits 2018-2020 Hyundai Kona, N/A
• Fits 2015-2020 Hyundai Tucson, N/A
• Fits 2019-2020 Hyundai Veloster, N/A
• Fits 2015-2020 Kia Forte, N/A
• Fits 2015-2020 Kia Forte5, N/A
• Fits 2017-2020 Kia Optima, N/A
• Fits 2015-2020 Kia Soul, N/A
• Fits 2016-2019 Hyundai Sonata, N/A
• Fits 2015-2017 Kia Forte Koup, N/A
• Fits 2015-2017 Kia Rondo, N/A
• Fits 2015 Hyundai ix35, N/A

Common Repair Uses

• Oil pan leaks from corrosion, impact damage, or worn sealing surfaces
• Cracked or dented pan housing after road debris contact
• Oil loss caused by a damaged drain plug area
• Replacement after service damage to the original pan
• Restoration of proper oil containment on the engine block

Installation Notes and Tips

Verify engine code and pan style before installation, since fitment is specific to listed Hyundai and Kia models. This oil pan does not include a gasket or seal, oil level sensor port, dipstick port, pickup, or installation hardware. Clean the mating surfaces thoroughly and inspect the drain plug threads before assembly. Dorman 264-276 is intended for vehicles that use a center-sump, wet-sump oil pan layout.

Quality Assurance

Dorman manufactures this oil pan as an OE-style replacement part for the listed applications. The design follows the original equipment pan shape and mounting pattern to support proper fitment on compatible Hyundai and Kia engines.
