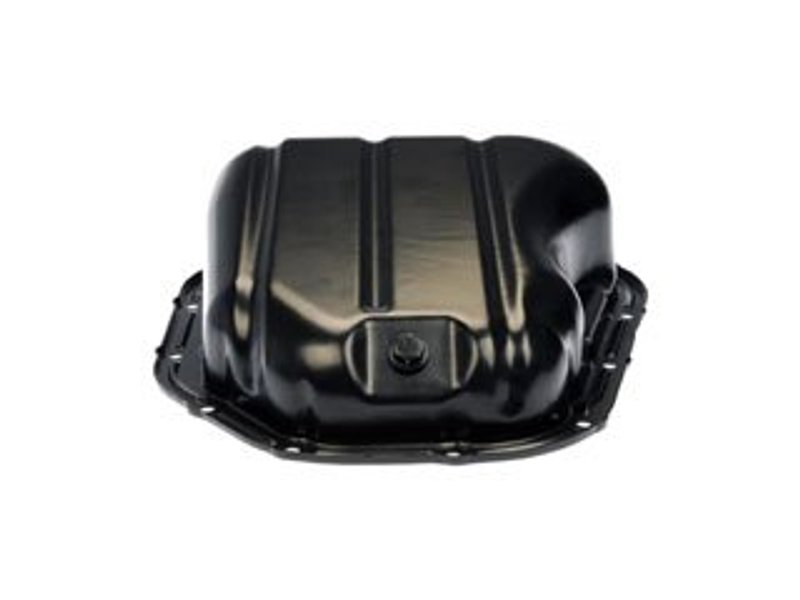

Dorman 264-316 Engine Oil Pan - Lower

Overview of Dorman Engine Oil Pan 264-316

The Dorman 264-316 engine oil pan is designed for reliable oil containment and drainage in select Lexus and Toyota vehicles. Constructed from durable steel, this oil pan offers a natural finish and is engineered to meet the specifications of models such as the Toyota Camry, Avalon, and Lexus RX series.

• Material: Steel construction for strength and durability
• Capacity: Holds up to 5 quarts of engine oil
• Dimensions: Length 13.39 inches, Maximum Width 12.01 inches, Maximum Depth 4.92 inches
• Drain Plug Included with M12x1.25 thread size for easy oil changes
• Sump Type: Wet sump with front sump location
• Mounting Holes: 12 for secure installation
• Color: Natural steel finish

Detailed Product Description

The Dorman 264-316 engine oil pan is a direct replacement part designed specifically for various Lexus and Toyota models, including the Avalon, Camry, ES300, ES330, Highlander, RX300, RX330, RX400h, Sienna, and Solara. Its steel construction ensures resistance to impact and corrosion, providing a long service life. The oil pan features a wet sump design with a front sump location, which is compatible with the engine configurations of these vehicles. The included drain plug with an M12x1.25 thread size facilitates straightforward oil changes without the need for additional parts. This oil pan does not include a pickup, crankshaft wiper, or windage tray, and it is not baffled, which aligns with the original equipment specifications for the listed models.

Common Applications and Problem Resolution

• Replacement for damaged or leaking oil pans in Lexus RX300 and RX330
• Fixes oil leaks caused by corrosion or impact on Toyota Camry and Avalon
• Restores proper oil containment and drainage in Toyota Highlander and Sienna
• Addresses oil pan damage from road debris or wear in Lexus ES300 and ES330
• Ensures correct fit and function for Toyota Solara and Lexus RX400h oil systems

Installation Notes and Tips

• Ensure the engine is cool before beginning installation to avoid burns
• Use a proper gasket or sealant as this oil pan does not include a gasket or seal
• Torque mounting bolts evenly to manufacturer specifications using the 12 mounting holes
• Replace the drain plug crush washer if applicable to prevent leaks
• Inspect the oil pickup and other internal components during installation as this pan does not include a pickup

Quality Assurance and Warranty

Dorman manufactures the 264-316 engine oil pan to meet or exceed OEM standards for fit, form, and function. The steel construction and precise engineering ensure durability and reliable performance. While installation hardware and gaskets are not included, the product is backed by Dorman's limited warranty against defects in material and workmanship, providing confidence in its quality and longevity.
