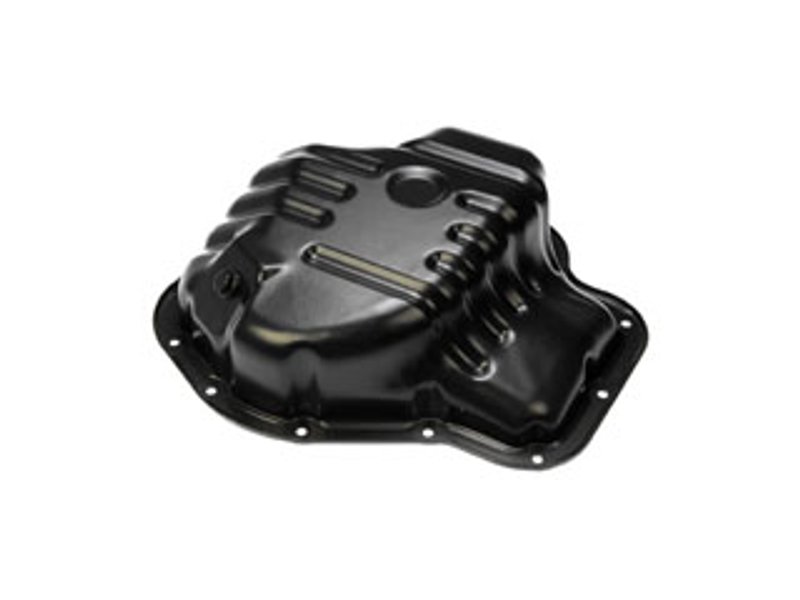

Dorman 264-317 Engine Oil Pan

Overview of Dorman Engine Oil Pan 264-317

The Dorman 264-317 engine oil pan is designed for reliable oil containment and drainage in select Toyota and Scion vehicles. Constructed from durable steel with a black finish, this oil pan offers a precise fit for models including the Toyota Camry, Corolla, Highlander, Matrix, RAV4, Solara, and Scion tC.

• Material: Steel construction for strength and durability
• Dimensions: 14.0 inches length, 12.91 inches maximum width, 4.45 inches maximum depth
• Color: Black finish for corrosion resistance
• Drain plug included with M12x1.25 thread size for easy oil changes
• Sump type: Wet with front sump location
• Mounting hole quantity: 14 for secure installation
• Compatible with Toyota and Scion models including Camry, Corolla, Highlander, Matrix, RAV4, Solara, and tC

Detailed Product Description

The Dorman 264-317 engine oil pan is engineered to meet OEM specifications for a precise fit and function. Made from robust steel, it provides a durable barrier to contain engine oil while resisting damage from road debris and corrosion. The pan features a wet sump design with the sump located at the front, facilitating efficient oil collection and circulation. The included drain plug with an M12x1.25 thread size allows for straightforward oil changes without additional parts. This oil pan does not include a gasket, crankshaft wiper, pickup, or windage tray, so these components must be sourced separately if needed. With 14 mounting holes, it ensures a secure and stable attachment to the engine block.

Compatible Vehicles and Applications

This engine oil pan is compatible with a range of Toyota and Scion vehicles, specifically designed to fit the following models:

• Toyota Camry
• Toyota Corolla
• Toyota Highlander
• Toyota Matrix
• Toyota RAV4
• Toyota Solara
• Scion tC

Common Issues Addressed by This Oil Pan

• Oil leaks caused by damaged or corroded factory oil pans
• Difficulty draining engine oil due to missing or faulty drain plugs
• Structural damage from road debris impacting the oil pan
• Corrosion and rust compromising oil containment
• Improper fitment leading to oil seepage or engine damage

Installation Notes and Tips

When installing the Dorman 264-317 oil pan, ensure the engine block surface is clean and free of old gasket material. Since this oil pan does not include a gasket or installation hardware, use a compatible gasket and appropriate bolts to secure the pan. Torque mounting bolts to manufacturer specifications to prevent leaks. Verify the drain plug is properly tightened and sealed to avoid oil seepage. It is recommended to inspect related components such as the oil pickup and crankshaft wiper during installation, as these are not included with this oil pan.

Quality Assurance and Warranty

Dorman engine oil pans are manufactured to meet or exceed OEM standards for fit, form, and function. The 264-317 part number undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
