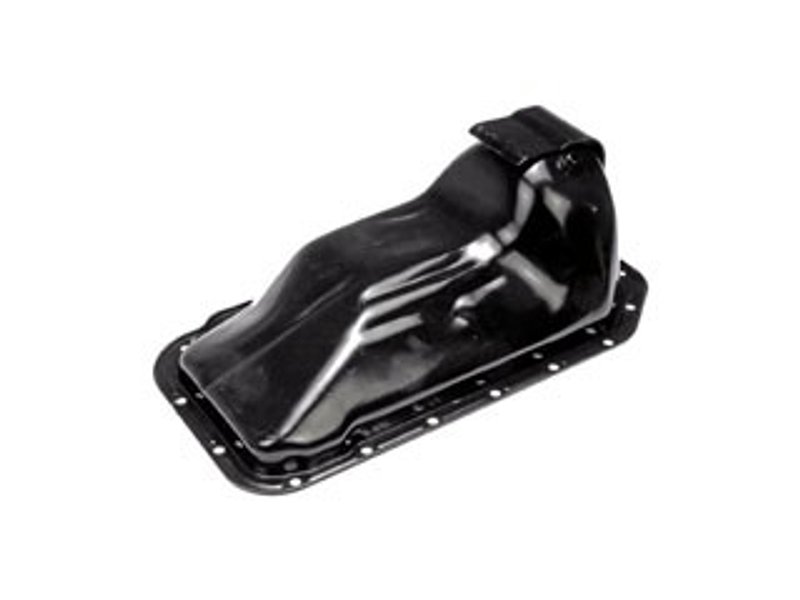

Dorman 264-326 Engine Oil Pan

OE-Style Oil Pan Replacement

This Dorman engine oil pan is built for specific Toyota applications and matches the original equipment pan shape and mounting layout for a direct replacement. It is a steel, black-finished pan with a rear sump and baffled design, made for 1979-1995 Toyota Pickup and 1984-1995 Toyota 4Runner applications.

Part number 264-326 is a practical choice when you need a replacement Toyota Pickup oil pan or Toyota 4Runner oil pan that follows OE-style dimensions and drain location.

Key Features

• Steel construction for durable engine oil containment
• Black finish for a clean OE-style appearance
• Baffled design helps manage oil movement inside the pan
• Rear sump, wet sump configuration
• Drain plug included
• 18 mounting holes for OE-style fitment
• Direct replacement for specific Toyota Pickup and Toyota 4Runner applications

Product Details

Dorman 264-326 is engineered to match the original equipment oil pan on select Toyota trucks and SUVs. The pan measures 19.9 inches long, 10.16 inches wide, and 7.4 inches deep, with a 14 mm drain thread size. It does not include a gasket or seal, pickup tube, dipstick port, or windage tray, so existing engine-specific components should be verified before installation. Cross-reference part numbers include ATP 103291 and Spectra Premium TOP08A for the same application.

Common Repair Reasons

• Leaking or rusted engine oil pan
• Damaged drain threads or drain plug sealing surface
• Oil loss from a cracked or corroded pan
• Improper sealing from a worn original pan
• Replacement after impact damage on the underside of the engine

Installation Notes

Confirm engine application, sump location, and mounting-hole layout before installation. Because no gasket or seal is included, use the correct sealing components for the vehicle and clean the mating surfaces thoroughly. Inspect the drain plug threads and verify clearance around the rear sump before filling with oil.

Quality Assurance

Dorman designs this oil pan as a precision-engineered replacement for specific OE applications, with fitment focused on Toyota Pickup and Toyota 4Runner models from 1979-1995. Part number 264-326 is built to follow the original pan configuration for reliable service.
