Home› Engine > Cylinder Block Components› Dorman 264-349 Engine Oil Pan
Dorman 264-349 Engine Oil PanOE Quality 60-Day Returns

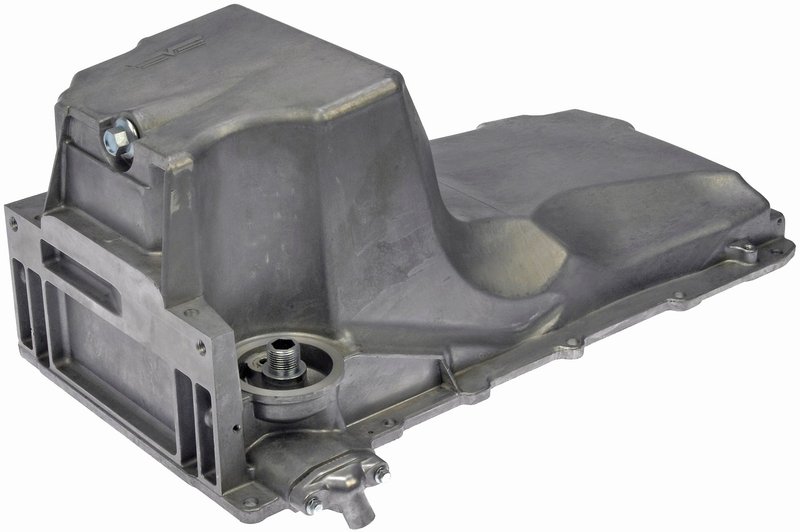

Dorman 264-349 Engine Oil Pan - view 1
Dorman 264-349 Engine Oil Pan - view 2
Part #: 264-349

Dorman 264-349 Engine Oil Pan

⚙️ 39 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$204.91Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Chevrolet and GMC, Express 2500, Express 3500, Savana 2500, Savana 3500, Sierra 1500, Silverado 1500, and Silverado 2500
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Engine Oil Pan options

OE-Style Engine Oil Pan Replacement

This Dorman engine oil pan is precision-engineered to match the original equipment pan on specific vehicle applications. It is built for drivers needing a direct replacement for a leaking or damaged oil pan on Chevrolet Express, GMC Savana, Silverado, and Sierra models.

  • Aluminum construction with a natural finish
  • 6-quart capacity
  • Baffled design with windage tray included
  • Oil level sensor port included
  • Engine oil cooler return fitting included
  • Drain plug included with 12 mm drain thread size
  • Center sump, wet sump design
  • 14 bolt holes for OE-style mounting
  • Length: 19.75 in; maximum width: 11.12 in

Fitment Details

Compatible with 2014-2018 Chevrolet Silverado 1500, 2017 Chevrolet Silverado 2500, 2014-2018 GMC Sierra 1500, 2018-2024 Chevrolet Express 2500, 2018-2024 Chevrolet Express 3500, 2018-2024 GMC Savana 2500, and 2018-2024 GMC Savana 3500.

Part number 264-349 is built to match OE dimensions and mounting points for the listed applications. This part cross-references Spectra Premium GMP100A for the same application.

What This Oil Pan Helps Address

  • Oil leaks from a cracked, corroded, or damaged pan
  • Improper sealing at the pan-to-block interface
  • Loss of oil capacity caused by pan damage
  • Sensor-port or drain-plug service issues on the original pan
  • Replacement needs after impact or corrosion-related failure

Installation Notes

Verify engine application, oil pan shape, and sensor-port configuration before installation. This oil pan does not include a gasket or seal, pickup, or installation hardware, so those components must be sourced separately as needed. Clean the mating surfaces thoroughly and inspect the drain plug threads and sealing surfaces before filling with oil.

Quality Assurance

Dorman designs this oil pan as an OE-style replacement for specific vehicle years, makes, and models, with attention to fit, function, and factory-style mounting. Part number 264-349 is intended for direct replacement use on the listed Chevrolet and GMC applications.

BrandDorman
Part Number264-349
MaterialAluminum
Capacity6
Maximum Width11.12
ColorNatural
Oil Level Sensor PortYes
BaffledYes
Crank Shaft Wiper IncludedNo
Maximum Depth7.937
Dipstick PortNo
Drain Plug IncludedYes
Engine Oil Cooler Return FittingYes
Minimum Depth7.375
Kick Out Type PanNo
Pickup IncludedNo
Sump LocationCenter
Sump TypeWet
Windage Tray IncludedYes
Gasket Or Seal IncludedNo
Drain Thread Size12
Pump TypeHydraulic
Bolt Hole Quantity14
Installation Hardware IncludedNo
Length19.75 in
Package Contents1 oil pan

This part fits 39 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2024ChevroletExpress 25004.3LV6N/A
2024ChevroletExpress 35004.3LV6N/A
2024GMCSavana 25004.3LV6N/A
2024GMCSavana 35004.3LV6N/A
2023ChevroletExpress 25004.3LV6N/A
2023ChevroletExpress 35004.3LV6N/A
2023GMCSavana 25004.3LV6N/A
2023GMCSavana 35004.3LV6N/A
2022ChevroletExpress 25004.3LV6N/A
2022ChevroletExpress 35004.3LV6N/A
2022GMCSavana 25004.3LV6N/A
2022GMCSavana 35004.3LV6N/A
2021ChevroletExpress 25004.3LV6N/A
2021ChevroletExpress 35004.3LV6N/A
2021GMCSavana 25004.3LV6N/A
2021GMCSavana 35004.3LV6N/A
2020ChevroletExpress 25004.3LV6N/A
2020ChevroletExpress 35004.3LV6N/A
2020GMCSavana 25004.3LV6N/A
2020GMCSavana 35004.3LV6N/A
2019ChevroletExpress 25004.3LV6N/A
2019ChevroletExpress 35004.3LV6N/A
2019GMCSavana 25004.3LV6N/A
2019GMCSavana 35004.3LV6N/A
2018ChevroletExpress 25004.3LV6N/A
2018ChevroletExpress 35004.3LV6N/A
2018ChevroletSilverado 15004.3LV6N/A
2018GMCSavana 25004.3LV6N/A
2018GMCSavana 35004.3LV6N/A
2018GMCSierra 15004.3LV6N/A
2017ChevroletSilverado 15004.3LV6N/A
2017ChevroletSilverado 25004.3LV6N/A
2017GMCSierra 15004.3LV6N/A
2016ChevroletSilverado 15004.3LV6N/A
2016GMCSierra 15004.3LV6N/A
2015ChevroletSilverado 15004.3LV6N/A
2015GMCSierra 15004.3LV6N/A
2014ChevroletSilverado 15004.3LV6N/A
2014GMCSierra 15004.3LV6N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

12629010GMP100A

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
