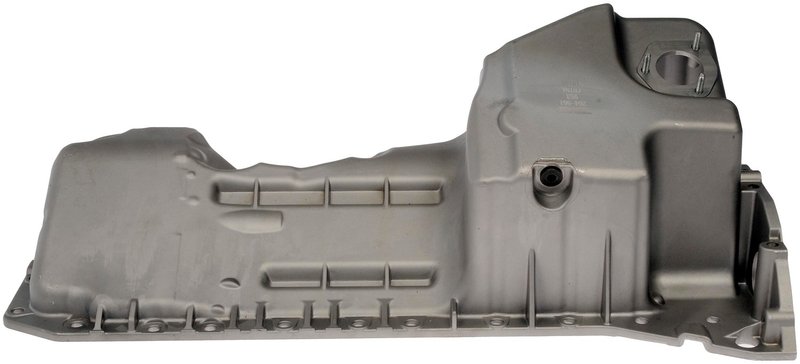

Dorman 264-398 Engine Oil Pan

Dorman 264-398 Engine Oil Pan for BMW

Dorman 264-398 is a direct replacement engine oil pan for select BMW applications, built to match the original equipment pan on specific years, makes, and models. It is made from aluminum and includes an oil level sensor port and drain plug for a service-ready replacement.

Key Features

• Aluminum construction with a natural finish
• Rear sump, wet-sump design
• Oil level sensor port included
• Drain plug included with M12 x 1.5 drain thread size
• 24 bolt holes for OE-style mounting
• Approximate capacity: 6.5
• Length: 25.187 in; maximum width: 12.187 in
• Maximum depth: 9.687 in; minimum depth: 9.625 in

Detailed Description

This Dorman oil pan is engineered as a replacement for BMW 640i, 535i, 740i, and related models that use a rear-sump, wet-sump oil pan configuration. Part number 264-398 is built to match the original pan’s fit and key service features, including the oil level sensor port and drain plug location, making it a practical choice for restoring proper engine oil containment on the BMW 535i, BMW 640i, and BMW 740Li applications listed below. This part cross-references Rein ESK0173 and Spectra Premium BMP17A for the same application.

What It Helps Address

• Oil leaks from a damaged or corroded oil pan
• Cracks or impact damage to the original pan
• Improper sealing at the pan-to-engine interface
• Loss of oil due to a compromised drain area
• Faults related to a missing or damaged oil level sensor port

Installation Notes and Tips

Verify engine code, oil pan style, and sensor-port configuration before installation. This oil pan does not include a gasket or seal, so the sealing components should be selected separately. Clean the mating surfaces thoroughly, inspect the drain plug threads, and confirm all 24 bolt holes align before tightening to specification. Compatible With 2012-2018 BMW 640i, N/A; 2013-2018 BMW 640i Gran Coupe, N/A; 2010-2017 BMW 535i GT, N/A; 2011-2016 BMW 535i, N/A; 2012-2016 BMW ActiveHybrid 5, N/A; 2010-2015 BMW 740i, N/A; 2011-2015 BMW 740Li, N/A; 2013-2015 BMW ActiveHybrid 7, N/A; 2012-2013 BMW 530i, N/A; 2012-2013 BMW 535i, N/A, L6 3.0L (2979cc); and 2011 BMW 528i, N/A.

Quality Assurance

Dorman manufactures replacement components engineered to match original equipment specifications for specific vehicle applications. Part number 264-398 is built for direct-fit replacement use on the listed BMW models.
