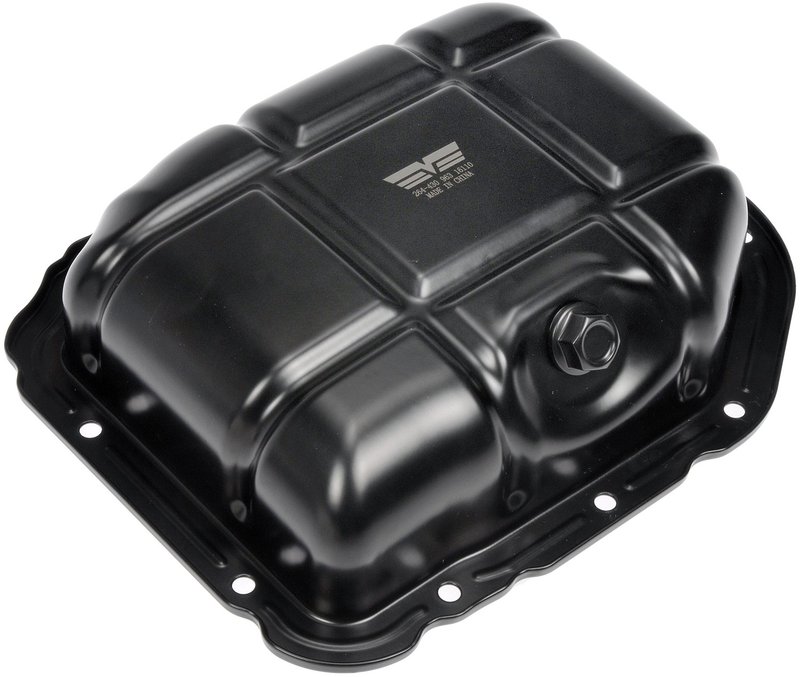

Dorman 264-430 Engine Oil Pan - Lower

OE-Style Engine Oil Pan Replacement

This Dorman engine oil pan is a direct replacement for specific Kia and Hyundai applications, including the lower oil pan on 2004-2006 Kia Amanti, 2002-2005 Hyundai XG350, and 2002-2005 Kia Sedona. Part number 264-430 is built to match the original equipment pan for a reliable repair when the factory pan is leaking or damaged.

Key Features

• Steel construction for strength and corrosion resistance
• Black finish for a clean OE-style appearance
• Front sump, wet sump design
• Drain plug included for service convenience
• 10 mounting holes for OE-style fitment
• Direct replacement for lower oil pan applications
• Cross-references ATP 103355 and Pioneer Automotive Industries 501296 for the same application

Detailed Product Overview

Dorman 264-430 is precision-engineered to match the original equipment oil pan on select Kia Amanti, Hyundai XG350, and Kia Sedona models. The steel pan measures 10.43 inches long, 8.5 inches wide, and 2.25 inches deep, with a front sump layout and 14 mm drain thread size. It is supplied as the oil pan only and does not include a gasket or seal, so the correct sealing components should be selected separately for the repair.

Common Problems This Part Can Address

• Oil leaks from a cracked, rusted, or warped oil pan
• Damaged drain threads or a leaking drain plug area
• Impact damage to the lower engine oil pan
• Improper sealing at the pan-to-block mating surface
• Service issues caused by a worn or distorted OE pan

Installation Notes and Tips

Verify engine and vehicle fitment before installation. This part fits 2004-2006 Kia Amanti, lower; 2002-2005 Hyundai XG350, lower; and 2002-2005 Kia Sedona, lower. Clean the sealing surface thoroughly, inspect the drain plug threads, and replace the gasket or seal as required since it is not included. Confirm that the front sump layout matches the original pan before assembly.

Quality Assurance

Dorman manufactures this oil pan as an OE-style replacement for specific vehicle applications, with dimensions and mounting points engineered to align with the original part. Part number 264-430 is built for direct-fit service on the listed Kia and Hyundai models.
