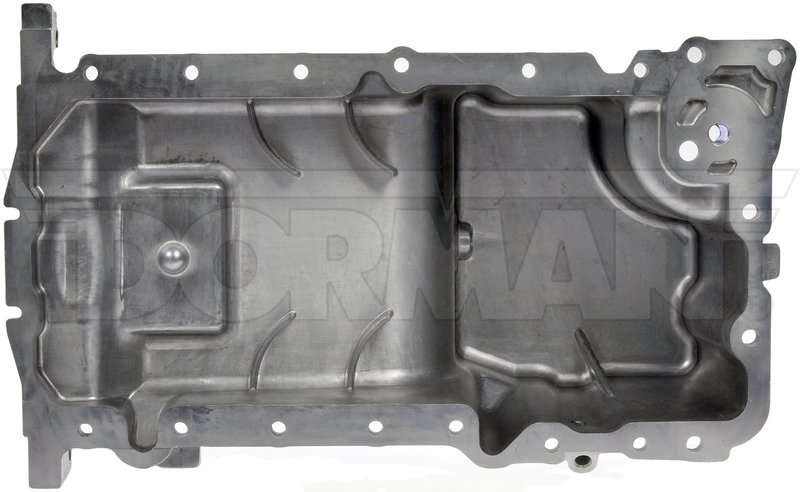

Dorman 264-520 Engine Oil Pan

OE-Style Engine Oil Pan Replacement

This Dorman engine oil pan is precision-engineered to match the original equipment pan on specific Chrysler and Dodge applications. It is a direct replacement for leaking or damaged pans on the 2006-2010 Chrysler 300, 2010 Dodge Challenger, 2006-2010 Dodge Charger, and 2006-2008 Dodge Magnum.

Built from aluminum with a natural finish, Dorman 264-520 is designed for a reliable seal and OE-style fit on the engine block. It includes a drain plug and dipstick port, and it uses a center wet sump layout with 20 mounting holes for proper installation alignment.

Key Features

• Aluminum construction with a natural finish
• Direct replacement oil pan for OE-style fitment
• 5-quart capacity
• Center sump, wet sump design
• Dipstick port included
• Drain plug included
• 20 mounting holes for secure attachment
• Drain thread size: 12

Detailed Product Overview

Dorman 264-520 is an engine oil pan replacement for Chrysler 300, Dodge Challenger, Dodge Charger, and Dodge Magnum applications listed above. The pan is precision-engineered to match the original equipment shape and mounting layout, helping restore proper oil containment after corrosion, impact damage, or a leaking factory pan. Part number 264-520 is also cross-referenced with 4892171AA and SK264520 for the same application.

This oil pan measures 19.5 inches long, 10.5 inches wide, and 7.5 inches deep. It is a natural aluminum pan with a center sump location, no baffles, no windage tray, and no gasket or seal included. The package contents include the oil pan only.

Common Problems This Part Can Address

• Engine oil leaks from a cracked or corroded pan
• Damaged drain threads or a stripped drain plug area
• Oil pan impact damage from road debris or bottoming out
• Poor sealing caused by a warped original pan
• Replacement needs after removal during engine service

Installation Notes and Tips

Before installation, verify the engine code, mounting hole layout, and sump configuration against the vehicle. Clean the mating surface thoroughly and inspect the gasket or seal separately, since it is not included with Dorman 264-520. Confirm drain plug thread size and torque fasteners evenly to help prevent leaks.

Compatible with 2006-2010 Chrysler 300, 2010 Dodge Challenger, 2006-2010 Dodge Charger, and 2006-2008 Dodge Magnum. For fitment-specific searches, this part is commonly referenced as an engine oil pan replacement for Chrysler 300 and Dodge Charger applications.

Quality Assurance

Dorman designs this oil pan as a precision replacement for the original equipment part on the listed vehicles. Its OE-style construction and application-specific fitment support consistent installation and dependable service.
