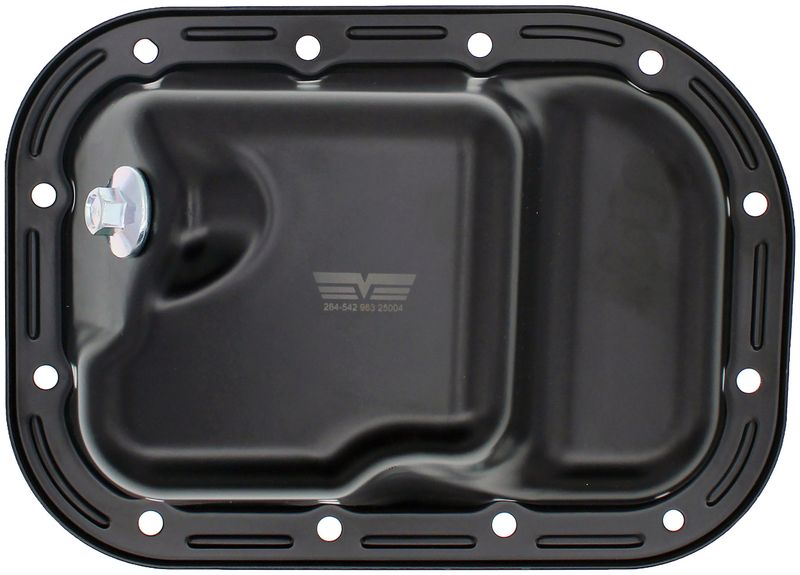

Dorman 264-542 Engine Oil Pan - Lower
| Brand | Dorman 264-542 |
|---|---|
| Position | Lower |
| Material | Aluminio |
| Material | Aluminum |
| Capacity | 6 |
| Length | 10.1 |
| Maximum Width | 7.5 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Oil Level Sensor Port | No |
| Oil Level Sensor Port | Non |
| Baffled | No |
| Baffled | Non |
| Crank Shaft Wiper Included | No |
| Crank Shaft Wiper Included | Non |
| Maximum Depth | 3 |
| Dipstick Port | No |
| Dipstick Port | Non |
| Drain Plug Included | Oui |
| Drain Plug Included | Sí |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Engine Oil Cooler Return Fitting | Non |
| Minimum Depth | 1 |
| Minimum Depth | 1 in |
| Kick Out Type Pan | No |
| Kick Out Type Pan | Non |
| Pickup Included | No |
| Pickup Included | Non |
| Sump Location | Avant |
| Sump Location | Delantero |
| Fits | Jeep · 14 vehicles |
Standard replacement. Precision-engineered to match the original equipment pan.
Aluminum construction. Lightweight material with a painted finish for added protection.
Drain plug included. Ready for service with a wet sump design.
Cross-references 68313584AA, 68313584AB and 68313584AC for the same application. See all 4.
Engine Oil Pan for Jeep Wrangler
This Dorman engine oil pan is a direct-fit replacement for select 2018-2025 Jeep Wrangler models with a lower mounting position. Built from aluminum with a painted black finish, it matches the original equipment style for a clean, service-ready repair. Part number 264-542 is a practical choice when the factory pan is leaking or damaged.
Key Features
- Fits 2018-2025 Jeep Wrangler, lower
- Aluminum construction with painted black finish
- Standard replacement design for OE-style fitment
- Front sump layout with wet sump configuration
- Drain plug included with 14mm x 1.5 drain thread size
- 12 mounting holes for secure installation
- Compatible with mechanical pump applications
- Part number 264-542 for easy identification
Detailed Description
Dorman 264-542 is precision-engineered to match the original equipment oil pan on specific Jeep Wrangler applications. It is built for the 2018-2025 Jeep Wrangler, lower position, and uses an aluminum body with a painted finish to support a factory-style repair. The pan is configured with a front sump, wet sump design, no dipstick port, no oil level sensor port, and no gasket or seal included. This part cross-references Mopar applications such as 68313584AA and 68313584AB for the same application.
Common Repair Reasons
- Oil leaking from a cracked or corroded pan
- Damaged drain threads or stripped drain plug area
- Impact damage from road debris or off-road contact
- Warped sealing surface causing persistent seepage
- Replacement after removal during engine service
Installation Notes and Tips
Verify the vehicle is a 2018-2025 Jeep Wrangler with the lower oil pan configuration before ordering. Confirm the 14mm x 1.5 drain thread size and the 12-hole mounting pattern during installation. Transfer any required components from the original setup as needed, since installation hardware, gasket, and seal are not included. Clean the mating surface thoroughly and inspect the engine block flange for damage before tightening to specification.
Quality Assurance
Dorman manufactures this oil pan as a standard replacement part engineered to match OE dimensions and application details for the listed Jeep Wrangler fitment. Part number 264-542 is built to restore proper oil containment and serviceability on the specified vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2025 | Jeep | Gladiator | 3.6L | V6 | Lower | — |
| 2025 | Jeep | Wrangler | 3.6L | V6 | Lower | — |
| 2024 | Jeep | Gladiator | 3.6L | V6 | Lower | — |
| 2024 | Jeep | Wrangler | 3.6L | V6 | Lower | — |
| 2023 | Jeep | Gladiator | 3.6L | V6 | Lower | — |
| 2023 | Jeep | Wrangler | 3.6L | V6 | Lower | — |
| 2022 | Jeep | Gladiator | 3.6L | V6 | Lower | — |
| 2022 | Jeep | Wrangler | 3.6L | V6 | Lower | — |
| 2021 | Jeep | Gladiator | 3.6L | V6 | Lower | — |
| 2021 | Jeep | Wrangler | 3.6L | V6 | Lower | — |
| 2020 | Jeep | Gladiator | 3.6L | V6 | Lower | — |
| 2020 | Jeep | Wrangler | 3.6L | V6 | Lower | — |
| 2019 | Jeep | Wrangler | 3.6L | V6 | Lower | — |
| 2018 | Jeep | Wrangler | 3.6L | V6 | Lower | — |
| No rows match your filter. | ||||||
