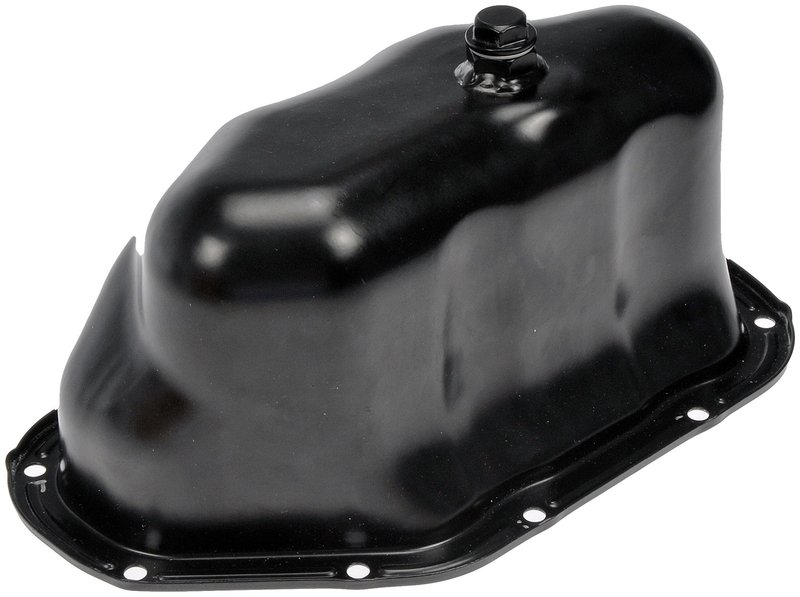

Dorman 264-550 Engine Oil Pan - Lower

Engine Oil Pan Replacement for Suzuki V6 Applications

This Dorman engine oil pan is precision-engineered to match the original equipment pan on specific Suzuki vehicles for a direct replacement. Built from steel with a black finish, it includes a drain plug and uses a rear sump, wet sump design for the listed applications.

Compatible with 1999-2005 Suzuki Grand Vitara, lower; 2002-2006 Suzuki XL-7, lower; and 2004 Suzuki Vitara, lower. Dorman 264-550 is a practical choice when the original pan is damaged, corroded, or leaking.

Key Features

• Steel construction for OE-style fit and function
• Black finish for a clean replacement appearance
• Rear sump, wet sump configuration
• Drain plug included for service convenience
• 10 mounting holes for the listed vehicle applications
• Direct replacement for Suzuki Grand Vitara, XL-7, and Vitara oil pan applications

Detailed Description

Dorman 264-550 is an engine oil pan designed to match the original equipment pan on specific Suzuki models. The steel construction, rear sump layout, and OE-style dimensions help restore proper oil containment on the engine block. This oil pan is intended for lower-position applications on the 1999-2005 Suzuki Grand Vitara, 2002-2006 Suzuki XL-7, and 2004 Suzuki Vitara. The part number 264-550 is also referenced by cross-market listings for the same application, including ATP 103385.

Common Problems This Part Can Address

• Oil leaking from a cracked or rusted pan
• Damaged drain threads or a worn drain plug sealing surface
• Corrosion on the original steel oil pan
• Impact damage from road debris or underbody contact
• Oil loss caused by a warped or compromised pan flange

Installation Notes and Tips

Verify the vehicle year, make, model, and lower-position fitment before installation. Transfer any required sealing components not included with the pan, since the gasket or seal is not included. Clean the mounting surface thoroughly, inspect the drain plug threads, and confirm proper torque during installation. This Dorman 264-550 oil pan is a direct-fit replacement for the listed Suzuki applications, including Grand Vitara and XL-7 models.

Quality Assurance

Dorman designs this oil pan to match original equipment specifications for the listed vehicles. It is built as a replacement part for specific Suzuki engine applications and is supplied as the oil pan only.
