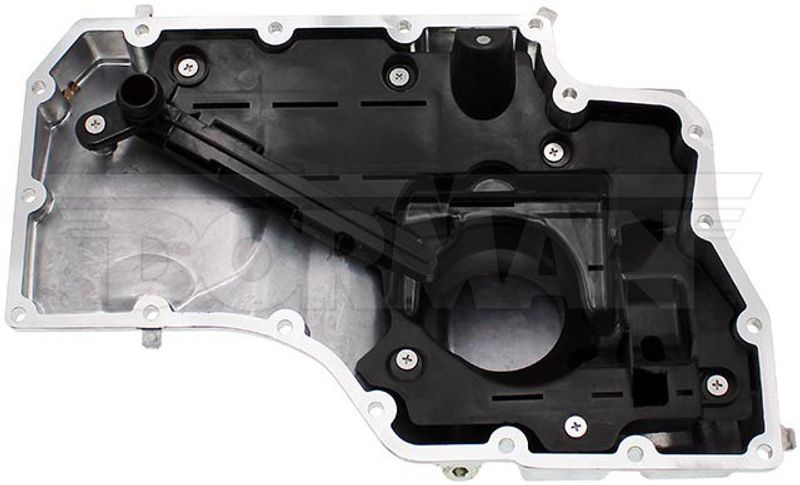

Dorman 264-553 Engine Oil Pan - Lower
| Brand | Dorman 264-553 |
|---|---|
| Position | Lower |
| Material | Acero |
| Material | Aluminio |
| Material | Aluminum |
| Material | Magnetic oxide |
| Material | Óxido magnético |
| Material | Plastic |
| Material | Plástico |
| Material | Steel |
| 11593 | Metric |
| 11593 | Métrico |
| Capacity | 5.5 |
| Length | 423 |
| Maximum Width | 283 |
| Color | Black |
| Color | Gray |
| Color | Gris |
| Color | Negro |
| Oil Level Sensor Port | Oui |
| Oil Level Sensor Port | Sí |
| Oil Level Sensor Port | Yes |
| Baffled | Oui |
| Baffled | Sí |
| Baffled | Yes |
| Crank Shaft Wiper Included | No |
| Crank Shaft Wiper Included | Non |
| Maximum Depth | 130 |
| Dipstick Port | No |
| Dipstick Port | Non |
| Drain Plug Included | Oui |
| Drain Plug Included | Sí |
| Fits | Audi and Porsche · 107 vehicles |
OE FIX design. Replaces the lower half of a two-piece oil pan with a more durable aluminum construction.
Magnetic drain plug. Includes an angled mount boss for more complete draining during service.
Baffled wet sump. Built with an oil level sensor port and standard replacement layout.
Cross-references Rein ESK0240, Spectra Premium VWP60A and 06L103598R for the same application. See all 4.
OE Fix Oil Pan Design
This Dorman engine oil pan replaces the lower half of the original two-piece plastic pan with a die-cast aluminum design that better resists heat, corrosion, and impact. It is a standard replacement for select Audi and Porsche applications and is built around the lower pan section only.
Part number 264-553 is engineered for buyers who need a durable replacement for a warped or cracked lower oil pan section. The design includes a magnetic drain plug with an angled mount boss for more complete draining, and it retains a wet sump layout with a baffled construction.
- Die-cast aluminum lower pan section for improved resistance to heat and impact
- Magnetic drain plug included with angled mount boss for more complete draining
- Baffled wet sump design
- Oil level sensor port included
- Standard replacement construction for select Volkswagen-based applications
Fitment Details
Compatible with select lower oil pan applications for Audi A4, Audi A4 allroad, Audi A4 Quattro, Audi A5, Audi A5 Quattro, Audi A5 Sportback, Audi A6, Audi A6 Quattro, Audi A7 Sportback, Audi Q5, Audi Q5 PHEV, Audi Q5 Sportback, Audi Q7, and Porsche Macan. Fits 2017-2025 Audi A4, Lower; 2017-2025 Audi A4 allroad, Lower; 2017-2025 Audi A4 Quattro, Lower; 2018-2019 Audi A5, Lower; 2018-2026 Audi A5 Quattro, Lower; 2018-2025 Audi A5 Sportback, Lower; 2021-2026 Audi A6, Lower; 2021-2026 Audi A6 Quattro, Lower; 2021-2025 Audi A7 Sportback, Lower; 2018-2025 Audi Q5, Lower; 2020-2025 Audi Q5 PHEV, Lower; 2021-2025 Audi Q5 Sportback, Lower; 2016-2026 Audi Q7, Lower; 2019-2026 Porsche Macan, Lower; 2021-2026 Audi A5, Lower.
Installation Notes
Verify the lower pan configuration before ordering, since this part replaces the lower half of a two-piece oil pan assembly. Confirm sensor port, drain plug, and sump layout against the original part before installation.
Quality Assurance
Dorman OE FIX parts are engineered to address common failure points in original designs by changing the material and construction of the replacement component. This part cross-references Spectra Premium (e.g., VWP60A) for the same application.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2026 | Audi | A5 | 2.0L | L4 | — | Lower | — |
| 2026 | Audi | A5 Quattro | 2.0L | L4 | — | Lower | — |
| 2026 | Audi | A6 | 2.0L | L4 | — | Lower | — |
| 2026 | Audi | A6 Quattro | 2.0L | L4 | — | Lower | — |
| 2026 | Audi | Q7 | 2.0L | L4 | — | Lower | — |
| 2026 | Porsche | Macan | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | A4 | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | A4 allroad | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | A4 Quattro | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | A5 | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | A5 Quattro | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | A5 Sportback | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | A6 | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | A6 Quattro | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | A7 Sportback | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | Q5 | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | Q5 PHEV | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | Q5 Sportback | 2.0L | L4 | — | Lower | — |
| 2025 | Audi | Q7 | 2.0L | L4 | — | Lower | — |
| 2025 | Porsche | Macan | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | A4 | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | A4 allroad | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | A4 Quattro | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | A5 | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | A5 Quattro | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | A5 Sportback | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | A6 | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | A6 Quattro | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | A7 Sportback | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | Q5 | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | Q5 PHEV | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | Q5 Sportback | 2.0L | L4 | — | Lower | — |
| 2024 | Audi | Q7 | 2.0L | L4 | — | Lower | — |
| 2024 | Porsche | Macan | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | A4 | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | A4 allroad | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | A4 Quattro | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | A5 | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | A5 Quattro | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | A5 Sportback | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | A6 | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | A6 Quattro | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | A7 Sportback | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | Q5 | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | Q5 PHEV | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | Q5 Sportback | 2.0L | L4 | — | Lower | — |
| 2023 | Audi | Q7 | 2.0L | L4 | — | Lower | — |
| 2023 | Porsche | Macan | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | A4 | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | A4 allroad | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | A4 Quattro | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | A5 | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | A5 Quattro | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | A5 Sportback | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | A6 | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | A6 Quattro | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | A7 Sportback | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | Q5 | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | Q5 PHEV | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | Q5 Sportback | 2.0L | L4 | — | Lower | — |
| 2022 | Audi | Q7 | 2.0L | L4 | — | Lower | — |
| 2022 | Porsche | Macan | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | A4 | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | A4 allroad | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | A4 Quattro | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | A5 | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | A5 Quattro | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | A5 Sportback | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | A6 | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | A6 Quattro | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | A7 Sportback | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | Q5 | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | Q5 PHEV | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | Q5 Sportback | 2.0L | L4 | — | Lower | — |
| 2021 | Audi | Q7 | 2.0L | L4 | — | Lower | — |
| 2021 | Porsche | Macan | 2.0L | L4 | — | Lower | — |
| 2020 | Audi | A4 | 2.0L | L4 | GAS | Lower | — |
| 2020 | Audi | A4 allroad | 2.0L | L4 | — | Lower | — |
| 2020 | Audi | A4 Quattro | 2.0L | L4 | GAS | Lower | — |
| 2020 | Audi | A5 Quattro | 2.0L | L4 | GAS | Lower | — |
| 2020 | Audi | A5 Sportback | 2.0L | L4 | GAS | Lower | — |
| 2020 | Audi | Q5 | 2.0L | L4 | GAS | Lower | — |
| 2020 | Audi | Q5 PHEV | 2.0L | L4 | — | Lower | — |
| 2020 | Audi | Q7 | 2.0L | L4 | — | Lower | — |
| 2020 | Porsche | Macan | 2.0L | L4 | — | Lower | — |
| 2019 | Audi | A4 | 2.0L | L4 | GAS | Lower | — |
| 2019 | Audi | A4 allroad | 2.0L | L4 | — | Lower | — |
| 2019 | Audi | A4 Quattro | 2.0L | L4 | GAS | Lower | — |
| 2019 | Audi | A5 | 2.0L | L4 | GAS | Lower | — |
| 2019 | Audi | A5 Quattro | 2.0L | L4 | GAS | Lower | — |
| 2019 | Audi | A5 Sportback | 2.0L | L4 | GAS | Lower | — |
| 2019 | Audi | Q5 | 2.0L | L4 | GAS | Lower | — |
| 2019 | Audi | Q7 | 2.0L | L4 | — | Lower | — |
| 2019 | Porsche | Macan | 2.0L | L4 | — | Lower | — |
| 2018 | Audi | A4 | 2.0L | L4 | GAS | Lower | — |
| 2018 | Audi | A4 allroad | 2.0L | L4 | — | Lower | — |
| 2018 | Audi | A4 Quattro | 2.0L | L4 | GAS | Lower | — |
| 2018 | Audi | A5 | 2.0L | L4 | GAS | Lower | — |
| 2018 | Audi | A5 Quattro | 2.0L | L4 | GAS | Lower | — |
| 2018 | Audi | A5 Sportback | 2.0L | L4 | GAS | Lower | — |
| 2018 | Audi | Q5 | 2.0L | L4 | GAS | Lower | — |
| 2018 | Audi | Q7 | 2.0L | L4 | — | Lower | — |
| 2017 | Audi | A4 | 2.0L | L4 | GAS | Lower | — |
| 2017 | Audi | A4 allroad | 2.0L | L4 | — | Lower | — |
| 2017 | Audi | A4 Quattro | 2.0L | L4 | GAS | Lower | — |
| 2017 | Audi | Q7 | 2.0L | L4 | — | Lower | — |
| 2016 | Audi | Q7 | 2.0L | L4 | — | Lower | — |
