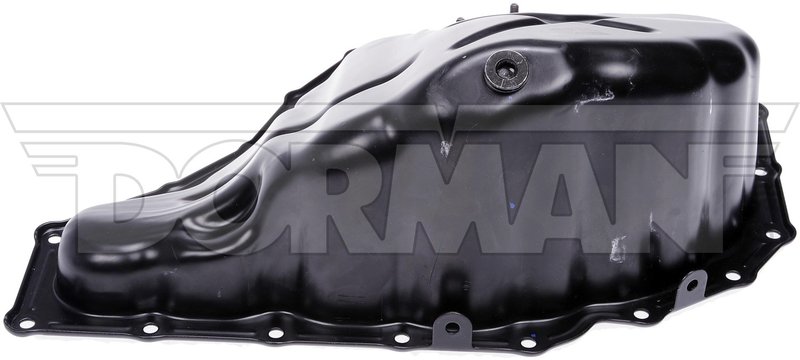

Dorman 264-557 Engine Oil Pan - Lower

OE-Style Oil Pan Replacement

Dorman 264-557 is a steel engine oil pan engineered to match the original equipment pan on specific Audi applications. It is built for lower-engine mounting and includes an oil level sensor port and drain plug for a direct replacement on select Audi A4, A4 Quattro, A4 allroad, A5, A5 Quattro, A6, A6 Quattro, allroad, and Q5 models.

For Audi A4 oil pan replacement or Audi Q5 lower oil pan service, this part number 264-557 provides the OE-style fit and layout needed for a proper repair.

Key Features

• Steel construction with a black finish
• Precision-engineered to match the original equipment pan on listed vehicles
• Oil level sensor port included
• Drain plug included
• Front sump, wet-sump design
• 19 mounting holes for OE-style installation
• Capacity: 4.9
• Dimensions: 15.75 in. long, 11.25 in. maximum width, 5.5 in. maximum depth

Detailed Description

Dorman 264-557 is a replacement engine oil pan for select 2009-2017 Audi vehicles. The steel pan is shaped for the lower engine position and uses a front sump layout, making it a direct-fit solution for applications that require the original pan configuration. It includes an oil level sensor port and drain plug, while omitting features such as a dipstick port, baffling, windage tray, and pickup provisions. This part cross-references Spectra Premium VWP43A and URO 06H103600AA for the same application.

Compatible With: 2010-2017 Audi A5 Quattro, lower; 2010-2017 Audi Q5, lower; 2009-2016 Audi A4, lower; 2013-2016 Audi A4 allroad, lower; 2009-2016 Audi A4 Quattro, lower; 2010-2016 Audi A5, lower; 2013-2016 Audi allroad, lower; 2012-2015 Audi A6, lower; 2013-2015 Audi A6 Quattro, lower.

Common Repair Uses

• Replacing a leaking or damaged engine oil pan
• Restoring proper oil containment after impact or corrosion
• Repairing stripped or damaged drain plug threads
• Addressing oil seepage around the lower engine area
• Replacing a pan with a failed oil level sensor port seal area

Installation Notes and Tips

Confirm the vehicle’s lower oil pan configuration, front sump layout, and sensor-port requirements before installation. Transfer any required sensors or related components from the original assembly if applicable, and inspect the mating surface for debris or damage before sealing. A new gasket or seal is not included, so use the correct sealing components specified for the vehicle.

Quality Assurance

Dorman designs this oil pan as an OE-style replacement for the listed Audi applications, with dimensions and mounting points engineered to align with the original part layout. Part number 264-557 is built for direct replacement use on the specified vehicles.
