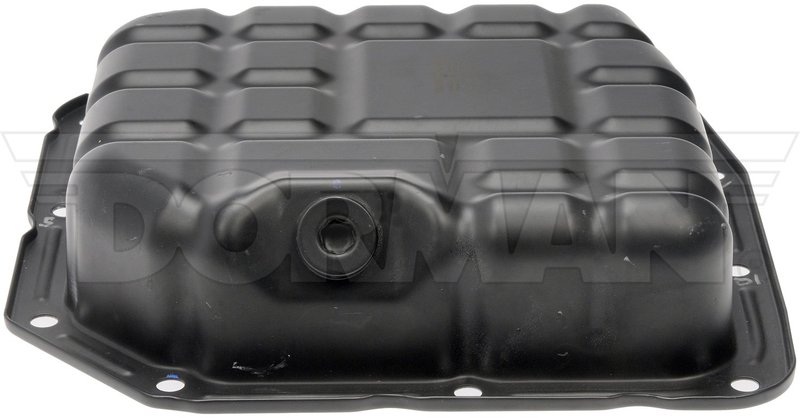

Dorman 264-564 Engine Oil Pan - Lower

Engine Oil Pan Replacement

Restore proper oil containment with this Dorman engine oil pan, part number 264-564. It is precision-engineered to match the original equipment pan on specific Hyundai Elantra applications for a direct replacement that supports reliable sealing and drainage.

Compatible with 2007-2012 Hyundai Elantra lower engine applications, this steel oil pan is built for the wet sump layout used on the listed vehicles. The black finish, center sump location, and included drain plug make it a practical OE-style replacement for a leaking or damaged pan.

Key Features

• Steel construction for durable engine oil containment
• OE-style replacement for specific Hyundai Elantra fitments
• Black finish for a clean factory-style appearance
• Center sump, wet sump design
• Drain plug included
• 11 mounting holes for proper attachment
• Drain thread size: 14
• Part number 264-564

Detailed Description

Dorman 264-564 is an engine oil pan designed for direct replacement on select Hyundai Elantra models. It follows the original equipment pan’s general form and mounting layout, helping maintain proper oil storage and drainage in the lower engine area. This oil pan is made from steel and measures 8.25 inches long by 8.25 inches wide with a 2.25-inch maximum depth and 4.25 capacity.

This part cross-references Spectra Premium HYP04B for the same application. If you are replacing a leaking Hyundai Elantra oil pan, part number 264-564 provides a straightforward OE-style solution for the listed 2007-2012 Hyundai Elantra lower applications, including 2007-2010 Hyundai Elantra lower with Federal Emissions.

What It Helps Address

• Oil leaks from a cracked, rusted, or damaged oil pan
• Oil loss caused by a failed drain plug area
• Improper sealing at the lower engine oil pan surface
• Replacement needs after impact damage to the pan
• Corrosion-related deterioration on steel pan applications

Installation Notes and Tips

Verify engine code and emissions configuration before installation, especially on 2007-2010 Hyundai Elantra lower Federal Emissions applications. This oil pan does not include a gasket or seal, oil level sensor port, dipstick port, pickup, or installation hardware, so confirm all related sealing components are on hand before service. Clean the mating surfaces thoroughly and inspect the drain plug threads before filling with oil.

Quality Assurance

Dorman designs this oil pan to match original equipment dimensions and mounting requirements for the listed applications. Part number 264-564 is built as a direct replacement for select Hyundai Elantra models and is supported by Dorman’s OE-style replacement engineering approach.
