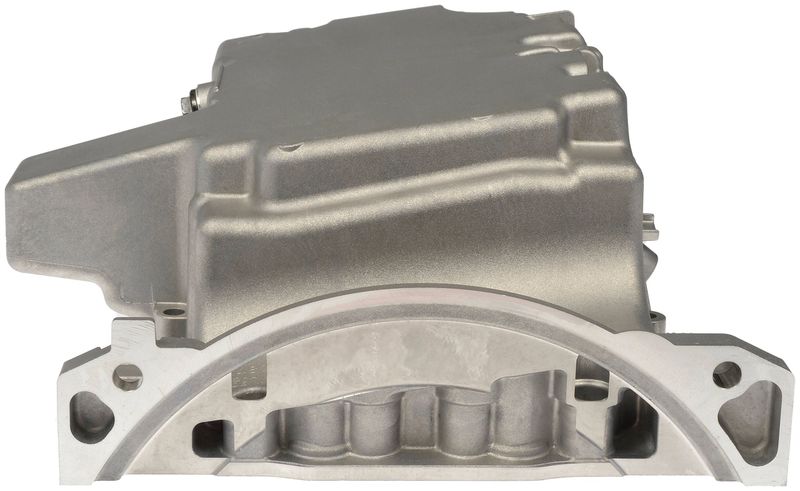

Dorman 264-573 Engine Oil Pan

Engine Oil Pan Replacement for Volvo Applications

This Dorman engine oil pan is a standard replacement for select Volvo models with a wet sump setup. Built from aluminum with a silver, uncoated finish, it is made to match the original equipment pan shape and mounting layout for a direct repair on the listed vehicles.

Part number 264-573 is a practical choice when the original pan is damaged, leaking, or no longer sealing correctly. It is compatible with select Volvo S60, V60, XC60, XC90, S80, XC70, S90, S60 Cross Country, V60 Cross Country, and V90 Cross Country applications.

Key Features

• Brand: Dorman
• Part number: 264-573
• Aluminum construction with silver, uncoated finish
• Standard replacement design for OE-style fitment
• Wet sump configuration with center sump location
• Dipstick port and drain plug included
• 19 mounting holes for proper installation alignment
• Designed without oil level sensor port, baffling, pickup, or windage tray

Detailed Product Overview

Dorman 264-573 is an engine oil pan engineered for specific Volvo engine applications where the original pan has cracked, corroded, or begun to leak. The aluminum body measures approximately 17 inches long and 11.9 inches wide, with a maximum depth of 5.5 inches and a minimum depth of 1 inch. It uses a center sump layout and includes a dipstick port and drain plug, while omitting features such as an oil level sensor port, crank shaft wiper, pickup, and gasket or seal.

This part cross-references Spectra Premium VOP09A for the same application. It is a direct-fit style replacement for Volvo S60, V60, XC60, XC90, S80, XC70, S90, S60 Cross Country, V60 Cross Country, and V90 Cross Country models listed below. Search terms such as Volvo S60 oil pan replacement, Volvo XC60 engine oil pan, and Dorman 264-573 oil pan apply to this part.

Common Problems This Part Can Address

• Engine oil leaking from a damaged or corroded oil pan
• Cracks or impact damage in the original pan
• Stripped or worn drain plug area
• Sealing issues caused by a warped pan flange
• Oil loss from a pan that no longer holds pressure at the sump

Installation Notes and Tips

Verify the vehicle’s engine configuration and compare the original pan before installation. Clean the mating surface thoroughly, inspect the drain plug threads, and replace the gasket or seal as required by the vehicle service procedure, since this pan does not include one. Confirm clearance around the center sump and check for any sensor or accessory differences before final assembly.

• Fits 2014-2018 Volvo S60, N/A
• Fits 2017-2018 Volvo S60 Cross Country, N/A
• Fits 2014-2018 Volvo V60, N/A
• Fits 2017-2018 Volvo V60 Cross Country, N/A
• Fits 2017 Volvo S90, N/A
• Fits 2017 Volvo V90 Cross Country, N/A
• Fits 2014-2017 Volvo XC60, N/A
• Fits 2016-2017 Volvo XC90, N/A
• Fits 2015-2016 Volvo S80, N/A
• Fits 2015-2016 Volvo XC70, N/A

Quality Assurance

Dorman manufactures replacement parts to match original equipment dimensions and function for specific vehicle applications. Part number 264-573 is built as a standard replacement oil pan for the listed Volvo models, with fitment coverage spanning 2014-2018 model years.
