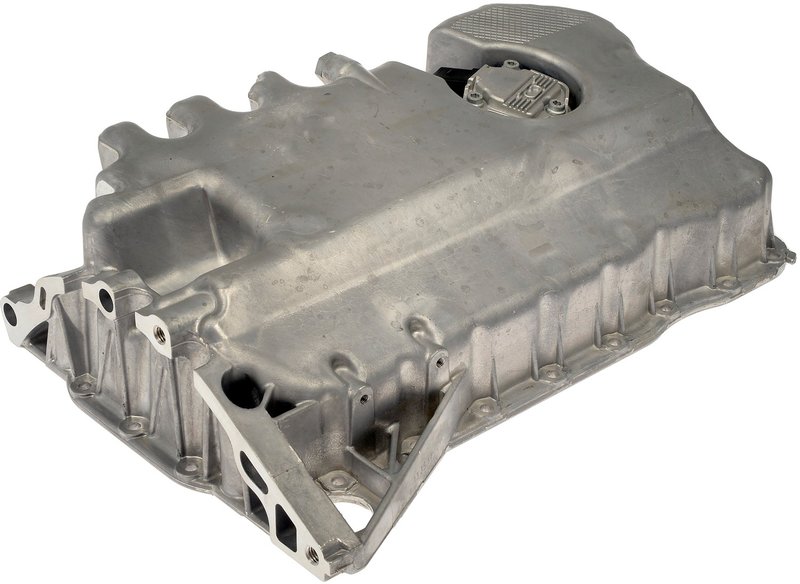

Dorman 264-580 Engine Oil Pan

OE-Style Engine Oil Pan Replacement

This Dorman engine oil pan is precision-engineered to match the original equipment pan on specific Audi and Volkswagen applications. It is built for vehicles with a center sump wet-sump layout and includes an oil level sensor port and drain plug for a direct replacement on the listed fitments.

Compatible with 2004-2010 Audi A3, A3 Quattro, TT Quattro, and 2007-2008 Volkswagen Eos and R32 applications, this Dorman 264-580 oil pan supports factory-style fitment where the original pan has cracked, corroded, or begun to leak. This part cross-references Spectra Premium VWP47A for the same application.

Key Features

• Aluminum construction with a natural finish
• Center sump, wet-sump design
• Oil level sensor port included
• Baffled pan design for controlled oil movement
• Drain plug included with M14 x 1.5 thread size
• 20 bolt holes for OE-style mounting
• Approximate capacity: 5.8
• Length: 18.12 in; maximum width: 12 in

Detailed Description

The Dorman 264-580 engine oil pan is built as a direct-fit replacement for select Audi and Volkswagen vehicles, including 2006-2009 Audi A3, 2004-2009 Audi A3 Quattro, 2007-2009 Audi TT Quattro, 2010 Audi TT Quattro, 2007-2008 Volkswagen Eos, and 2008 Volkswagen R32. Its aluminum construction helps match the original pan’s form and mounting layout, while the baffled design and center sump configuration support proper oil control in the engine.

Use this oil pan when the original pan is damaged, leaking, or no longer sealing correctly. The included drain plug and oil level sensor port help maintain factory-style serviceability on the listed applications. Dorman 264-580 is a practical replacement for Audi A3 oil pan and Volkswagen R32 oil pan service where OE fit and sensor-port location matter.

Common Problems This Part Can Address

• Engine oil leaks from a cracked or corroded oil pan
• Damaged drain plug threads or a leaking drain plug area
• Oil seepage around the pan sealing surface
• Improper fitment after prior repair or replacement
• Loss of oil level sensor mounting on equipped vehicles

Installation Notes and Tips

Confirm engine code, oil level sensor configuration, and pan shape before installation. This oil pan does not include a gasket or seal, so the sealing components must be sourced separately. Installation hardware is not included. Clean the mating surfaces thoroughly, inspect the oil pickup area, and verify the drain plug thread size before filling the engine with oil.

Quality Assurance

Dorman designs this oil pan to match original equipment dimensions and mounting points for the listed Audi and Volkswagen applications. The part number 264-580 is intended as an OE-style replacement for service repairs where factory fit and sensor-port placement are required.
