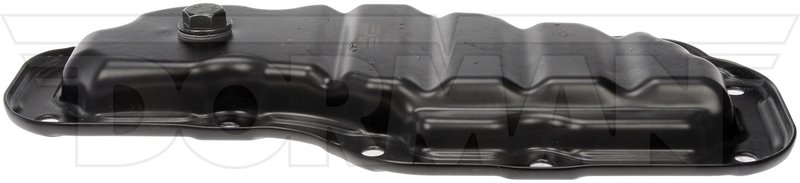

Dorman 264-595 Engine Oil Pan - Lower
Engine Oil Pan Replacement for Toyota Tundra and Sequoia
This Dorman engine oil pan is a direct replacement for select Toyota trucks and SUVs with a lower-mounted pan design. Built from steel with a black finish, it is engineered to match the original equipment pan for a reliable repair on oil pan leak applications.
Compatible with 2007-2009 Toyota Tundra, lower, and 2008-2009 Toyota Sequoia, lower. Part number 264-595 is a practical OE-style replacement for vehicles needing a new lower engine oil pan.
- Steel construction for durable engine oil containment
- Black finish for a clean replacement appearance
- Drain plug included for service convenience
- Center sump, wet sump design
- 10 mounting holes for OE-style fitment
- M12 x 1.5 drain thread size
- No gasket or seal included
Detailed Product Overview
Dorman 264-595 is a replacement engine oil pan designed to match the original equipment pan on specific Toyota applications. It measures 10.7 inches long, 5.7 inches wide, and 1 inch deep, with a center sump layout and no provisions for an oil level sensor port, dipstick port, pickup tube, or windage tray. This part cross-references Toyota 121020F020 and Spectra Premium TOP41A for the same application.
Common Repair Issues
- Oil leaking from a cracked or rusted oil pan
- Damaged drain plug threads or stripped drain opening
- Corrosion on the original steel pan
- Warped sealing surface causing seepage
- Replacement needed after impact damage to the lower pan
Installation Notes
Verify the vehicle application before installation. Because the gasket or seal is not included, reuse or replace the sealing components as required for the repair. Clean the mating surfaces thoroughly and inspect the drain plug threads before filling with oil. Confirm proper torque on all mounting fasteners to help prevent leaks after installation.
Quality Assurance
Dorman designs this oil pan as a precision-engineered replacement for the original equipment part on listed Toyota Tundra and Toyota Sequoia applications. Part number 264-595 is built to support a direct-fit repair approach for lower engine oil pan replacement.
| Brand | Dorman |
|---|---|
| Part Number | 264-595 |
| Material | Steel |
| Length | 10.7 |
| Maximum Width | 5.7 |
| Color | Black |
| Oil Level Sensor Port | No |
| Baffled | No |
| Crank Shaft Wiper Included | No |
| Maximum Depth | 1 |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Kick Out Type Pan | No |
| Pickup Included | No |
| Sump Location | Center |
| Sump Type | Wet |
| Windage Tray Included | No |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 10 |
| Drain Thread Size | M12x 1.5 |
| Capacity | 0 |
| Installation Hardware Included | No |
| Package Contents | Oil pan |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Toyota | Sequoia | 4.7L | V8 | Lower | |
| 2009 | Toyota | Tundra | 4.7L | V8 | Lower | |
| 2008 | Toyota | Sequoia | 4.7L | V8 | Lower | |
| 2008 | Toyota | Tundra | 4.7L | V8 | Lower | |
| 2007 | Toyota | Tundra | 4.7L | V8 | Lower |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
