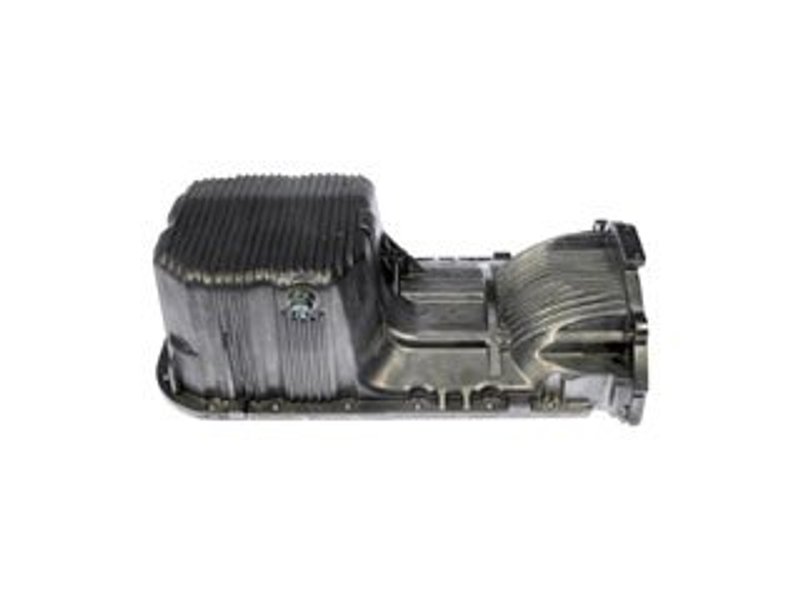

Dorman 264-605 Engine Oil Pan

Durable Aluminum Engine Oil Pan for Hyundai and Kia Vehicles

The Dorman 264-605 engine oil pan is designed to provide reliable oil containment and protection for select Hyundai and Kia models. Crafted from aluminum, this oil pan offers a natural finish and is engineered to meet the specific requirements of vehicles like the Hyundai Elantra, Tucson, and Kia Sportage.

• Constructed from lightweight, corrosion-resistant aluminum
• Dimensions: 18 inches length, 11 inches maximum width, 5.75 inches maximum depth
• Baffled design to reduce oil sloshing and maintain consistent oil supply
• Includes drain plug with 14mm thread size for easy oil changes
• Rear sump location with wet sump type for efficient oil collection
• 19 mounting holes for secure installation
• Compatible with Hyundai Elantra, Soul, Tucson, Tiburon and Kia Sportage, Spectra, Spectra5 models

Product Details and Specifications

The Dorman 264-605 engine oil pan is made from durable aluminum, providing a natural color finish that resists corrosion and heat. Measuring 18 inches in length, 11 inches in width, and 5.75 inches in depth, this oil pan is designed with a baffled interior to minimize oil movement during vehicle operation, ensuring consistent lubrication. It features a rear sump location with a wet sump design, which is common in many Hyundai and Kia engines. The included drain plug with a 14mm thread size allows for straightforward oil drainage during maintenance. This oil pan does not include a crankshaft wiper, dipstick port, pickup, or windage tray, and it does not come with a gasket or installation hardware. The 19 mounting holes ensure a secure fit to the engine block.

Compatible Vehicles and Applications

This engine oil pan is compatible with a range of Hyundai and Kia models, including:

• Hyundai Elantra
• Hyundai Soul
• Hyundai Tucson
• Hyundai Tiburon
• Kia Sportage
• Kia Spectra and Spectra5

It is designed to replace the original oil pan in these vehicles, ensuring proper fit and function.

Common Issues Addressed by This Oil Pan

• Oil leaks caused by damaged or corroded oil pans
• Reduced engine lubrication due to oil pan deformation
• Contamination from cracked or compromised oil pans
• Difficulty draining oil due to missing or faulty drain plugs
• Oil starvation from improper oil pan baffling

Installation Notes and Tips

Installation of the Dorman 264-605 oil pan requires removal of the old oil pan and cleaning of the mounting surface. Since this product does not include a gasket or installation hardware, it is recommended to purchase compatible gaskets and bolts separately. Ensure the drain plug is properly tightened to the specified torque to prevent leaks. The 19 mounting holes should be aligned carefully to avoid cross-threading. Professional installation is advised for best results.

Quality Assurance and Warranty

Dorman engine oil pans are manufactured to meet or exceed OEM specifications for fit, form, and function. While this product does not include a gasket or hardware, it is engineered for durability and corrosion resistance thanks to its aluminum construction. Warranty coverage details should be confirmed with the point of purchase or manufacturer, as they may vary.
