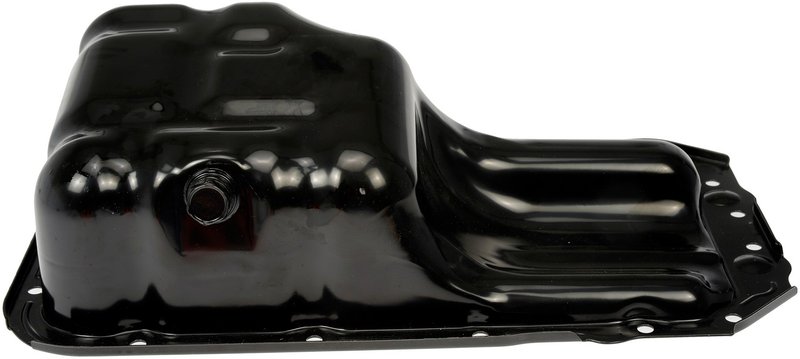

Dorman 264-623 Engine Oil Pan

OE-Style Oil Pan for Mazda 2

This Dorman engine oil pan is a direct replacement for specific Mazda 2 applications from 2011-2015. Built from coated steel with a black finish, it matches the original pan layout for a reliable repair when the factory pan is leaking, damaged, or corroded.

• Fits 2011-2015 Mazda 2
• Dorman 264-623 engine oil pan
• Coated steel construction for OE-style fit and function
• Rear sump, wet sump design
• Oil level sensor port included
• Drain plug and drain plug washer included
• 16 mounting holes for proper installation alignment
• Drain thread size: 14

Detailed Product Overview

Designed for the Mazda 2, Dorman 264-623 follows the original equipment pan shape and mounting layout to support a proper seal and correct oil containment. The pan measures approximately 15 inches long, 9 inches wide, and up to 4.5 inches deep, with a 6-quart capacity and a rear sump configuration. It also includes an oil level sensor port, while omitting a dipstick port, pickup, and gasket or seal.

This part cross-references Spectra Premium MZP16A for the same application.

Common Oil Pan Replacement Reasons

• Oil leaking from the pan or drain area
• Rust, corrosion, or impact damage to the original pan
• Stripped drain threads or a damaged drain plug seat
• Oil level sensor port damage or sealing issues
• Warped mounting flange causing seepage at the pan rail

Installation Notes

Before installation, verify the engine block sealing surface is clean and free of old gasket material. This oil pan does not include a gasket or seal, so the correct sealing components must be sourced separately. Confirm the rear sump layout, oil level sensor port, and 16-hole mounting pattern match the vehicle before assembly. Dorman 264-623 is listed for 2011-2015 Mazda 2 models.

Quality Assurance

Dorman manufactures this oil pan as a precision-engineered OE replacement for specific vehicle applications. The part is built to match original equipment dimensions and mounting points for a direct-fit repair on the Mazda 2.
