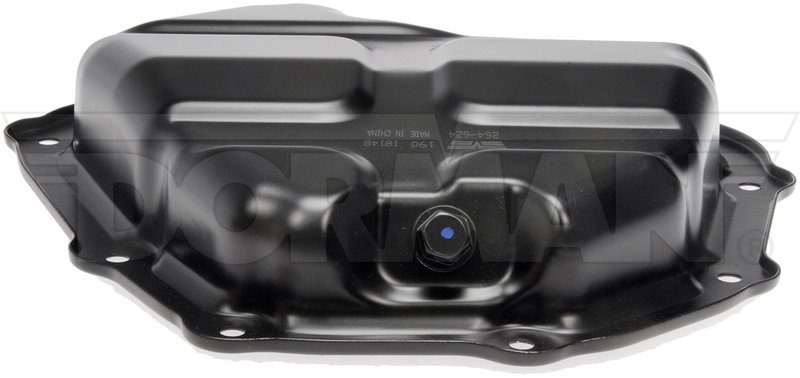

Dorman 264-624 Engine Oil Pan - Lower

Engine Oil Pan Replacement for Nissan

Dorman 264-624 is a steel engine oil pan built to match the original equipment pan on specific Nissan applications. It is made for lower engine mounting locations and includes a drain plug for service convenience.

Compatible With 2011-2017 Nissan Juke, lower, and 2017-2019 Nissan Sentra, lower. This Dorman 264-624 oil pan is shaped for the listed applications and uses a center sump, wet-sump design.

Key Features

• Steel construction with a black finish
• Precision-engineered to match OE pan dimensions and mounting layout
• Center sump, wet-sump configuration
• Drain plug included
• 9 mounting holes for the listed applications
• No gasket or seal included
• No oil level sensor port, dipstick port, or pickup included

Detailed Product Information

This engine oil pan is designed for direct replacement on select Nissan Sentra and Nissan Juke models. The Dorman 264-624 follows the original equipment style for the specified vehicles, with a 12-inch length, 11-inch maximum width, and 2-inch maximum depth. Its 4.75 capacity and steel construction make it a practical replacement for a leaking or damaged pan on the lower engine assembly.

This part cross-references Spectra Premium NSP39A for the same application. The Dorman 264-624 also cross-references OE part number 111101KC0B.

Common Problems This Part Can Address

• Oil leaking from a cracked or rusted pan
• Damaged drain threads or a worn drain plug sealing surface
• Oil loss caused by impact damage to the lower engine pan
• Corrosion on the original steel pan
• Replacement needs after pan removal during engine service

Installation Notes and Tips

Before installation, verify the engine code and lower pan configuration against the vehicle application. Transfer any required components not included with the pan, and replace the gasket or seal separately since it is not included. Clean the mating surfaces thoroughly and inspect the drain plug threads before filling with oil.

Quality Assurance

Dorman manufactures this oil pan as a precision-fit replacement for the listed Nissan applications, with OE-style dimensions and mounting points for proper service replacement.
