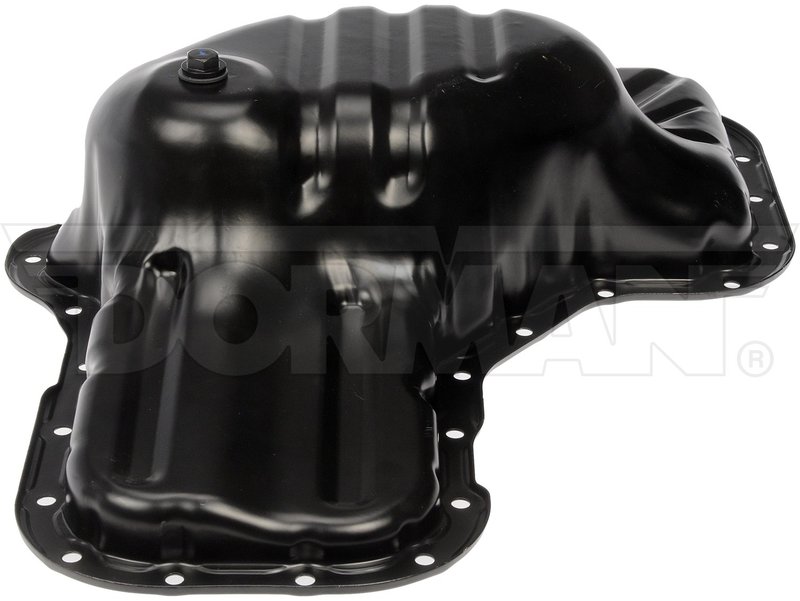

Dorman 264-652 Engine Oil Pan - Lower

OE-Style Engine Oil Pan Replacement

This Dorman engine oil pan is precision-engineered to match the original equipment pan on specific Toyota applications. It is built for a direct replacement on lower engine positions for the Toyota Sequoia and Toyota Tundra, with fitment coverage for 2000-2007 model years.

Part number 264-652 is a steel oil pan finished in black and configured with a center sump, drain plug, and 26 mounting holes for the listed applications.

Key Features

• Steel construction for OE-style durability
• Black finish
• 6.9 capacity
• Center sump, wet sump design
• Drain plug included
• No oil level sensor port, dipstick port, or pickup included
• No gasket or seal included
• Mounting hole quantity: 26
• Drain thread size: 12

Detailed Description

Dorman 264-652 is an engine oil pan replacement for select Toyota Sequoia and Toyota Tundra models. It is shaped to match the original equipment pan for the listed vehicles, helping restore proper oil containment at the lower engine position. The steel construction and OE-style dimensions support a direct-fit repair where the original pan is damaged, rusted, or leaking.

This part cross-references Toyota 121020F010 and Spectra Premium TOP23A for the same application. Compatible With 2001-2007 Toyota Sequoia, lower, and 2000-2006 Toyota Tundra, lower.

Common Repair Reasons

• Oil pan leak at the lower engine area
• Corrosion or physical damage to the original pan
• Damaged drain plug threads or sealing surface
• Oil seepage from a worn or warped pan
• Replacement after impact-related pan failure

Installation Notes and Tips

Verify engine application and lower pan configuration before installation. Transfer any required components not included with the pan, and replace the gasket or seal separately if needed. Clean the mating surfaces thoroughly and inspect the drain plug threads and sealing area before filling with oil.

Quality Assurance

This Dorman oil pan is engineered to match original equipment fit and function for the listed Toyota applications. It is built as a direct replacement part for 2000-2007 Toyota Tundra and 2001-2007 Toyota Sequoia lower engine applications.
