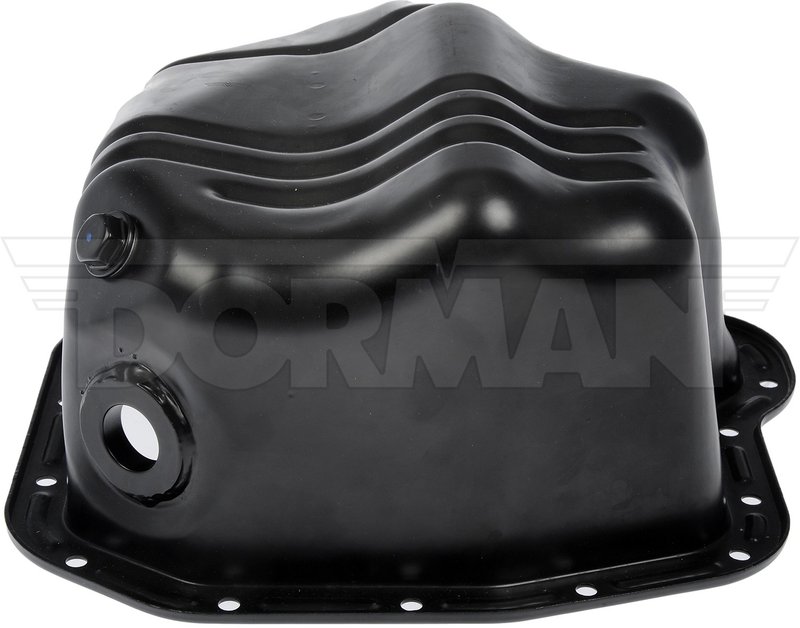

Dorman 264-698 Engine Oil Pan

Durable Steel Engine Oil Pan for Chevrolet and GMC Trucks

The Dorman 264-698 engine oil pan is designed to provide reliable oil containment and protection for heavy-duty Chevrolet and GMC trucks. Engineered from steel with a black finish, this oil pan is built to meet the demands of Express, Savana, Sierra, and Silverado 2500 and 3500 HD models.

• Constructed from durable steel material for long-lasting performance
• Oil capacity of 10 quarts to support heavy-duty engine lubrication
• Includes a drain plug with 9/16x18 thread size for easy oil changes
• Equipped with an oil level sensor port for accurate monitoring
• Designed with 18 mounting holes for secure installation
• Rear sump location with a wet sump type for efficient oil collection
• Compatible with Chevrolet Express 2500/3500, GMC Savana 2500/3500, Sierra 2500 HD/3500 HD, and Silverado 2500 HD/3500 HD

Product Details and Specifications

The Dorman 264-698 engine oil pan measures 13.5 inches in length, 12 inches in maximum width, and 5.5 inches in maximum depth. Its black steel construction offers durability and resistance to corrosion. This oil pan features a rear sump design with a wet sump type, which is common for the specified heavy-duty truck models. It includes a drain plug to facilitate routine oil changes and an oil level sensor port to maintain proper oil monitoring. Note that this oil pan does not include a pickup, crankshaft wiper, dipstick port, gasket, or installation hardware.

Compatible Vehicles and Applications

This engine oil pan is compatible with a range of Chevrolet and GMC heavy-duty trucks, including:

• Chevrolet Express 2500 and 3500
• GMC Savana 2500 and 3500
• Chevrolet Silverado 2500 HD and 3500 HD
• GMC Sierra 2500 HD and 3500 HD

It is designed specifically for these models to ensure proper fitment and function.

Common Issues Addressed by This Oil Pan

• Oil leaks caused by damaged or corroded oil pans
• Difficulty draining engine oil due to missing or faulty drain plugs
• Inaccurate oil level readings from malfunctioning sensor ports
• Structural damage from road debris or impact
• Replacement of worn or rusted factory oil pans

Installation Notes and Tips

Installation requires removal of the existing oil pan and proper cleaning of the mounting surface. Since this product does not include a gasket or installation hardware, ensure you have the correct gasket and bolts before beginning installation. Tighten mounting bolts evenly to the manufacturer’s torque specifications to prevent leaks. The included drain plug simplifies oil changes once installed. Verify the oil level sensor port connections are secure to maintain accurate oil monitoring.

Quality Assurance and Warranty

Dorman engine oil pans are manufactured to meet or exceed OEM standards for fit, form, and function. The 264-698 part number undergoes quality inspections to ensure durability and reliability in heavy-duty applications. While specific warranty details are not provided here, Dorman typically offers limited warranties covering defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
