OE Quality
60-Day Returns

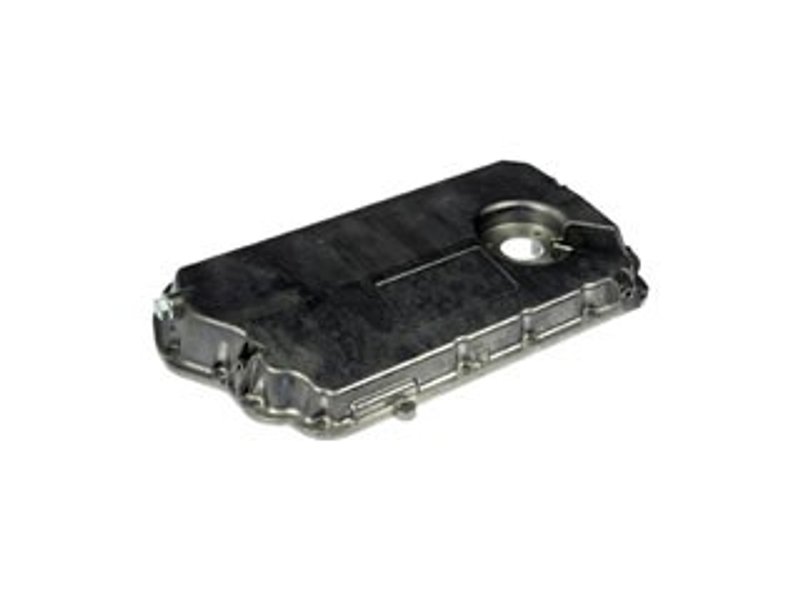

Dorman 264-716 Engine Oil Pan - Lower
Engine Oil Pan Replacement
This Dorman engine oil pan is a direct replacement for specific Audi applications with a leaking lower oil pan. Precision-engineered to match the original equipment pan, Dorman 264-716 is built for a reliable seal and proper fit on select Audi A4, A4 Quattro, A6, and A6 Quattro models.
- Direct replacement engine oil pan for select Audi vehicles
- Aluminum construction with a natural finish
- Front sump, wet sump design
- Drain plug included
- 19 mounting holes for OE-style installation
- Matches original equipment dimensions for the listed applications
Detailed Product Overview
Built for the lower engine position, this oil pan is formed from aluminum and measures 17.5 inches long, 11.02 inches wide, and 2.17 inches deep. The front sump layout and wet sump configuration match the factory-style oil control setup used on the supported Audi platforms. Dorman 264-716 also includes a drain plug and uses a 14 mm drain thread size.
Compatible With 2002-2006 Audi A4 Quattro, lower; 2002-2005 Audi A4, lower; 2002-2004 Audi A6, lower; and 2002-2004 Audi A6 Quattro, lower. This part cross-references Spectra Premium VWP27A and URO 06C103604C for the same application.
Common Problems This Part Can Address
- Engine oil leaking from a cracked or corroded oil pan
- Damaged drain threads or a stripped drain plug area
- Oil seepage from an improperly sealing lower pan
- Replacement needs after impact damage to the underside of the engine
- Restoration of proper oil containment on the listed Audi models
Installation Notes and Tips
Inspect the mating surface, fasteners, and sealing components before installation. This oil pan does not include a gasket or seal, so use the correct sealing parts specified for the vehicle. Verify drain plug thread engagement and confirm the pan aligns with the 19 mounting holes before tightening to factory specifications.
Quality Assurance
Dorman manufactures this oil pan as an OE-style replacement for the listed Audi fitments, with dimensions and mounting points engineered to match the original equipment design. Part number 264-716 is intended for direct replacement use on the specified applications.
| Brand | Dorman |
|---|---|
| Part Number | 264-716 |
| Material | Aluminum |
| Length | 17.5 |
| Maximum Width | 11.02 |
| Color | Natural |
| Baffled | No |
| Crank Shaft Wiper Included | No |
| Maximum Depth | 2.17 |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Kick Out Type Pan | No |
| Pickup Included | No |
| Sump Location | Front |
| Sump Type | Wet |
| Windage Tray Included | No |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 19 |
| Drain Thread Size | 14 |
| Installation Hardware Included | No |
| Package Contents | Oil pan |
This part fits 15 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Audi | A4 Quattro | 3.0L | V6 | Lower | |
| 2005 | Audi | A4 | 3.0L | V6 | Lower | |
| 2005 | Audi | A4 Quattro | 3.0L | V6 | Lower | |
| 2004 | Audi | A4 | 3.0L | V6 | Lower | |
| 2004 | Audi | A4 Quattro | 3.0L | V6 | Lower | |
| 2004 | Audi | A6 | 3.0L | V6 | Lower | |
| 2004 | Audi | A6 Quattro | 3.0L | V6 | Lower | |
| 2003 | Audi | A4 | 3.0L | V6 | Lower | |
| 2003 | Audi | A4 Quattro | 3.0L | V6 | Lower | |
| 2003 | Audi | A6 | 3.0L | V6 | Lower | |
| 2003 | Audi | A6 Quattro | 3.0L | V6 | Lower | |
| 2002 | Audi | A4 | 3.0L | V6 | Lower | |
| 2002 | Audi | A4 Quattro | 3.0L | V6 | Lower | |
| 2002 | Audi | A6 | 3.0L | V6 | Lower | |
| 2002 | Audi | A6 Quattro | 3.0L | V6 | Lower |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
