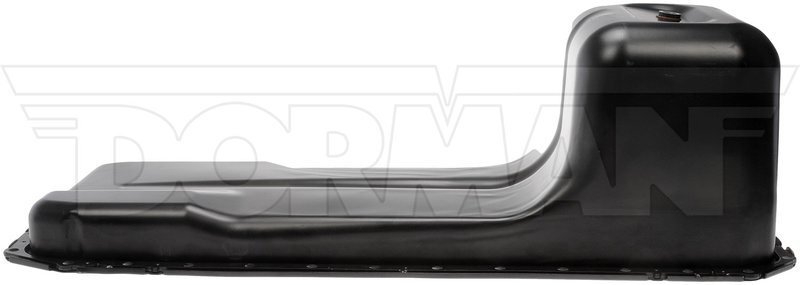

Dorman 264-860 Engine Oil Pan

OE-Style Oil Pan Replacement

Dorman 264-860 is a steel engine oil pan built to match the original equipment pan on select Ram heavy-duty trucks. It is shaped for the 2013-2024 Ram 2500 and 2013-2024 Ram 3500 applications, giving buyers a direct replacement option for a leaking or damaged oil pan.

With a black finish, rear sump layout, and included drain plug, this oil pan is built for service on Ram 2500 and Ram 3500 diesel and gas engine applications that use the listed OE-style configuration.

Key Features

• Steel construction for durable engine oil containment
• OE-matched replacement design for specific Ram truck applications
• Rear sump, wet sump configuration
• Black finish
• Drain plug included
• 32 mounting holes for proper pan attachment
• M18x1.5 drain thread size
• Part number 264-860 for easy identification

Detailed Product Information

This Dorman engine oil pan is engineered as a direct replacement for select Ram 2500 and Ram 3500 models from 2013 through 2024. The steel pan measures 31.5 inches long, 13 inches wide, and 9.5 inches deep, with a 12-quart capacity and a rear sump layout. It does not include a gasket or seal, oil level sensor port, dipstick port, pickup, or windage tray, so existing vehicle-specific components should be verified before installation. Cross-reference part numbers include 5402443 and 68210081AA for the same application.

Common Problems This Part Can Address

• Engine oil leaks from a rusted, cracked, or damaged oil pan
• Oil loss caused by impact damage to the pan body
• Drain plug sealing issues related to a worn or damaged pan
• Replacement needs after corrosion on high-mileage Ram 2500 and Ram 3500 trucks

Installation Notes and Tips

Confirm the engine oil pan shape, sump location, and drain thread size before installation. Because the gasket or seal is not included, use the correct sealing components for the vehicle application. Clean the mounting surface thoroughly and inspect the oil pickup area and surrounding engine components for damage before refilling with oil. This part number 264-860 is intended for 2013-2024 Ram 2500 and 2013-2024 Ram 3500 applications.

Quality Assurance

Dorman designs this oil pan to match original equipment fit and function on the listed Ram truck applications. The part is built from steel and supplied as an OE-style replacement for service repair use.
