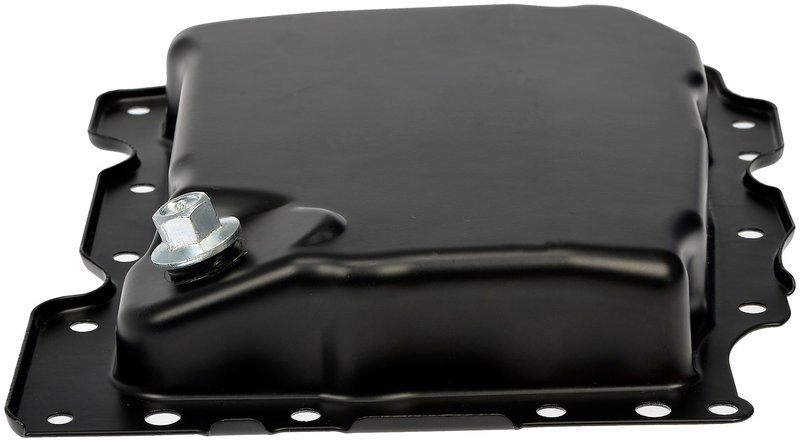

Dorman 264-880 Engine Oil Pan - Lower

OE-Style Engine Oil Pan Replacement

Dorman 264-880 is a precision-engineered engine oil pan for specific Chevrolet, GMC, Buick, and Cadillac applications. It is built to match the original equipment pan shape and mounting layout for a direct replacement on supported vehicles, including Camaro, Colorado, Malibu, Canyon, and Equinox models.

This aluminum oil pan is designed for the lower engine position and uses a wet sump layout with a front sump location. It includes a drain plug and features a natural finish with a black color designation in the catalog data. Dorman 264-880 is a practical choice when the original pan is damaged, leaking, or no longer sealing correctly.

• Aluminum construction for OE-style fit and function
• Fits lower engine applications with front sump, wet sump design
• Drain plug included with M12 x 1.25 drain thread size
• 18 mounting holes for the specified OE-style installation pattern
• No gasket or seal included
• No oil level sensor port, dipstick port, pickup, windage tray, or baffle

Detailed Product Information

Dorman 264-880 is an engine oil pan replacement engineered to match the original equipment pan on select 2013-2023 vehicles. It cross-references Spectra Premium GMP130A and is listed for applications such as 2016-2023 Chevrolet Camaro, 2016-2022 Chevrolet Colorado, 2018-2020 Chevrolet Equinox, 2017-2021 GMC Acadia, and 2018-2021 GMC Terrain. Additional coverage includes Buick Regal, Regal Sportback, Regal TourX, LaCrosse, Envision, Cadillac ATS, CTS, CT6, and Chevrolet Malibu, Impala, Traverse, Blazer, and Malibu Limited.

Use this part when servicing a leaking oil pan, replacing a damaged pan flange, or restoring proper engine oil containment after impact or corrosion. The aluminum design and OE-style mounting pattern help support a clean replacement on the listed Chevrolet Malibu oil pan, GMC Canyon oil pan, and Buick Regal oil pan applications.

Common Problems This Part Can Address

• Engine oil leaking from the pan or drain area
• Damaged or warped oil pan flange
• Corrosion or physical impact to the original pan
• Failed drain plug sealing surface
• Oil loss from a cracked or punctured pan

Installation Notes and Tips

Confirm vehicle fitment by year, make, model, and engine configuration before installation. Transfer any required components from the original setup if your vehicle uses them, and replace the sealing gasket or seal separately because it is not included. Clean the mating surfaces thoroughly, inspect the drain plug threads, and torque fasteners to the vehicle manufacturer’s specification during installation.

Quality Assurance

Dorman manufactures replacement parts engineered to match OE fit and function on specific applications. Part number 264-880 is built for direct replacement use on the listed vehicles and is supported by Dorman’s replacement-parts engineering approach.
