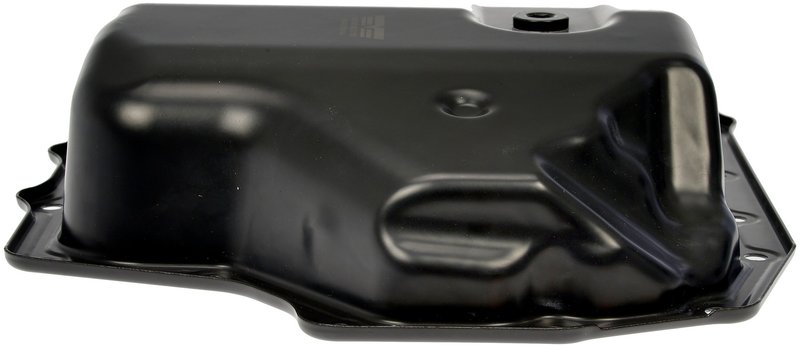

Dorman 265-892 Transmission Oil Pan
| Brand | Dorman 265-892 |
|---|---|
| Material | Acero |
| Material | Steel |
| Capacity | 6.4 |
| Length | 14.1 |
| Maximum Width | 10.51 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Configuration | One-piece |
| Configuration | Una sola pieza |
| Thickness | 1.5 |
| Maximum Depth | 2.64 |
| Dipstick Port | No |
| Dipstick Port | Non |
| Drain Plug Included | Oui |
| Drain Plug Included | Sí |
| Drain Plug Included | Yes |
| Minimum Depth | 2.64 |
| Width | 10.51 |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | No |
| Gasket Or Seal Included | Non |
| Mounting Hole Quantity | 16 |
| Gasket Configuration | One-piece |
| Gasket Configuration | Una sola pieza |
| Mounting Hole Diameter | 7.2 |
| Contenidos del paquete | 1 bandeja de transmisión |
| Fits | Mazda · 39 vehicles |
Direct replacement. Fits like the original transmission pan for straightforward service.
Steel construction. Provides durable, leak-free performance in demanding conditions.
Drain plug included. Makes fluid changes cleaner and more convenient.
Cross-references FZ012151X, FZ012151XA and FZ012151XB for the same application. See all 4.
Dorman 265-892 Transmission Oil Pan
Dorman 265-892 is a direct replacement transmission oil pan for damaged original equipment pans. Built from steel with a black finish, it is designed for reliable, leak-free service on select Mazda applications, including Mazda 3, Mazda 3 Sport, Mazda 6, CX-3, CX-5, and CX-9.
- Steel construction for durable transmission service
- Black finish for a clean OE-style appearance
- One-piece configuration
- Drain plug included for service convenience
- 14 mm drain thread diameter
- 16 mounting holes with 7.2 mm mounting hole diameter
- Capacity: 6.4
- Dimensions: 14.1 in. length, 10.51 in. width, 2.64 in. maximum depth
Detailed Product Overview
This transmission oil pan is engineered as a standard replacement for the original pan on select Mazda vehicles. It uses a steel body and one-piece design to restore the transmission fluid reservoir after corrosion, impact damage, or leakage at the pan itself. The Dorman 265-892 transmission pan includes a drain plug and does not include a gasket or seal, so the sealing components should be selected to match the vehicle’s service requirements. This part cross-references Monroe Shocks & Struts (e.g., FZ012151X, FZA12151X) for the same application.
What It Helps Fix
- Transmission fluid leaks from a damaged pan
- Rust or corrosion on the original pan
- Impact damage from road debris or underbody contact
- Service issues related to a worn drain plug area
- Replacement needs after pan removal during transmission maintenance
Installation Notes and Fitment
Fits 2014-2020 Mazda 6, N/A. Fits 2016-2020 Mazda CX-3, N/A. Fits 2013-2020 Mazda CX-5, N/A. Fits 2016-2020 Mazda CX-9, N/A. Fits 2012-2018 Mazda 3, N/A. Fits 2012-2018 Mazda 3 Sport, N/A.
Before installation, verify pan dimensions, mounting hole count, and drain thread size against the removed part. Clean the mating surface thoroughly and inspect the transmission sealing surface for damage before installing the replacement pan. Because mounting hardware and gasket or seal are not included, reuse or replace those components as required by the service procedure.
Quality Assurance
Dorman manufactures replacement hard parts to match original equipment fit and function for specific vehicle applications. Part number 265-892 is built for direct replacement use on the listed Mazda models and is intended to restore dependable transmission pan sealing after the original part has failed.
| Year | Make | Model | Transmission | Notes |
|---|---|---|---|---|
| 2020 | Mazda | 6 | Automatic | — |
| 2020 | Mazda | CX-3 | Automatic | — |
| 2020 | Mazda | CX-5 | Automatic | — |
| 2020 | Mazda | CX-9 | Automatic | — |
| 2019 | Mazda | 6 | Automatic | — |
| 2019 | Mazda | CX-3 | Automatic | — |
| 2019 | Mazda | CX-5 | Automatic | — |
| 2019 | Mazda | CX-9 | Automatic | — |
| 2018 | Mazda | 3 | Automatic | — |
| 2018 | Mazda | 3 Sport | Automatic | — |
| 2018 | Mazda | 6 | Automatic | — |
| 2018 | Mazda | CX-3 | Automatic | — |
| 2018 | Mazda | CX-5 | Automatic | — |
| 2018 | Mazda | CX-9 | Automatic | — |
| 2017 | Mazda | 3 | Automatic | — |
| 2017 | Mazda | 3 Sport | Automatic | — |
| 2017 | Mazda | 6 | Automatic | — |
| 2017 | Mazda | CX-3 | Automatic | — |
| 2017 | Mazda | CX-5 | Automatic | — |
| 2017 | Mazda | CX-9 | Automatic | — |
| 2016 | Mazda | 3 | Automatic | — |
| 2016 | Mazda | 3 Sport | Automatic | — |
| 2016 | Mazda | 6 | Automatic | — |
| 2016 | Mazda | CX-3 | Automatic | — |
| 2016 | Mazda | CX-5 | Automatic | — |
| 2016 | Mazda | CX-9 | Automatic | — |
| 2015 | Mazda | 3 | Automatic | — |
| 2015 | Mazda | 3 Sport | Automatic | — |
| 2015 | Mazda | 6 | Automatic | — |
| 2015 | Mazda | CX-5 | Automatic | — |
| 2014 | Mazda | 3 | Automatic | — |
| 2014 | Mazda | 3 Sport | Automatic | — |
| 2014 | Mazda | 6 | Automatic | — |
| 2014 | Mazda | CX-5 | Automatic | — |
| 2013 | Mazda | 3 | Automatic | — |
| 2013 | Mazda | 3 Sport | Automatic | — |
| 2013 | Mazda | CX-5 | Automatic | — |
| 2012 | Mazda | 3 | Automatic | — |
| 2012 | Mazda | 3 Sport | Automatic | — |
