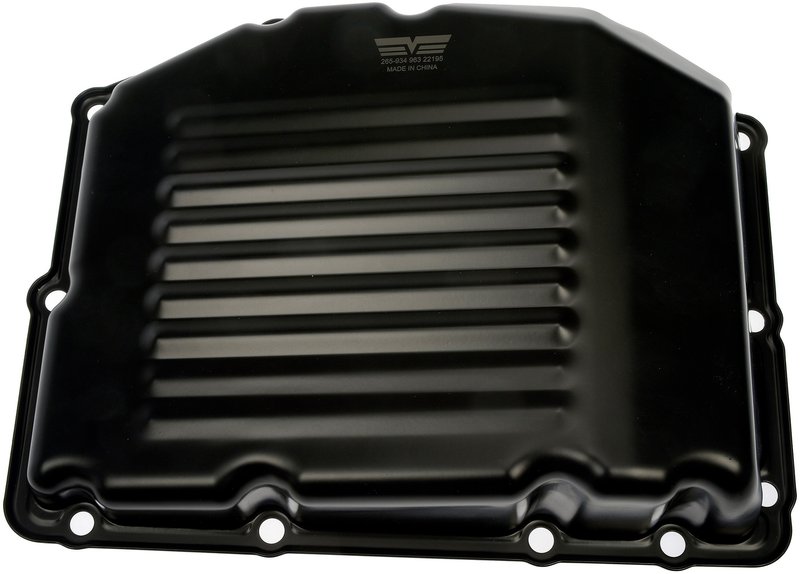

Dorman 265-934 Transmission Oil Pan
| Brand | Dorman 265-934 |
|---|---|
| Material | Acero |
| Material | Steel |
| Capacity | 7.4 |
| Length | 297 |
| Maximum Width | 230 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Configuration | Multi piece |
| Configuration | Múltiples piezas |
| Thickness | 5.5 |
| Maximum Depth | 62 |
| Dipstick Port | No |
| Dipstick Port | Non |
| Drain Plug Included | No |
| Drain Plug Included | Non |
| Minimum Depth | 7.2 |
| Width | 230 |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Grade Type | Performance |
| Grade Type | Rendimiento |
| Gasket Or Seal Included | No |
| Gasket Or Seal Included | Non |
| Mounting Hole Quantity | 12 |
| Gasket Configuration | Multi piece |
| Gasket Configuration | Múltiples piezas |
| Mounting Hole Diameter | 8.7 |
| Contenidos del paquete | 1 cubierta del lado de la transmisión |
| Diámetro de la rosca del drenaje | 19,2 mm |
| Fits | Ford, Lincoln, Mazda, Mercury, and Volvo · 84 vehicles |
Direct replacement. Fits like the original transmission oil pan for straightforward service.
Steel construction. Provides durable, leak-free performance in demanding conditions.
Multi-piece design. Helps simplify sealing for dependable transmission service.
Cross-references Spectra Premium TP0934, 5G1Z7G004AA and 30751645 for the same application. See all 4.
Dorman 265-934 Transmission Oil Pan
Dorman 265-934 is a direct replacement transmission oil pan for vehicles that need a damaged original equipment pan replaced with a steel unit built for reliable, leak-free service. It is designed for select Ford, Lincoln, Mazda, Mercury, and Volvo applications, including Ford Fusion, Mazda 6, and Volvo XC60 fitments.
- Steel construction for strength and durability
- Black finish
- Performance grade replacement part
- Multi-piece gasket configuration
- 12 mounting holes with 8.7 mm mounting hole diameter
- Drain thread diameter: 19.2 mm
- Capacity: 7.4
- Dimensions: 297 mm length, 230 mm width, 62 mm maximum depth
Direct Replacement Fitment
This transmission oil pan is built as a direct replacement for the original pan on select applications. It fits 2006-2012 Ford Fusion, 2007-2012 Lincoln MKZ, 2005-2013 Mazda 6, 2007-2012 Mazda CX-7, 2007-2015 Mazda CX-9, 2005-2007 Ford Five Hundred, 2005-2007 Mercury Montego, 2006-2009 Mercury Milan, 2006 Lincoln Zephyr, 2007-2015 Volvo S80, 2008-2010 Volvo V70, 2008-2016 Volvo XC70, 2010-2016 Volvo XC60, 2011-2016 Volvo S60, and 2015-2016 Volvo V60. Dorman 265-934 also cross-references Spectra Premium TP0934 for the same application.
What This Transmission Pan Helps Address
- Cracked or dented transmission oil pan
- Fluid leaks from a damaged pan surface
- Corrosion or wear on the original pan
- Poor sealing caused by an aging OE pan
- Replacement needs after transmission service damage
Installation Notes and Tips
Verify pan dimensions, mounting hole count, and drain thread diameter before installation. This part does not include a drain plug, dipstick port, gasket or seal, or mounting hardware. Use the correct gasket configuration for the application and inspect the transmission sealing surface before installing the replacement pan.
Quality Assurance
Dorman designs this replacement transmission oil pan as a direct-fit service part made from quality materials for dependable sealing and long-term use. Part number 265-934 is intended to restore the transmission side cover on the listed Ford, Lincoln, Mazda, Mercury, and Volvo vehicles.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Volvo | S60 | — | Automatic | 2.5L | L5 | — |
| 2016 | Volvo | V60 | — | Automatic | 3.0L | L6 | — |
| 2016 | Volvo | XC60 | — | Automatic | 2.5L | L5 | — |
| 2016 | Volvo | XC70 | — | Automatic | 2.5L | L5 | — |
| 2015 | Mazda | CX-9 | — | Automatic | — | — | — |
| 2015 | Volvo | S60 | — | Automatic | 2.5L | L5 | — |
| 2015 | Volvo | S80 | — | Automatic | 3.0L | L6 | — |
| 2015 | Volvo | V60 | — | Automatic | 2.5L | L5 | — |
| 2015 | Volvo | XC60 | — | Automatic | 2.5L | L5 | — |
| 2015 | Volvo | XC70 | — | Automatic | 3.2L | L6 | — |
| 2014 | Mazda | CX-9 | — | Automatic | — | — | — |
| 2014 | Volvo | S60 | — | Automatic | 2.5L | L5 | — |
| 2014 | Volvo | S80 | — | Automatic | 3.2L | L6 | — |
| 2014 | Volvo | XC60 | — | Automatic | 3.2L | L6 | — |
| 2014 | Volvo | XC70 | — | Automatic | 3.2L | L6 | — |
| 2013 | Mazda | 6 | — | Automatic | 3.7L | V6 | — |
| 2013 | Mazda | CX-9 | — | Automatic | — | — | — |
| 2013 | Volvo | S60 | — | Automatic | 2.5L | L5 | — |
| 2013 | Volvo | S80 | — | Automatic | 3.2L | L6 | — |
| 2013 | Volvo | XC60 | — | Automatic | 3.2L | L6 | — |
| 2013 | Volvo | XC70 | — | Automatic | 3.2L | L6 | — |
| 2012 | Ford | Fusion | — | — | — | — | — |
| 2012 | Lincoln | MKZ | — | — | — | — | — |
| 2012 | Mazda | 6 | — | Automatic | 3.7L | V6 | — |
| 2012 | Mazda | CX-7 | — | Automatic | — | — | — |
| 2012 | Mazda | CX-9 | — | Automatic | — | — | — |
| 2012 | Volvo | S60 | — | Automatic | 2.5L | L5 | — |
| 2012 | Volvo | S80 | — | Automatic | 3.2L | L6 | — |
| 2012 | Volvo | XC60 | — | Automatic | 3.2L | L6 | — |
| 2012 | Volvo | XC70 | — | Automatic | 3.2L | L6 | — |
| 2011 | Ford | Fusion | — | — | — | — | — |
| 2011 | Lincoln | MKZ | — | — | — | — | — |
| 2011 | Mazda | 6 | — | Automatic | 3.7L | V6 | — |
| 2011 | Mazda | CX-7 | — | Automatic | — | — | — |
| 2011 | Mazda | CX-9 | — | Automatic | — | — | — |
| 2011 | Volvo | S60 | — | Automatic | 3.0L | L6 | — |
| 2011 | Volvo | S80 | — | Automatic | 3.2L | L6 | — |
| 2011 | Volvo | XC60 | — | Automatic | 3.2L | L6 | — |
| 2011 | Volvo | XC70 | — | Automatic | 3.2L | L6 | — |
| 2010 | Ford | Fusion | — | — | — | — | — |
| 2010 | Lincoln | MKZ | — | — | — | — | — |
| 2010 | Mazda | 6 | — | Automatic | 3.7L | V6 | — |
| 2010 | Mazda | CX-7 | — | Automatic | — | — | — |
| 2010 | Mazda | CX-9 | — | Automatic | — | — | — |
| 2010 | Volvo | S80 | — | Automatic | 3.2L | L6 | — |
| 2010 | Volvo | V70 | — | Automatic | 3.2L | L6 | — |
| 2010 | Volvo | XC60 | — | Automatic | 3.2L | L6 | — |
| 2010 | Volvo | XC70 | — | Automatic | 3.2L | L6 | — |
| 2009 | Ford | Fusion | — | — | — | — | — |
| 2009 | Lincoln | MKZ | — | — | — | — | — |
| 2009 | Mazda | 6 | — | Automatic | 3.7L | V6 | — |
| 2009 | Mazda | CX-7 | — | Automatic | — | — | — |
| 2009 | Mazda | CX-9 | — | Automatic | — | — | — |
| 2009 | Mercury | Milan | — | — | — | — | — |
| 2009 | Volvo | S80 | — | Automatic | 3.2L | L6 | — |
| 2009 | Volvo | V70 | — | Automatic | 3.2L | L6 | — |
| 2009 | Volvo | XC70 | — | Automatic | 3.2L | L6 | — |
| 2008 | Ford | Fusion | — | — | — | — | — |
| 2008 | Lincoln | MKZ | — | — | — | — | — |
| 2008 | Mazda | 6 | — | Automatic | 3.0L | V6 | — |
| 2008 | Mazda | CX-7 | — | Automatic | — | — | — |
| 2008 | Mazda | CX-9 | — | Automatic | — | — | — |
| 2008 | Mercury | Milan | — | — | — | — | — |
| 2008 | Volvo | S80 | — | Automatic | 3.2L | L6 | — |
| 2008 | Volvo | V70 | — | Automatic | 3.2L | L6 | — |
| 2008 | Volvo | XC70 | — | Automatic | 3.2L | L6 | — |
| 2007 | Ford | Five Hundred | FWD | — | — | — | — |
| 2007 | Ford | Fusion | — | — | — | — | — |
| 2007 | Lincoln | MKZ | — | — | — | — | — |
| 2007 | Mazda | 6 | — | Automatic | 3.0L | V6 | — |
| 2007 | Mazda | CX-7 | — | Automatic | — | — | — |
| 2007 | Mazda | CX-9 | — | Automatic | — | — | — |
| 2007 | Mercury | Milan | — | — | — | — | — |
| 2007 | Mercury | Montego | FWD | — | — | — | — |
| 2007 | Volvo | S80 | — | Automatic | 3.2L | L6 | — |
| 2006 | Ford | Five Hundred | FWD | — | — | — | — |
| 2006 | Ford | Fusion | — | — | — | — | — |
| 2006 | Lincoln | Zephyr | — | — | — | — | — |
| 2006 | Mazda | 6 | — | Automatic | 3.0L | V6 | — |
| 2006 | Mercury | Milan | — | — | — | — | — |
| 2006 | Mercury | Montego | FWD | — | — | — | — |
| 2005 | Ford | Five Hundred | FWD | — | — | — | — |
| 2005 | Mazda | 6 | — | Automatic | 3.0L | V6 | — |
| 2005 | Mercury | Montego | FWD | — | — | — | — |
